SX70-DTMNS (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

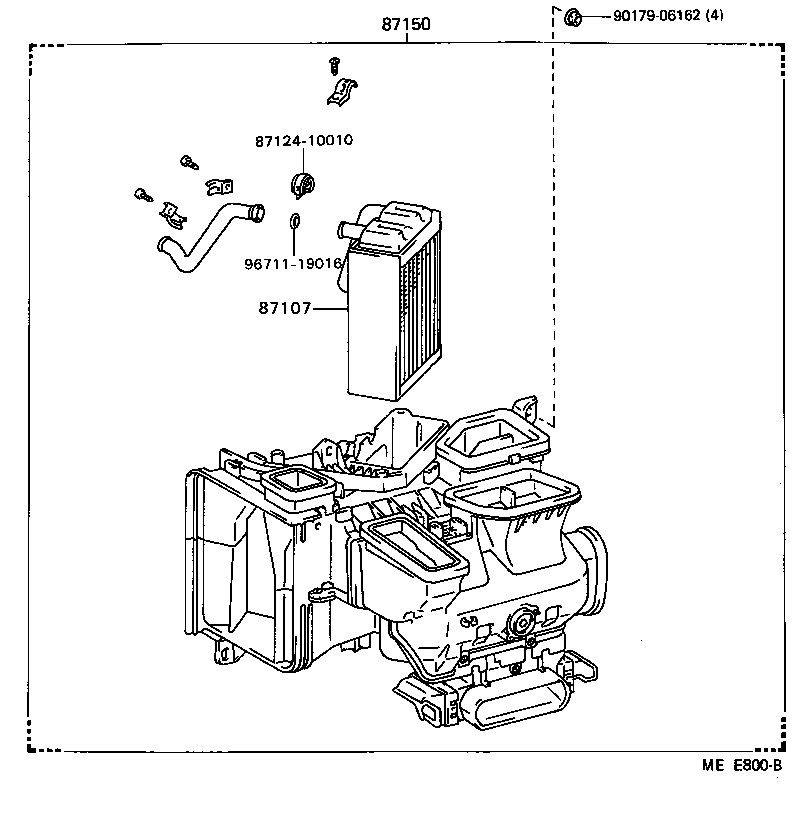

ILLUST NO. 2 OF 2(8408- )GT,KYO,XL

Click highlighted areas on diagram

GT-S PACKAGE

diagram 87107 8712410010 87150 9017906162 9671119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22130

GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL

 1
87150 - RADIATOR ASSY, HEATER
87150-22280

GX71,LX70,SX70..SXL,XG,XL

 1
87150-22281

LX70,SX70..XL

 1
Common parts
87124-10010
90179-06162
96711-19016

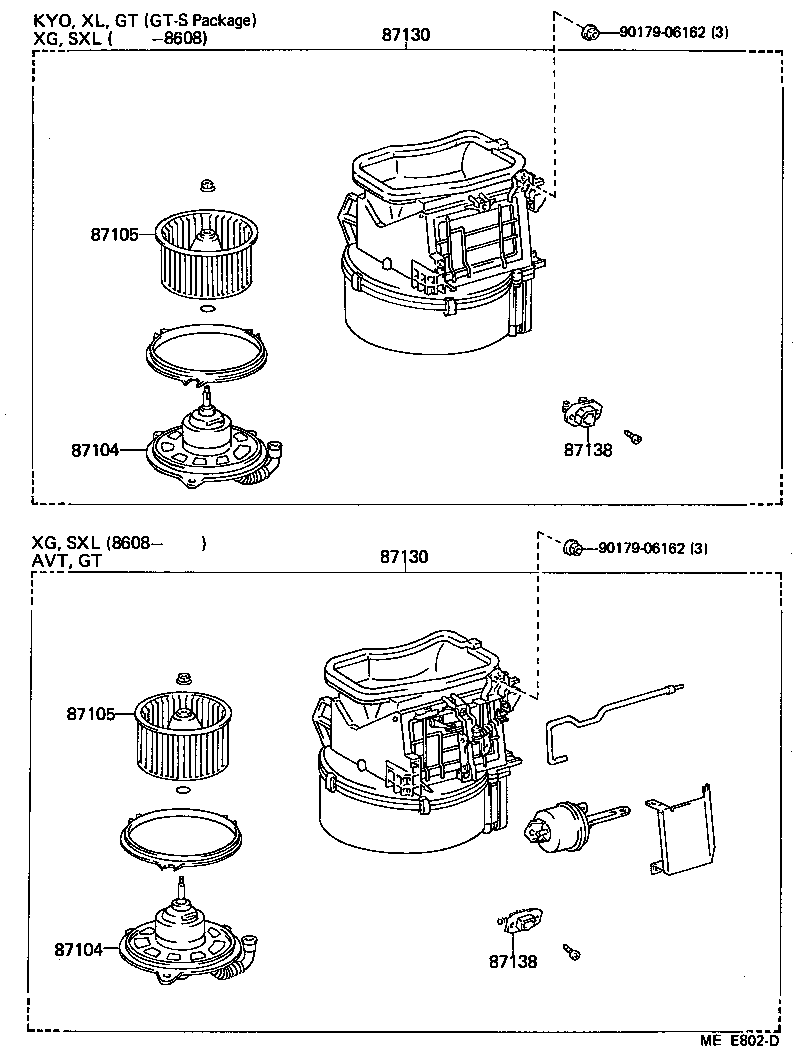

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 87104 87104 87105 87105 87130 87130 87138 87138 9017906162 9017906162
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22120

GX71,LX70,MX71,SX70,YX70

 1
87104-22140

GX71,LX70,MX71,SX70,YX70

 1
87104-22150

GX71,LX70,SX70,YX72

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22120

GX71,LX70,MX71,SX70,YX70

 1
87104-22140

GX71,LX70,MX71,SX70,YX70

 1
87104-22150

GX71,LX70,SX70,YX72

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

GX71,LX70,MX71,SX70,YX7#

 1
87105-22050

GX71,LX70,MX71,SX70,YX70

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

GX71,LX70,MX71,SX70,YX7#

 1
87105-22050

GX71,LX70,MX71,SX70,YX70

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22081

LX70,SX70,YX72..KYO,XL

 1
87130-22080

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22081

LX70,SX70,YX72..KYO,XL

 1
87130-22080

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
87138 - RESISTOR, HEATER BLOWER
87138-32010

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
87138-22050

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

 1
87138 - RESISTOR, HEATER BLOWER
87138-32010

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

 1
87138-22050

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

 1
Common parts
90179-06162
