SX70-DTMNS (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5F

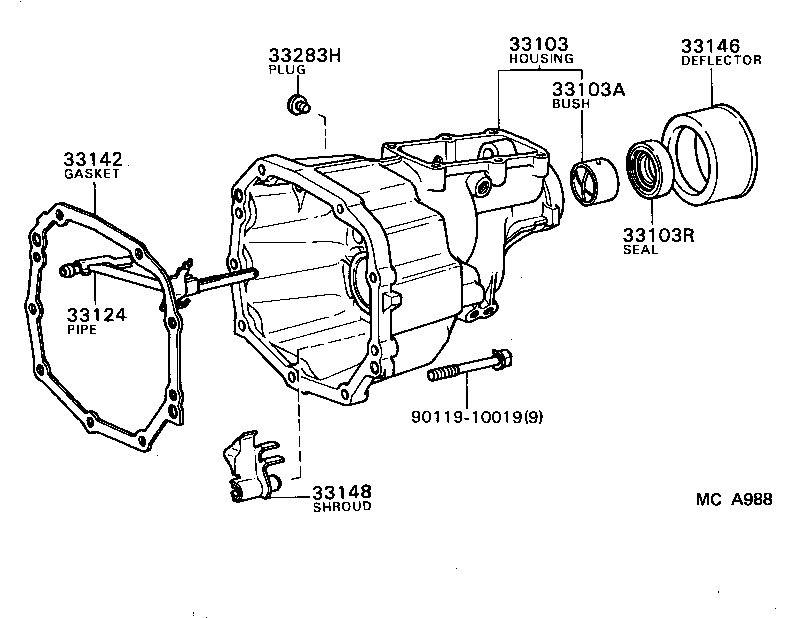

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33124 33142 33146 33148 33283H 9011910019
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-22090

LX70,SX70..5F..(XG,XL)

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-73105

GX71,LX70,SX70,YX70..5F

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38040

GX71,LX70,SX70,YX7#..5F

 1
33124 - PIPE, OIL RECEIVER(MTM)
33106-22010

GX71,LX70,SX70,YX7#..5F

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-22010

GX71,LX70,SX70,YX7#..5F

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

GX71,LX70,SX70,YX7#..5F

 1
33148 - SHROUD, GEAR, NO.1
33148-22010

GX71,LX70,SX70,YX7#..5F

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-10065

GX71,LX70,SX70,YX7#..5F

 2
Common parts
90119-10019
