SX70-DTMES (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

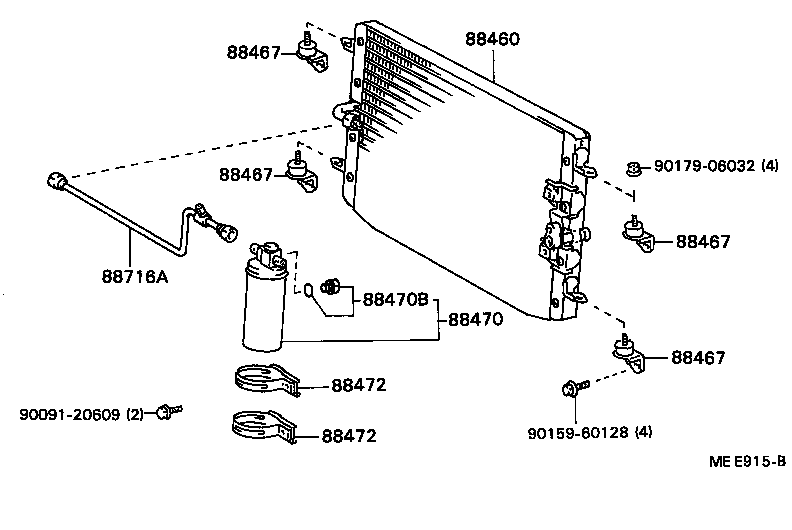

ILLUST NO. 1 OF 2(8408- )GX71,SX70..KYO,SXL,XG,XL

Click highlighted areas on diagram

diagram 88460 88467 88467 88467 88467 88470 88470B 88472 88472 88716A 9009120609 9015960128 9017906032
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-22271

GX71,SX70..SXL,XG,XL

 1
88460-22270

GX71,MX71,SX70

 1
88460-22271

GX71,MX71,SX70..CBR,EFI,TBO,TWC

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX71,LX70,MX71,SX70,YX7#

 4
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX71,LX70,MX71,SX70,YX7#

 1
88470B - BOLT, FUSE
88475-12020

GX71,LX70,MX71,SX70,YX7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX71,LX70,MX71,SX70,YX7#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX71,LX70,MX71,SX70,YX7#

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22430

GX71,MX71,SX70..CBR,EFI,TBO,TWC

 1
88716-22430

GX71,SX70..SXL,XG,XL

 1
Common parts
90091-20609
90159-60128
90179-06032

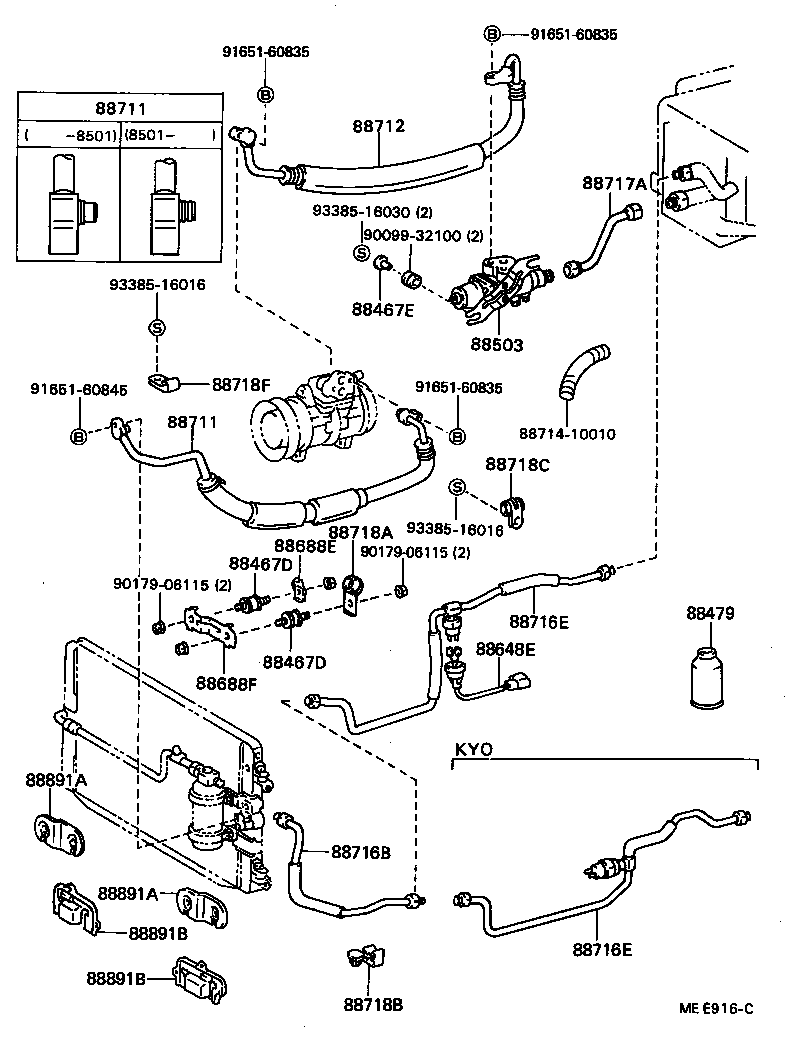

ILLUST NO. 2 OF 2(8408- )SX70

Click highlighted areas on diagram

diagram 88467D 88467D 88467E 88479 88503 88648E 88688E 88688F 88711 88711 88712 8871410010 88716B 88716E 88716E 88717A 88718A 88718B 88718C 88718F 88891A 88891A 88891B 88891B 9009932100 9017906115 9017906115 9165160835 9165160835 9165160835 9165160845 9338516016 9338516016 9338516030
Part # Description Qty Price
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

GX71,SX70..KYO,SXL,XG,XL

 2
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

GX71,SX70..KYO,SXL,XG,XL

 2
88467E - CUSHION, PRESSURE REGULATOR
88467-14050

SX70;GX71,LX70..SXL,XG,XL

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

GX71,LX70,MX71,SX70,YX7#

400G

 2
88503 - REGULATOR ASSY, PRESSURE
88503-22160

GX71,LX70,MX71,SX70..AVT,XG,XL

 1
88503-22160

GX71,LX70,SX70..SXL,XG,XL

 1
88648E - WIRING, COOLER
88648-22100

GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL

NO.2

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-22220

GX71,SX70..KYO,SXL,XG,XL

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22190

GX71,SX70..KYO,SXL,XG,XL

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22361

SX70

 1
88711-22360

SX70

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22361

SX70

 1
88711-22360

SX70

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22490

SX70

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22530

GX71,LX70,SX70..KYO,SXL,XG,XL

 1
88716-22530

GX71,SX70,YX70..KYO,SXL,XG,XL

 1
88716-22531

GX71,SX70..KYO,SXL,XG,XL

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-22050

GX71,LX70,SX70..SXL,XG,XL

 1
88710-22050

GX71,SX70..SXL,XG,XL

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-22050

GX71,LX70,SX70..SXL,XG,XL

 1
88710-22050

GX71,SX70..SXL,XG,XL

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22210

GX71,MX71,SX70

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-22730

GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-22650

GX71,LX70,MX71,SX70,YX7#

 1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-12280

SX70..XG,XL

 1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-14450

GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL

 1
88891A - PACKING A (FOR COOLER)
88892-22110

GX71,LX70,MX71,SX70,YX7#

 2
88891A - PACKING A (FOR COOLER)
88892-22110

GX71,LX70,MX71,SX70,YX7#

 2
88891B - PACKING B (FOR COOLER)
53285-22020

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

RH

 1
53286-22010

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

LH

 1
88891B - PACKING B (FOR COOLER)
53285-22020

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

RH

 1
53286-22010

GX71,LX70,SX70,YX72..KYO,SXL,XG,XL

LH

 1
Common parts
88714-10010
90099-32100
90179-06115
91651-60835
91651-60845
93385-16016
93385-16030
