8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

SX70-DTMES (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988

Engine 1SU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22120	GX71,LX70,MX71,SX70,YX70	08/1984 - 02/1985	1
87104-22140	GX71,LX70,MX71,SX70,YX70	02/1985 - 08/1986	1
87104-22150	GX71,LX70,SX70,YX72	08/1986 - 08/1988	1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22120	GX71,LX70,MX71,SX70,YX70	08/1984 - 02/1985	1
87104-22140	GX71,LX70,MX71,SX70,YX70	02/1985 - 08/1986	1
87104-22150	GX71,LX70,SX70,YX72	08/1986 - 08/1988	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030	GX71,LX70,MX71,SX70,YX7#	02/1985 - 08/1988	1
87105-22050	GX71,LX70,MX71,SX70,YX70	08/1984 - 02/1985	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030	GX71,LX70,MX71,SX70,YX7#	02/1985 - 08/1988	1
87105-22050	GX71,LX70,MX71,SX70,YX70	08/1984 - 02/1985	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22080	GX71,LX70,SX70,YX70..KYO,SXL,XG,XL	08/1984 - 08/1986	1
87130-22150	GX71,LX70,SX70..SXL,XG	08/1986 - 08/1988	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22080	GX71,LX70,SX70,YX70..KYO,SXL,XG,XL	08/1984 - 08/1986	1
87130-22150	GX71,LX70,SX70..SXL,XG	08/1986 - 08/1988	1
87138 - RESISTOR, HEATER BLOWER
87138-32010	GX71,LX70,SX70,YX70..KYO,SXL,XG,XL	08/1984 - 08/1986	1
88635-22041	GX71,LX70,SX70..AVT,GT,SXL,XG W/*AAC	08/1986 - 08/1988	1
88635-22040	GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/*AAC	08/1984 - 08/1986	1
87138-22050	GX71,LX70,SX70,YX72..KYO,SXL,XG,XL	08/1986 - 08/1988	1
87138 - RESISTOR, HEATER BLOWER
87138-32010	GX71,LX70,SX70,YX70..KYO,SXL,XG,XL	08/1984 - 08/1986	1
88635-22041	GX71,LX70,SX70..AVT,GT,SXL,XG W/*AAC	08/1986 - 08/1988	1
88635-22040	GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/*AAC	08/1984 - 08/1986	1
87138-22050	GX71,LX70,SX70,YX72..KYO,SXL,XG,XL	08/1986 - 08/1988	1
Common parts
90179-06162

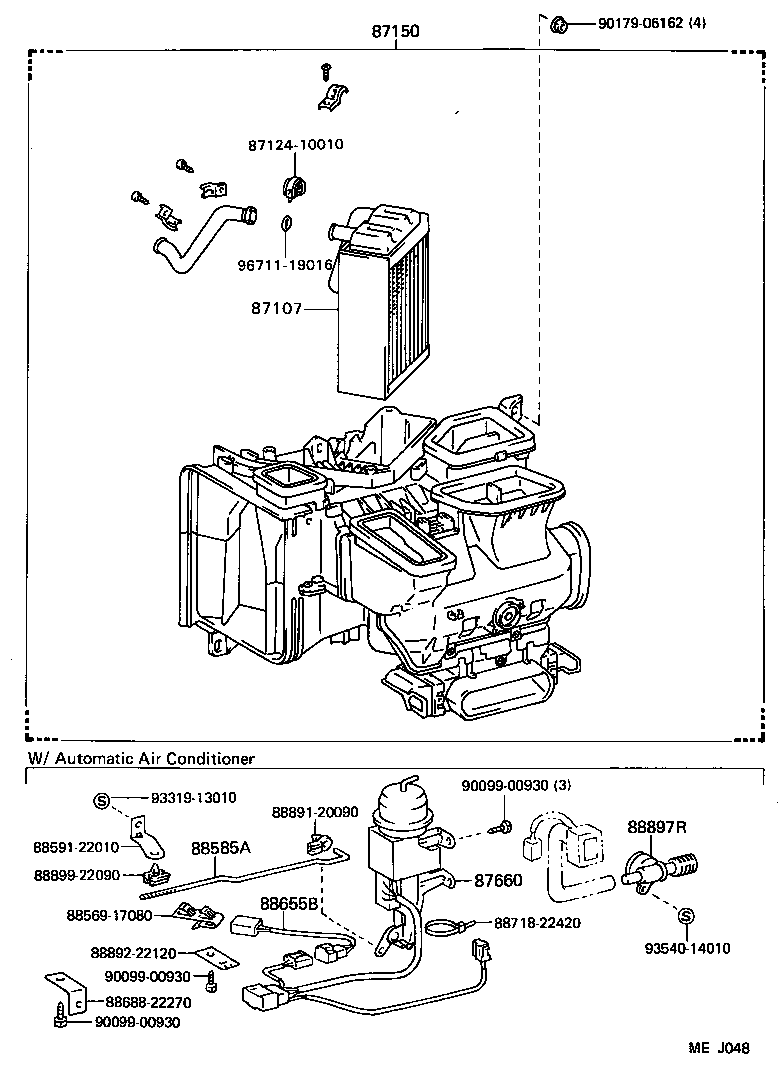

ILLUST NO. 2 OF 2(8408-8608)SXL,XG

Click highlighted areas on diagram

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22130	GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL	08/1984 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22280	GX71,LX70,SX70..SXL,XG,XL	08/1984 - 08/1986	1
87150-22381	GX71,LX70,SX70..SXL,XG	08/1986 - 08/1988	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22120	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1986	1
88660-22170	GX71,LX70,SX70..SXL,XG W/*AAC	08/1986 - 08/1988	1
88585A - SHAFT, HEATER AIR DAMPER
88585-22010	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1988	1
88655B - SWITCH, WATER TEMPERATURE
88655-22020	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1988	1
88897R - ASPIRATOR
88566-22040	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1988	1
Common parts
87124-10010
88569-17080
88591-22010
88688-22270
88718-22420
88891-20090
88892-22120
88899-22090
90099-00930
90179-06162
93319-13010
93540-14010
96711-19016

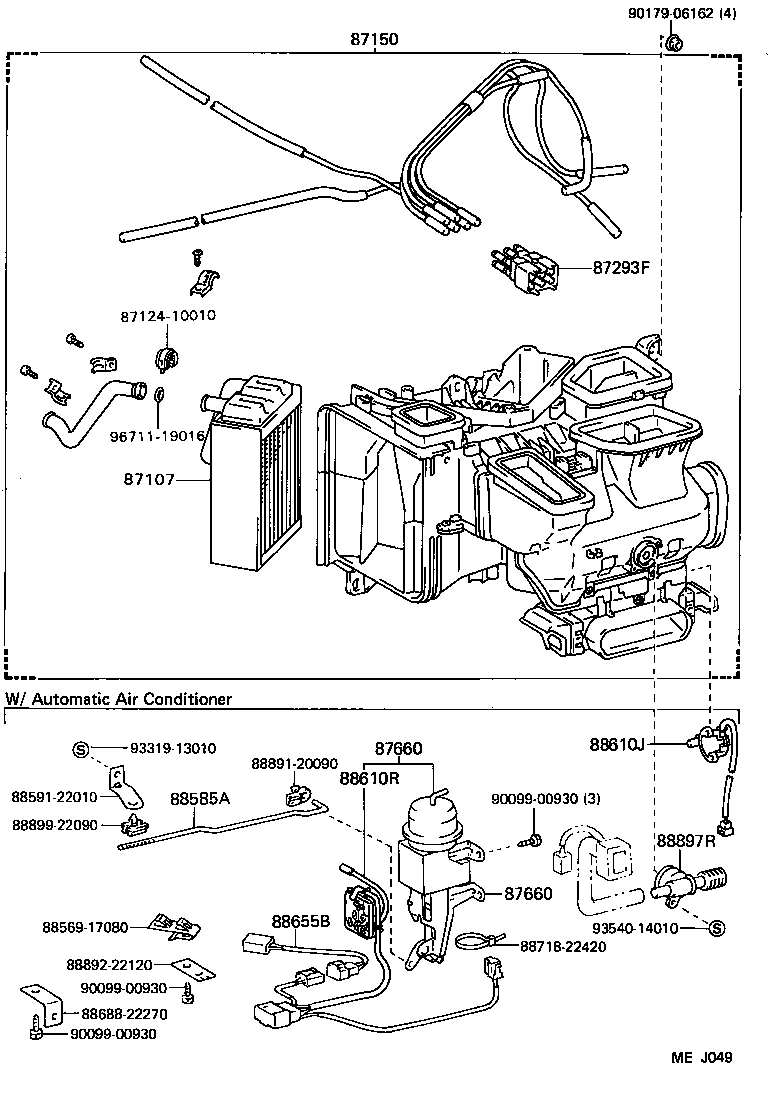

ILLUST NO. 2 OF 2(8608- )SXL,XG

Click highlighted areas on diagram

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22130	GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL	08/1984 - 08/1988	1
87150 - RADIATOR ASSY, HEATER
87150-22280	GX71,LX70,SX70..SXL,XG,XL	08/1984 - 08/1986	1
87150-22381	GX71,LX70,SX70..SXL,XG	08/1986 - 08/1988	1
87293F - CONNECTOR, VACUUM
87293-22021	GX71,LX70,SX70..AVT,GT,SXL,XG	08/1986 - 08/1988	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22120	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1986	1
88660-22170	GX71,LX70,SX70..SXL,XG W/*AAC	08/1986 - 08/1988	1
87660 - SERVO ASSY, AIR CONDITIONER
88660-22120	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1986	1
88660-22170	GX71,LX70,SX70..SXL,XG W/*AAC	08/1986 - 08/1988	1
88585A - SHAFT, HEATER AIR DAMPER
88585-22010	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1988	1
88610J - SWITCH ASSY, CONTROL
88610-22090	GX71,LX70,SX70..SXL,XG W/*AAC	08/1986 - 08/1988	1
88610R - SWITCH ASSY, CONTROL
88610-22130	GX71,LX70,SX70..SXL,XG W/*AAC	08/1986 - 08/1988	1
88655B - SWITCH, WATER TEMPERATURE
88655-22020	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1988	1
88897R - ASPIRATOR
88566-22040	GX71,LX70,SX70..SXL,XG W/*AAC	08/1984 - 08/1988	1
Common parts
87124-10010
88569-17080
88591-22010
88688-22270
88718-22420
88891-20090
88892-22120
88899-22090
90099-00930
90179-06162
93319-13010
93540-14010
96711-19016
