SX70-DTMES (1984)
Toyota Chaser

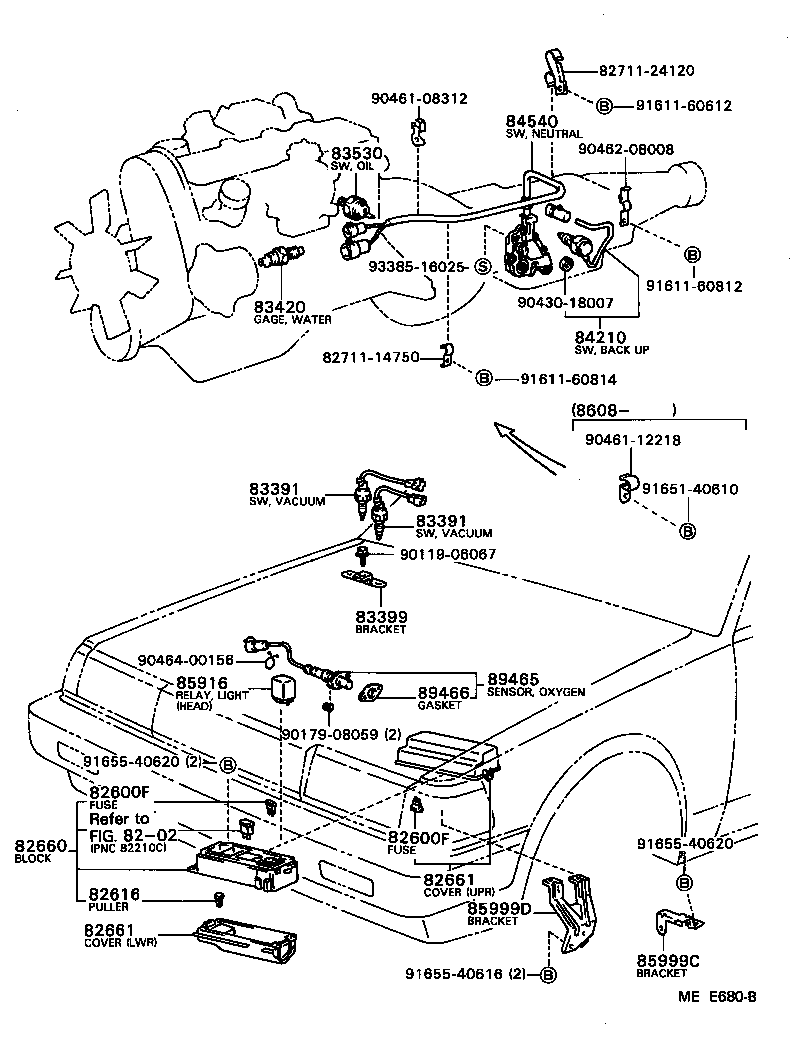

ILLUST NO. 1 OF 7(8408- )SX70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX71,LX70,MX71,SX70,YX7# 15A,15A |
12 | ||
| 90982-09002 |
GX71,LX70,MX71,SX70,YX7# 10A,10A |
2 | ||
| 90982-09004 |
GX71,LX70,MX71,SX70,YX7# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX71,LX70,MX71,SX70,YX7# 7.5A,7.5A |
8 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX71,LX70,MX71,SX70,YX7# 15A,15A |
12 | ||
| 90982-09002 |
GX71,LX70,MX71,SX70,YX7# 10A,10A |
2 | ||
| 90982-09004 |
GX71,LX70,MX71,SX70,YX7# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX71,LX70,MX71,SX70,YX7# 7.5A,7.5A |
8 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22240 |
GX71,MX71,SX70,YX7# |
1 | ||
| 82660-22230 |
GX71,MX71,SX70,YX70 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22120 |
GX71,LX70,MX71,SX70 LWR |
1 | ||
| 82661-22101 |
GX71,LX70,SX70..CBR,DSL,TD,TWT UPR |
1 | ||
| 82661-22121 |
GX71,LX70,SX70 LWR |
1 | ||
| 82661-22100 |
GX71,LX70,MX71,SX70 UPR |
1 | ||
| 82661-22100 |
GX71,LX70,SX70..CBR,DSL,TD,TWC,TWT UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22120 |
GX71,LX70,MX71,SX70 LWR |
1 | ||
| 82661-22101 |
GX71,LX70,SX70..CBR,DSL,TD,TWT UPR |
1 | ||
| 82661-22121 |
GX71,LX70,SX70 LWR |
1 | ||
| 82661-22100 |
GX71,LX70,MX71,SX70 UPR |
1 | ||
| 82661-22100 |
GX71,LX70,SX70..CBR,DSL,TD,TWC,TWT UPR |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22080 |
SX70 MARK=330FB |
1 | ||
| 83391-22070 |
SX70 MARK=80M |
1 | ||
| 83391-32030 |
SX70 MARK=330FB |
1 | ||
| 83391-12150 |
SX70 MARK=80FM |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-22080 |
SX70 MARK=330FB |
1 | ||
| 83391-22070 |
SX70 MARK=80M |
1 | ||
| 83391-32030 |
SX70 MARK=330FB |
1 | ||
| 83391-12150 |
SX70 MARK=80FM |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22080 |
SX70 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14020 |
SX70 |
1 | ||
| 83530-30080 |
SX70 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
GX71,LX70,SX70,YX7#..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX71,LX70,MX71,SX70,YX7# HEAD |
1 | ||
| 90987-02002 |
GX71,LX70,MX71,SX70,YX7# TAIL,MARUKO |
1 | ||
| 90987-02004 |
GX71,LX70,MX71,SX70,YX7# TAIL,DENSO |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-22140 |
GX71,MX71,SX70 |
1 | ||
| 85999-22141 |
GX71,SX70 |
1 | ||
| 85999D - BRACKET, RELAY, NO.4 | ||||
| 85999-22190 |
SX70 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19065 |
SX70 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
MX71,SX70,YX7# |
1 | ||
| Common parts | ||||
| 82711-14750 | ||||
| 82711-24120 | ||||
| 90119-06067 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 90464-00156 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91651-40610 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 6 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22050 |
GX71,LX70,SX70..5F..(AVT,GT,SXL,XG,XL) |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20030 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12120 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22020 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-12120 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22020 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
GX71,LX70,MX71,SX70,YX7# TOKAIRIKA |
2 | ||
| 84340-30030 |
GX71,LX70,MX71,SX70,YX7# MATSUSHITA |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
GX71,LX70,MX71,SX70,YX7# TOKAIRIKA |
2 | ||
| 84340-30030 |
GX71,LX70,MX71,SX70,YX7# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
GX71,LX70,SX70..5F..(AVT,GT,SXL,XG,XL) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
GX71,LX70,SX70..5F..(AVT,GT,SXL,XG,XL) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29285 |
GX71,MX71,SX70 |
1 | ||
| Common parts | ||||
| 90167-20001 | ||||
| 90170-10017 | ||||
| 90266-02002 | ||||
| 90430-08252 | ||||
| 90463-12014 | ||||
| 91651-60616 | ||||
| 93315-14014 | ||||
| 93319-15008 | ||||
| 93567-55014 | ||||
ILLUST NO. 2 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84091-22090 |
GX71,LX70,MX71,SX70,YX70 OUTER,W/*RCM |
1 | ||
| 84090-22050 |
GX71,LX70,MX71,SX70,YX70 OUTER,W/*RCM |
1 | ||
| 84091-22220 |
LX70,SX70..XG OUTER,W/*57,XG EXTRA |
1 | ||
| 84091-22210 |
GX71,LX70,SX70..SXL,XG,XL OUTER,W/DOOR *RCM |
1 | ||
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84091-22090 |
GX71,LX70,MX71,SX70,YX70 OUTER,W/*RCM |
1 | ||
| 84090-22050 |
GX71,LX70,MX71,SX70,YX70 OUTER,W/*RCM |
1 | ||
| 84091-22220 |
LX70,SX70..XG OUTER,W/*57,XG EXTRA |
1 | ||
| 84091-22210 |
GX71,LX70,SX70..SXL,XG,XL OUTER,W/DOOR *RCM |
1 | ||
| 84090 - SWITCH SET, EASY OPERATE | ||||
| 84091-22090 |
GX71,LX70,MX71,SX70,YX70 OUTER,W/*RCM |
1 | ||
| 84090-22050 |
GX71,LX70,MX71,SX70,YX70 OUTER,W/*RCM |
1 | ||
| 84091-22220 |
LX70,SX70..XG OUTER,W/*57,XG EXTRA |
1 | ||
| 84091-22210 |
GX71,LX70,SX70..SXL,XG,XL OUTER,W/DOOR *RCM |
1 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX71,LX70,MX71,SX70,YX7# 12V 1.1W(BASE:GRAY) |
2 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX71,LX70,MX71,SX70,YX7# 12V 1.1W(BASE:GRAY) |
2 | ||
| 84090B - BULB (FOR EASY OPERATE SWITCH SET) | ||||
| 84999-10170 |
GX71,LX70,MX71,SX70,YX7# 12V 1.1W(BASE:GRAY) |
2 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-22080 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-22160 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10090 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 84450-22170 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22070 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22090 |
GX71,LX70,SX70..SXL,XG W/*AAC |
1 | ||
| 84732-22080 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 84732-22100 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 84732-22110 |
GX71,LX70,SX70..SXL,XG W/*AAC |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
GX71..5F..TWT;GX71,LX70,SX70,YX70..KYO,SXL,XG,XL 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22110 |
LX70,SX70,YX70 |
1 | ||
| 84790-22120 |
GX71,LX70,SX70 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
LX70,SX70,YX70 12V 1.12W,12V 1.1W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22060 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22160 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GX71,LX70,MX71,SX70,YX7# 14V 1.4W,12V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
GX71,LX70,MX71,SX70,YX7# 14V 1.4W,12V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| Common parts | ||||
| 90164-30003 | ||||
| 90183-05094 | ||||
| 90463-04202 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8301 | ||||
ILLUST NO. 4 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-35020 |
2L#,1SU..LX70,SX70 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81980-22070 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX71,LX70,MX71,SX70,YX7# 15A,15A |
12 | ||
| 90982-09002 |
GX71,LX70,MX71,SX70,YX7# 10A,10A |
2 | ||
| 90982-09004 |
GX71,LX70,MX71,SX70,YX7# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX71,LX70,MX71,SX70,YX7# 7.5A,7.5A |
8 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX71,LX70,MX71,SX70..(AVT,GT,SXL,XG,XL)..(CBR,EFI,TBO,TD,TWC,TWT) 30A,30A,*PW |
1 | ||
| 82650-12020 |
GX71,LX70,MX71,SX70..(AVT,SXL,XG,XL)..(CBR,EFI,TBO,TD,TWC) 14A,14A,*EL |
1 | ||
| 82650-20011 |
GX71,LX70,MX71,SX70..(AVT,GT,SXL,XG,XL)..(CBR,EFI,TBO,TD,TWC,TWT) 30A,30A,*PW,*EL |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX71,LX70,MX71,SX70..(AVT,GT,SXL,XG,XL)..(CBR,EFI,TBO,TD,TWC,TWT) 30A,30A,*PW |
1 | ||
| 82650-12020 |
GX71,LX70,MX71,SX70..(AVT,SXL,XG,XL)..(CBR,EFI,TBO,TD,TWC) 14A,14A,*EL |
1 | ||
| 82650-20011 |
GX71,LX70,MX71,SX70..(AVT,GT,SXL,XG,XL)..(CBR,EFI,TBO,TD,TWC,TWT) 30A,30A,*PW,*EL |
2 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20011 |
GX71,LX70,MX71,SX70,YX7# 30A,30A,DEFOGGER |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22211 |
GX71,LX70,SX70,YX70 NO.1 |
1 | ||
| 82602-22170 |
GX71,LX70,MX71,SX70,YX7# NO.2 |
1 | ||
| 82602-22212 |
GX71,LX70,SX70,YX72 NO.1 |
1 | ||
| 82602-22210 |
GX71,LX70,MX71,SX70,YX70 NO.1 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22211 |
GX71,LX70,SX70,YX70 NO.1 |
1 | ||
| 82602-22170 |
GX71,LX70,MX71,SX70,YX7# NO.2 |
1 | ||
| 82602-22212 |
GX71,LX70,SX70,YX72 NO.1 |
1 | ||
| 82602-22210 |
GX71,LX70,MX71,SX70,YX70 NO.1 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82602-22211 |
GX71,LX70,SX70,YX70 NO.1 |
1 | ||
| 82602-22170 |
GX71,LX70,MX71,SX70,YX7# NO.2 |
1 | ||
| 82602-22212 |
GX71,LX70,SX70,YX72 NO.1 |
1 | ||
| 82602-22210 |
GX71,LX70,MX71,SX70,YX70 NO.1 |
1 | ||
| 85912A - RELAY, DEFOGGER TIMER | ||||
| 90987-02002 |
GX71,LX70,MX71,SX70,YX7# MARUKO |
1 | ||
| 90987-02004 |
GX71,LX70,MX71,SX70,YX7# DENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX71,LX70,MX71,SX70,YX7# HEAD |
1 | ||
| 90987-02002 |
GX71,LX70,MX71,SX70,YX7# TAIL,MARUKO |
1 | ||
| 90987-02004 |
GX71,LX70,MX71,SX70,YX7# TAIL,DENSO |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
GX71,LX70,SX70,YX72 MARUKO |
1 | ||
| 90987-02004 |
GX71,LX70,SX70,YX72 DENSO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MARUKO |
1 | ||
| 90987-02004 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG DENSO |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-22070 |
LX70,SX70 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-22080 |
GX71,LX70,SX70..SXL,XG W/*PW |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-22170 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 86640 - CHIME ASSY | ||||
| 86640-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 87989-30010 |
LX70,SX70..XG XG EXTRA |
1 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90119-06067 | ||||
| 90183-05094 | ||||
| 91651-60612 | ||||
| 93567-55016 | ||||
| 93580-15014 | ||||
| Linked diagrams | ||||
| 8301 | ||||
ILLUST NO. 5 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
GX71,LX70,MX71,SX70,YX7# 15A,15A |
12 | ||
| 90982-09002 |
GX71,LX70,MX71,SX70,YX7# 10A,10A |
2 | ||
| 90982-09004 |
GX71,LX70,MX71,SX70,YX7# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX71,LX70,MX71,SX70,YX7# 7.5A,7.5A |
8 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
GX71,LX70,SX70..CBR,EFI,TD,TWC,TWT 30A,30A,HEATER |
1 | ||
| 82650-20020 |
GX71,LX70,SX70,YX72 40A,40A,BLOWER MOTOR |
1 | ||
| 82650-20011 |
GX71,LX70,MX71,SX70,YX7# 30A,30A,HEATER |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GX71,LX70,SX70,YX72 |
1 | ||
| 90986-01003 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
GX71,LX70,SX70,YX72 |
2 | ||
| 90468-25002 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
GX71,LX70,SX70,YX72 |
2 | ||
| 90468-25002 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22120 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL W/*VIW |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22220 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22460 |
SX70..5F |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22460 |
SX70..5F |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22460 |
SX70..5F |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
ILLUST NO. 7 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80005 |
GX71,MX71,SX70 W/*AS |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GX71,LX70,MX71,SX70 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GX71,LX70,MX71,SX70 |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-12030 |
GX71,LX70,MX71,SX70..AVT,SXL,XG,XL |
1 | ||
| 84231-22020 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32050 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32060 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
1 | ||
| 84820-32090 |
GX71,LX70,SX70..AVT,GT,SXL,XG |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22140 |
GX71,SX70..AVT,GT,SXL,XG |
1 | ||
| 89373-22160 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-22010 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
1 | ||
| Common parts | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8511 | ||||
ILLUST NO. 3 OF 7(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29365 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 84112-29425 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 84112-29635 |
GX71,LX70,SX70,YX72..KYO,SXL,XG,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19125 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 84140-29095 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 84140-22030 |
GX71,LX70,SX70,YX72 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22480 |
GX71,LX70,SX70..SXL,XG,XL |
1 | ||
| 84310-22360 |
GX71,LX70,SX70..SXL,XG,XL |
1 | ||
| 84310B - SWITCH, TURN SIGNAL | ||||
| 84332-39195 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 84332-29235 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 84311 - SENSOR, TURN SIGNAL CANCEL | ||||
| 84311-22010 |
GX71,LX70,SX70,YX72 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-22340 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 84652-80043 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| Common parts | ||||
| 82711-20290 | ||||
| 82711-30430 | ||||
| 93315-14010 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
