SX70-DTMES (1984)
Toyota Chaser

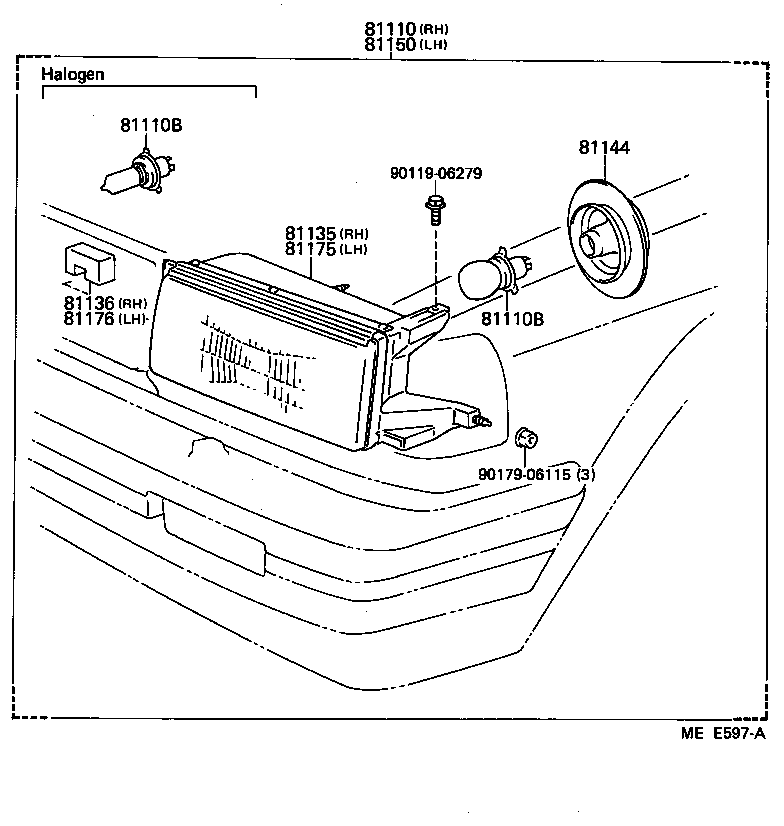

(8408-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80420 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81110-91605 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL 12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL 12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-91603 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81130-91605 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81136 - PROTECTOR, HEADLAMP, NO.1 RH | ||||
| 81136-91602 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-91602 |
GX71,LX70,MX71,SX70,YX70 |
2 | ||
| 81139-16340 |
GX71,LX70,SX70,YX72 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80412 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81150-91605 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81106-91603 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81170-91605 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81176 - PROTECTOR, HEADLAMP, NO.1 LH | ||||
| 81136-91602 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| Common parts | ||||
| 90119-06279 | ||||
| 90179-06115 | ||||

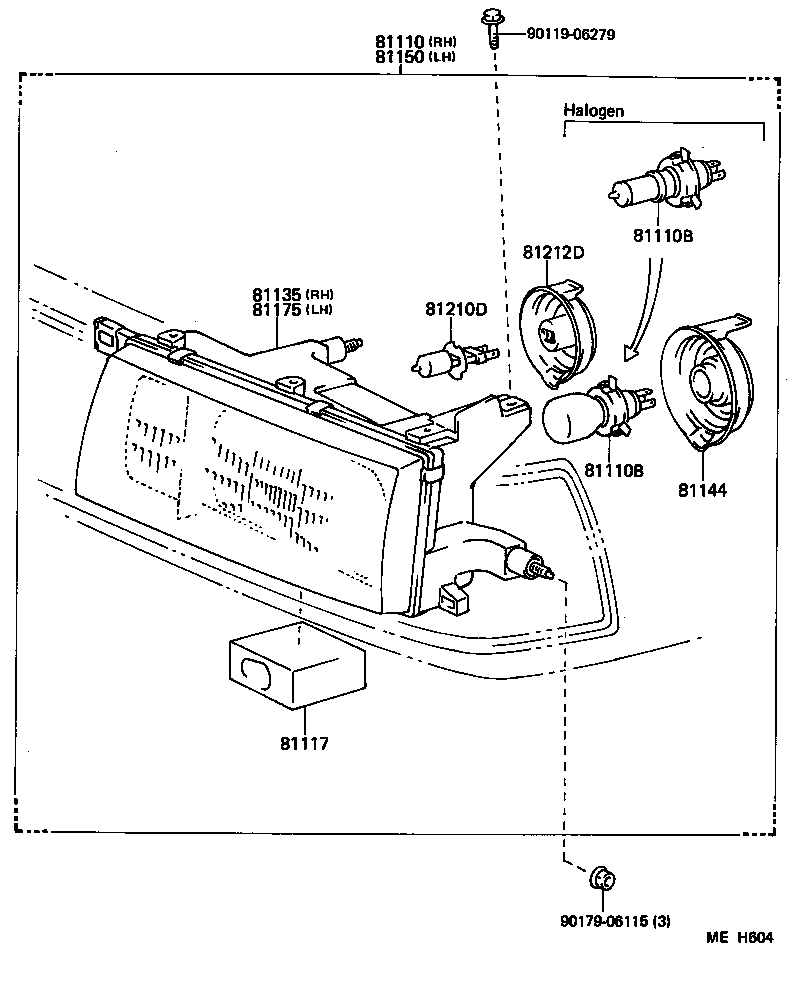

(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-80420 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81110-91605 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL 12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13015 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL 12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN |
2 | ||
| 81117 - PACKING, HEADLAMP HOUSING | ||||
| 81117-91604 |
GX71,LX70,SX70,YX72 |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-91603 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81130-91605 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 81139-91602 |
GX71,LX70,MX71,SX70,YX70 |
2 | ||
| 81139-16340 |
GX71,LX70,SX70,YX72 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-80412 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81150-91605 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81106-91603 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81170-91605 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13039 |
GX71,LX70,SX70,YX72 12V 55W,ﾊﾛｹﾞﾝ,12V 55W |
2 | ||
| 81212D - COVER, FOG LAMP | ||||
| 81139-32210 |
GX71,LX70,SX70,YX72 |
2 | ||
| Common parts | ||||
| 90119-06279 | ||||
| 90179-06115 | ||||
