SX70-DTMES (1984)
Toyota Chaser

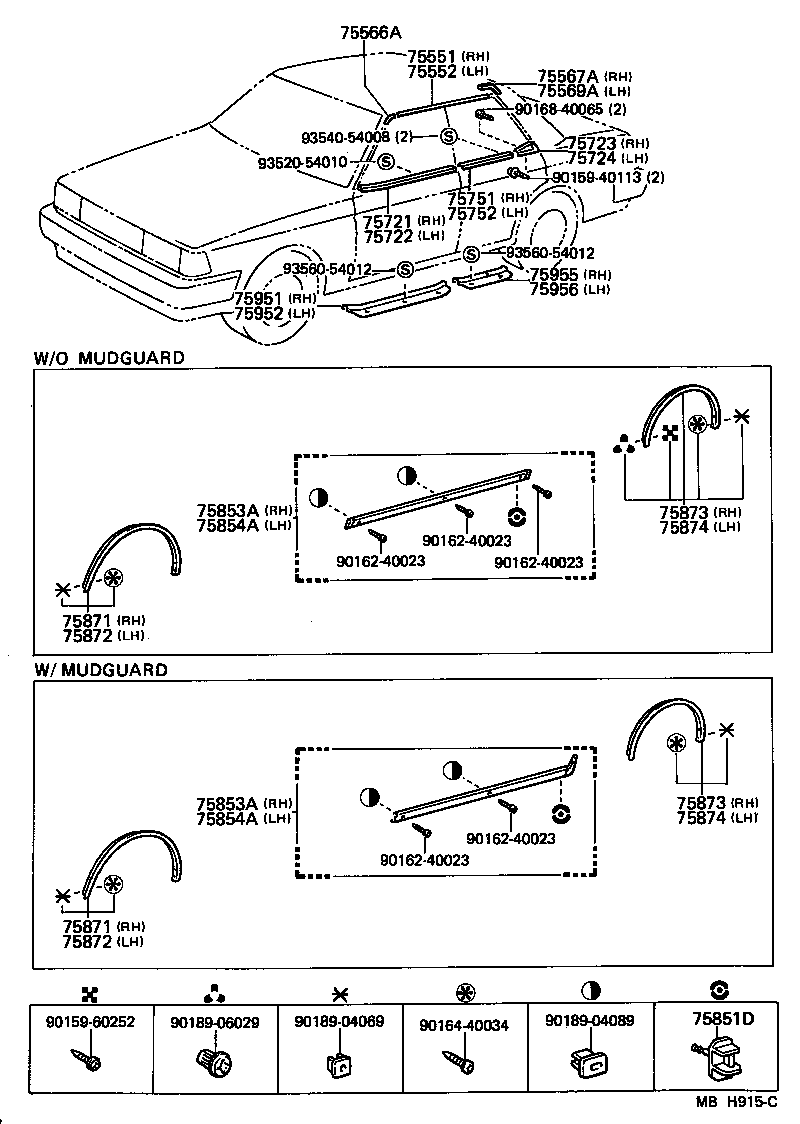

ILLUST NO. 2 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-22110 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-22110 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75566A - SEAL, ROOF DRIP SIDE FINISH MOULDING, FRONT | ||||
| 75566-22010 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 75567A - SEAL, ROOF DRIP SIDE FINISH MOULDING, NO.2 | ||||
| 75567-91601 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75569A - SEAL, ROOF DRIP SIDE FINISH MOULDING, NO.3 | ||||
| 75569-91601 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75721 - MOULDING, FRONT DOOR BELT, RH | ||||
| 75710-22100 |
GX71,LX70,MX71,SX70,YX7# W/FENDER MIRROR |
1 | ||
| 75710-22090 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL W/DOOR MIRROR |
1 | ||
| 75722 - MOULDING, FRONT DOOR BELT, LH | ||||
| 75720-22100 |
GX71,LX70,MX71,SX70,YX7# W/FENDER MIRROR |
1 | ||
| 75720-22090 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL W/DOOR MIRROR |
1 | ||
| 75723 - MOULDING, REAR DOOR BELT, REAR RH | ||||
| 75723-91601 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75724 - MOULDING, REAR DOOR BELT, REAR LH | ||||
| 75724-91601 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75751 - MOULDING, REAR DOOR BELT, RH | ||||
| 75703-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75752 - MOULDING, REAR DOOR BELT, LH | ||||
| 75704-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75851D - CLIP(FOR ROCKER PANEL MOULDING SET) | ||||
| 75867-22050 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
8 | ||
| 75867-22060 |
LX70,SX70..XG XG EXTRA |
8 | ||
| 75853A - MOULDING, ROCKER PANEL, CENTER RH | ||||
| 75850-29166 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
1 | ||
| 75850-29165 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 75853-29035 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75853A - MOULDING, ROCKER PANEL, CENTER RH | ||||
| 75850-29166 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
1 | ||
| 75850-29165 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 75853-29035 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75854A - MOULDING, ROCKER PANEL, CENTER LH | ||||
| 75860-29095 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 75854-29035 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75860-29096 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
1 | ||
| 75854A - MOULDING, ROCKER PANEL, CENTER LH | ||||
| 75860-29095 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 75854-29035 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75860-29096 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
1 | ||
| 75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH | ||||
| 75871-29055 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75871-29085 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75871-29095 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH | ||||
| 75871-29055 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75871-29085 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75871-29095 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH | ||||
| 75872-29075 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75872-29045 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75872-29085 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH | ||||
| 75872-29075 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75872-29045 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75872-29085 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH | ||||
| 75873-29096 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75873-29085 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75873-29086 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH | ||||
| 75873-29096 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75873-29085 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75873-29086 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH | ||||
| 75874-29085 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75874-29086 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75874-29096 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH | ||||
| 75874-29085 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75874-29086 |
GX71,LX70,SX70..SXL,XG |
1 | ||
| 75874-29096 |
LX70,SX70..XG XG EXTRA,W/MUDGUARD |
1 | ||
| 75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH | ||||
| 67913-2206003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67913-2206005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67913-2206004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67913-2206015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67913-2206002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67913-2206005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67913-2206004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67913-2206002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 67913-2206003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67913-2206015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67917-2206004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67917-2206003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67917-2206005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 67917-2206002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 67917-2206015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67918-2206003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67918-2206002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 67918-2206015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67918-2206004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67918-2206005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40113 | ||||
| 90159-60252 | ||||
| 90162-40023 | ||||
| 90164-40034 | ||||
| 90168-40065 | ||||
| 90189-04069 | ||||
| 90189-04089 | ||||
| 90189-06029 | ||||
| 93520-54010 | ||||
| 93540-54008 | ||||
| 93560-54012 | ||||

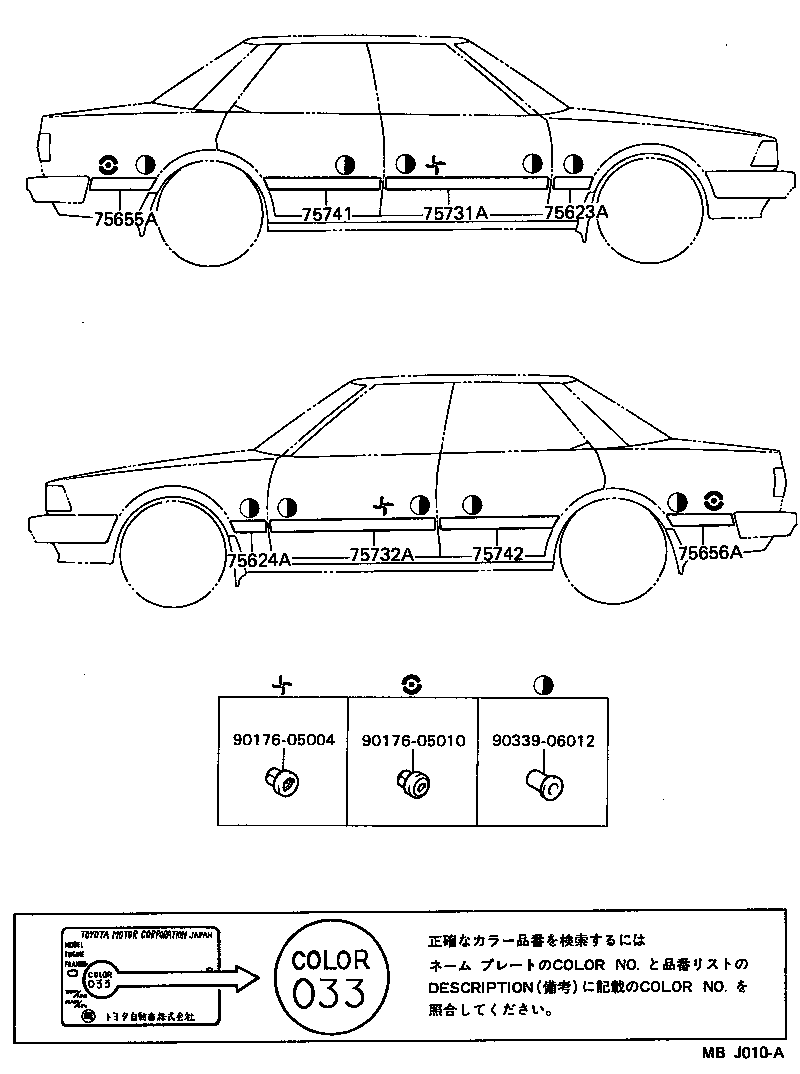

ILLUST NO. 1 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH | ||||
| 75623-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH | ||||
| 75624-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75655A - MOULDING, QUARTER, OUTSIDE CENTER RH | ||||
| 75651-22160 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75656A - MOULDING, QUARTER, OUTSIDE CENTER LH | ||||
| 75652-22170 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-22250 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-22250 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75741-22310 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 75741-22340 |
GX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75742-22300 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 75742-22330 |
GX71,LX70,MX71,SX70,YX7#..AVT,KYO,SXL,XG,XL |
1 | ||
| Common parts | ||||
| 90176-05004 | ||||
| 90176-05010 | ||||
| 90339-06012 | ||||
