SX70-DTMES (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

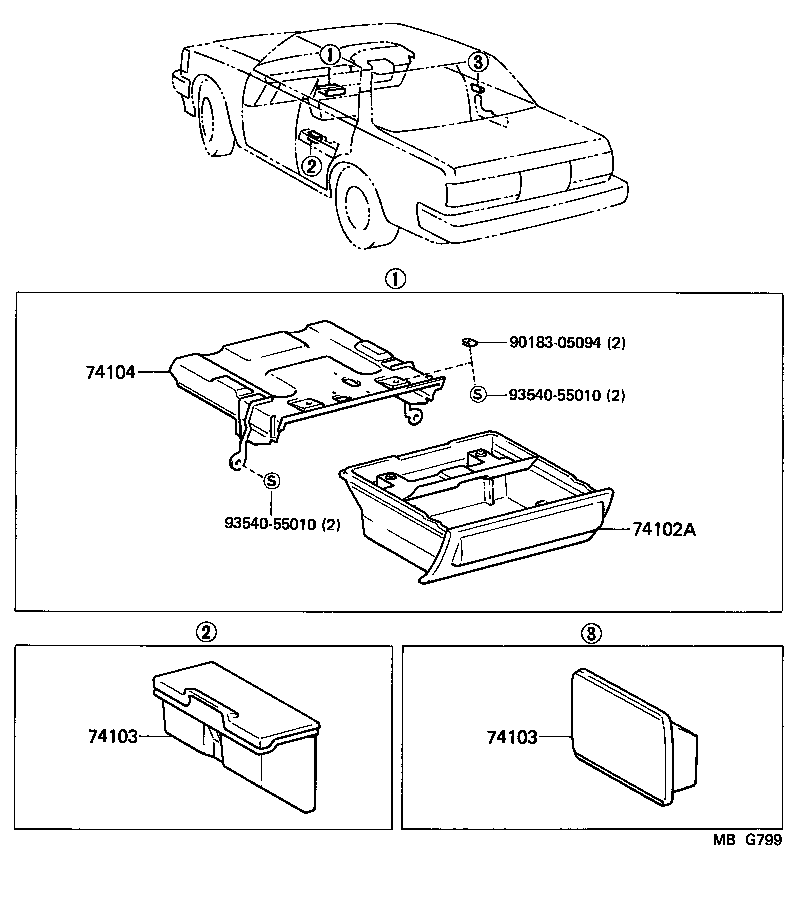

Click highlighted areas on diagram

diagram 74102A 74103 74103 74104 9018305094 9354055010 9354055010
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-2208005

GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL

BEIGE,BEIGE,TRIM4#

 1
74102-2208015

GX71,LX70,SX70..AVT,GT,SXL,XG,XL

BEIGE,DARK BEIGE,TRIM4#

 1
74102-2208003

GX71,LX70,MX71,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 1
74102-2208004

GX71,LX70,SX70,YX72

BLUE,DARK BLUE,TRIM8#

 1
74102-2208002

GX71,LX70,MX71,SX70..AVT,GT,SXL,XG

MAROON,RED,TRIM3#

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-2209005

GX71,LX70,SX70..SXL,XG,XL

BEIGE,BEIGE,TRIM4#

 2
74130-2209002

GX71,LX70,SX70..SXL,XG

MAROON,RED/MAROON,TRIM3#

 2
74130-2209003

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

GRAY,COOL GRAY,TRIM1#

 2
74130-2209003

LX70,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 2
74130-2209002

SX70..XG

MAROON,RED/MAROON,TRIM3#

 2
74130-22080

GX71,LX70,SX70..SXL,XG

ARMREST SIDE

 2
74130-2209012

SX70..XG

MAROON,MAROON,TRIM3#

 2
74130-2209015

SX70..XG,XL

BEIGE,DARK BEIGE,TRIM4#

 2
74130-2209004

SX70,YX72

BLUE,DARK BLUE,TRIM8#

 2
74130-2209005

LX70,SX70..XG,XL

BEIGE,BEIGE,TRIM4#

 2
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-2209005

GX71,LX70,SX70..SXL,XG,XL

BEIGE,BEIGE,TRIM4#

 2
74130-2209002

GX71,LX70,SX70..SXL,XG

MAROON,RED/MAROON,TRIM3#

 2
74130-2209003

GX71,LX70,SX70,YX70..KYO,SXL,XG,XL

GRAY,COOL GRAY,TRIM1#

 2
74130-2209003

LX70,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 2
74130-2209002

SX70..XG

MAROON,RED/MAROON,TRIM3#

 2
74130-22080

GX71,LX70,SX70..SXL,XG

ARMREST SIDE

 2
74130-2209012

SX70..XG

MAROON,MAROON,TRIM3#

 2
74130-2209015

SX70..XG,XL

BEIGE,DARK BEIGE,TRIM4#

 2
74130-2209004

SX70,YX72

BLUE,DARK BLUE,TRIM8#

 2
74130-2209005

LX70,SX70..XG,XL

BEIGE,BEIGE,TRIM4#

 2
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-22110

GX71,LX70,MX71,SX70,YX7#

 1
Common parts
90183-05094
93540-55010
