SX70-DTMES (1984)
Toyota Chaser
(8408- )

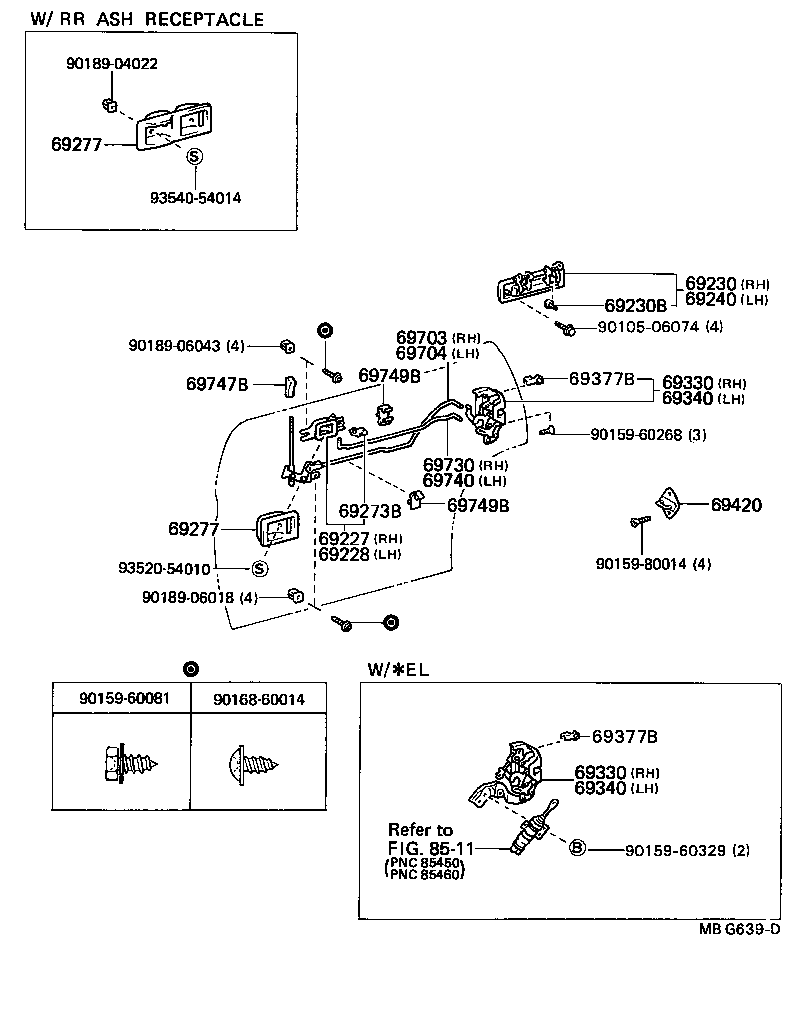

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69205-22030 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69206-22030 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69759-20100 |
GX71,LX70,MX71,SX70..AVT,SXL,XG LH |
1 | ||
| 69759-22060 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG RH |
1 | ||
| 69759-20110 |
GX71,LX70,MX71,SX70..AVT,SXL,XG RH |
1 | ||
| 69759-22070 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG LH |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69297-2201002 |
GX71,LX70,SX70..SXL,XG RH,MAROON,RED,TRIM3# |
1 | ||
| 69297-2201003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL RH,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 69297-2201005 |
GX71,LX70,SX70..SXL,XG,XL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 69298-2201002 |
GX71,LX70,SX70..SXL,XG LH,MAROON,RED,TRIM3# |
1 | ||
| 69277-2205002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/POWER WINDOW,MAROON,RED,TRIM3# |
2 | ||
| 69277-2205003 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/POWER WINDOW,GRAY,COOL GRAY,TRIM1# |
2 | ||
| 69298-2201003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL LH,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 69277-2205005 |
GX71,LX70,MX71,SX70..AVT,SXL,XG W/POWER WINDOW,BEIGE,BEIGE,TRIM4# |
2 | ||
| 69298-2201005 |
GX71,LX70,SX70..SXL,XG,XL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 69298-2201002 |
SX70..XG LH,MAROON,RED,TRIM3# |
1 | ||
| 69298-2201003 |
LX70,SX70,YX70 LH,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 69297-2201002 |
SX70..XG RH,MAROON,RED,TRIM3# |
1 | ||
| 69298-2201005 |
LX70,SX70..XG,XL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 69277-2205012 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/POWER WINDOW,MAROON,MAROON,TRIM3# |
2 | ||
| 69297-2201003 |
LX70,SX70,YX70 RH,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 69297-2201004 |
SX70,YX72 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69297-2201005 |
LX70,SX70..XG,XL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 69277-2205004 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/POWER WINDOW,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 69297-2201012 |
SX70..XG RH,MAROON,MAROON,TRIM3# |
1 | ||
| 69277-2205015 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/POWER WINDOW,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69297-2201015 |
SX70..XG,XL RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69298-2201004 |
SX70,YX72 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69298-2201015 |
SX70..XG,XL LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69298-2201012 |
SX70..XG LH,MAROON,MAROON,TRIM3# |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69297-2201002 |
GX71,LX70,SX70..SXL,XG RH,MAROON,RED,TRIM3# |
1 | ||
| 69297-2201003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL RH,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 69297-2201005 |
GX71,LX70,SX70..SXL,XG,XL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 69298-2201002 |
GX71,LX70,SX70..SXL,XG LH,MAROON,RED,TRIM3# |
1 | ||
| 69277-2205002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/POWER WINDOW,MAROON,RED,TRIM3# |
2 | ||
| 69277-2205003 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/POWER WINDOW,GRAY,COOL GRAY,TRIM1# |
2 | ||
| 69298-2201003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL LH,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 69277-2205005 |
GX71,LX70,MX71,SX70..AVT,SXL,XG W/POWER WINDOW,BEIGE,BEIGE,TRIM4# |
2 | ||
| 69298-2201005 |
GX71,LX70,SX70..SXL,XG,XL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 69298-2201002 |
SX70..XG LH,MAROON,RED,TRIM3# |
1 | ||
| 69298-2201003 |
LX70,SX70,YX70 LH,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 69297-2201002 |
SX70..XG RH,MAROON,RED,TRIM3# |
1 | ||
| 69298-2201005 |
LX70,SX70..XG,XL LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 69277-2205012 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/POWER WINDOW,MAROON,MAROON,TRIM3# |
2 | ||
| 69297-2201003 |
LX70,SX70,YX70 RH,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 69297-2201004 |
SX70,YX72 RH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69297-2201005 |
LX70,SX70..XG,XL RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 69277-2205004 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/POWER WINDOW,BLUE,DARK BLUE,TRIM8# |
2 | ||
| 69297-2201012 |
SX70..XG RH,MAROON,MAROON,TRIM3# |
1 | ||
| 69277-2205015 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/POWER WINDOW,BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69297-2201015 |
SX70..XG,XL RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69298-2201004 |
SX70,YX72 LH,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 69298-2201015 |
SX70..XG,XL LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69298-2201012 |
SX70..XG LH,MAROON,MAROON,TRIM3# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22160 |
GX71,LX70,MX71,SX70..AVT,SXL,XG W/*EL |
1 | ||
| 69330-22150 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 69330-22151 |
SX70..XG |
1 | ||
| 69330-22161 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/*EL |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22160 |
GX71,LX70,MX71,SX70..AVT,SXL,XG W/*EL |
1 | ||
| 69330-22150 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 69330-22151 |
SX70..XG |
1 | ||
| 69330-22161 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/*EL |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22171 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/*EL |
1 | ||
| 69340-22160 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 69340-22161 |
SX70..XG |
1 | ||
| 69340-22170 |
GX71,LX70,MX71,SX70..AVT,SXL,XG W/*EL |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22171 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG W/*EL |
1 | ||
| 69340-22160 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL |
1 | ||
| 69340-22161 |
SX70..XG |
1 | ||
| 69340-22170 |
GX71,LX70,MX71,SX70..AVT,SXL,XG W/*EL |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-22030 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-22030 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-22010 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20010 |
GX71,LX70,MX71,SX70,YX7# FR |
2 | ||
| 69749-12040 |
GX71,LX70,MX71,SX70,YX7# RR |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20010 |
GX71,LX70,MX71,SX70,YX7# FR |
2 | ||
| 69749-12040 |
GX71,LX70,MX71,SX70,YX7# RR |
2 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80014 | ||||
| 90168-60014 | ||||
| 90189-04022 | ||||
| 90189-06018 | ||||
| 90189-06043 | ||||
| 93520-54010 | ||||
| 93540-54014 | ||||
| Linked diagrams | ||||
| 8511 | ||||
