SX70-DTMES (1984)
Toyota Chaser

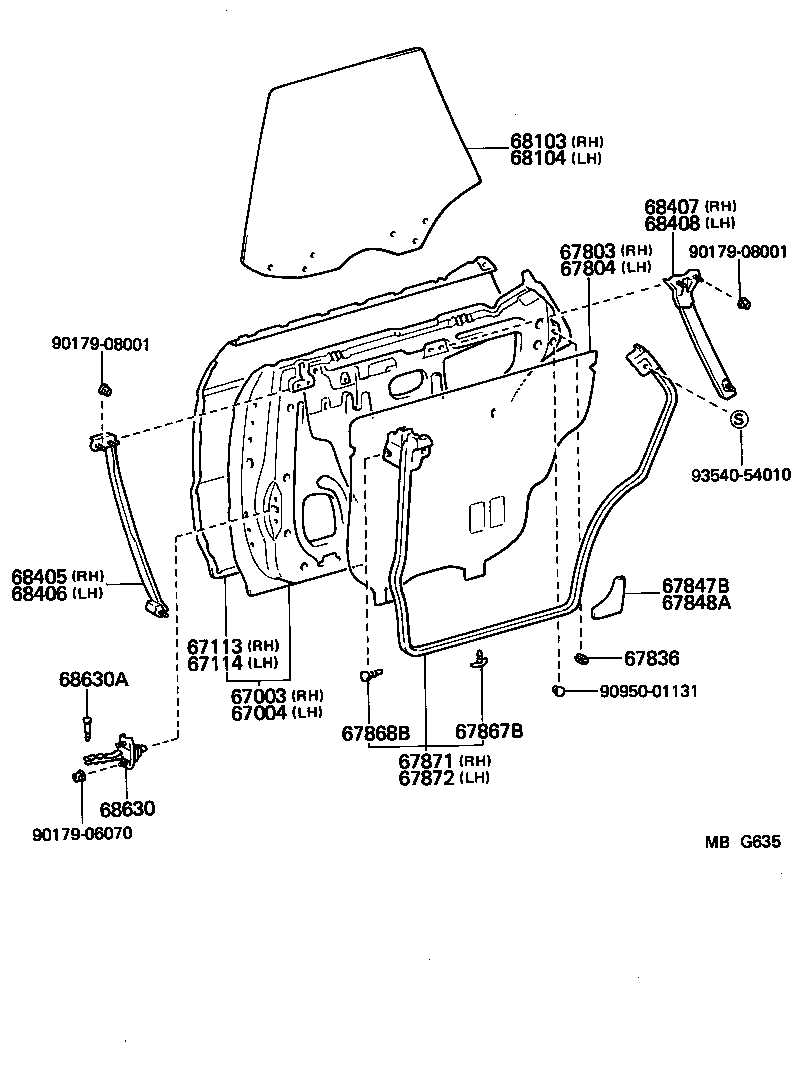

ILLUST NO. 1 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-22310 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-22320 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-22140 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 67113-22130 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-22140 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 67114-22130 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-22130 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 67841-22160 |
GX71,LX70,MX71,SX70,YX7# COLD SPEC |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 67841-22160 |
GX71,LX70,MX71,SX70,YX7# COLD SPEC |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-22020 |
GX71,LX70,MX71,SX70,YX7# COLD SPEC |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-22020 |
GX71,LX70,MX71,SX70,YX7# COLD SPEC |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-22010 |
GX71,LX70,MX71,SX70,YX7# LH |
17 | ||
| 67867-22020 |
GX71,LX70,MX71,SX70,YX7# RH |
17 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67869-30020 |
GX71,LX70,MX71,SX70,YX7# |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-22190 |
GX71,LX70,SX70,YX7# |
1 | ||
| 67871-22120 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 67871-22130 |
GX71,LX70,MX71,SX70,YX70 COLD SPEC |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-22120 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 67872-22190 |
GX71,LX70,SX70,YX7# |
1 | ||
| 67872-22130 |
GX71,LX70,MX71,SX70,YX70 COLD SPEC |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-22200 |
GX71,LX70,MX71,SX70..AVT,GT,XG *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,*TT,T=5.0,BRONZE |
1 | ||
| 68113-22200 |
GX71,LX70,SX70..AVT,GT,SXL,XG *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,*TT,T=5.0,BRONZE |
1 | ||
| 68113-22190 |
GX71,LX70,MX71,SX70,YX7# *TT,厚さ=5.0,*TT,T=5.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-22190 |
GX71,LX70,MX71,SX70,YX7# *TT,厚さ=5.0,*TT,T=5.0 |
1 | ||
| 68114-22200 |
GX71,LX70,MX71,SX70..AVT,GT,XG *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,*TT,T=5.0,BRONZE |
1 | ||
| 68114-22200 |
GX71,LX70,SX70..AVT,GT,SXL,XG *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,*TT,T=5.0,BRONZE |
1 | ||
| 68405 - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-22080 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 68406 - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-22080 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 68407 - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 68408 - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-22050 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-90A00 |
GX71,LX70,MX71,SX70,YX70 |
2 | ||
| 68617-22020 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| 90950-01131 | ||||
| 93540-54010 | ||||
ILLUST NO. 2 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-9161503 |
GX71,LX70,SX70..SXL,XG GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67630-9161505 |
GX71,LX70,SX70..SXL,XG BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-9162205 |
LX70,SX70..XG XG EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-9162203 |
LX70,SX70..XG XG EXTRA,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67630-9161502 |
GX71,LX70,SX70..SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 67630-9161503 |
SX70..XG GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67630-9161905 |
GX71,LX70,SX70..SXL,XG W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-9162202 |
LX70,SX70..XG XG EXTRA,MAROON,MAROON,TRIM3# |
1 | ||
| 67630-9161902 |
GX71,LX70,SX70..SXL,XG W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67630-9161502 |
SX70..XG MAROON,MAROON,TRIM3# |
1 | ||
| 67630-9161903 |
GX71,LX70,SX70..SXL,XG W/*PW,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67630-9161505 |
SX70..XG BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-9162212 |
LX70,SX70..XG XG EXTRA,MAROON,MAROON,TRIM3# |
1 | ||
| 67630-9162404 |
SX70..XG BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67630-9162213 |
LX70,SX70..XG XG EXTRA,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67630-9162215 |
LX70,SX70..XG XG EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67630-9162502 |
LX70,SX70..XG W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67630-9162405 |
SX70..XG BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67630-9162505 |
LX70,SX70..XG W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67630-9162402 |
SX70..XG MAROON,MAROON,TRIM3# |
1 | ||
| 67630-9162602 |
LX70,SX70..XG XG EXTRA,W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67630-9162605 |
LX70,SX70..XG XG EXTRA,W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67630-9162504 |
LX70,SX70..XG W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67630-9162604 |
LX70,SX70..XG XG EXTRA,W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-22010 |
GX71,LX70,MX71,SX70,YX7# BLACK |
8 | ||
| 67771-30060 |
GX71,LX70,MX71,SX70,YX7# BLUE |
10 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-9161402 |
GX71,LX70,SX70..SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 67640-9162105 |
LX70,SX70..XG XG EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-9161405 |
GX71,LX70,SX70..SXL,XG BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-9162102 |
LX70,SX70..XG XG EXTRA,MAROON,MAROON,TRIM3# |
1 | ||
| 67640-9162103 |
LX70,SX70..XG XG EXTRA,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67640-9161803 |
GX71,LX70,SX70..SXL,XG W/*PW,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67640-9161403 |
GX71,LX70,SX70..SXL,XG GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67640-9161402 |
SX70..XG MAROON,MAROON,TRIM3# |
1 | ||
| 67640-9161403 |
SX70..XG GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67640-9161802 |
GX71,LX70,SX70..SXL,XG W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67640-9161405 |
SX70..XG BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-9162112 |
LX70,SX70..XG XG EXTRA,MAROON,MAROON,TRIM3# |
1 | ||
| 67640-9161805 |
GX71,LX70,SX70..SXL,XG W/*PW,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-9162113 |
LX70,SX70..XG XG EXTRA,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 67640-9162115 |
LX70,SX70..XG XG EXTRA,BEIGE,BEIGE,TRIM4# |
1 | ||
| 67640-9162404 |
LX70,SX70..XG W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67640-9162405 |
LX70,SX70..XG W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67640-9162402 |
LX70,SX70..XG W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67640-9162305 |
SX70..XG BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67640-9162302 |
SX70..XG MAROON,MAROON,TRIM3# |
1 | ||
| 67640-9162502 |
LX70,SX70..XG XG EXTRA,W/*PW,MAROON,MAROON,TRIM3# |
1 | ||
| 67640-9162505 |
LX70,SX70..XG XG EXTRA,W/*PW,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67640-9162504 |
LX70,SX70..XG XG EXTRA,W/*PW,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67640-9162304 |
SX70..XG BLUE,DARK BLUE,TRIM8# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-2203005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
2 | ||
| 67785-2203004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
2 | ||
| 67785-2203015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 67785-2203002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
2 | ||
| 67785-2203003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-22080 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 68240-22060 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
