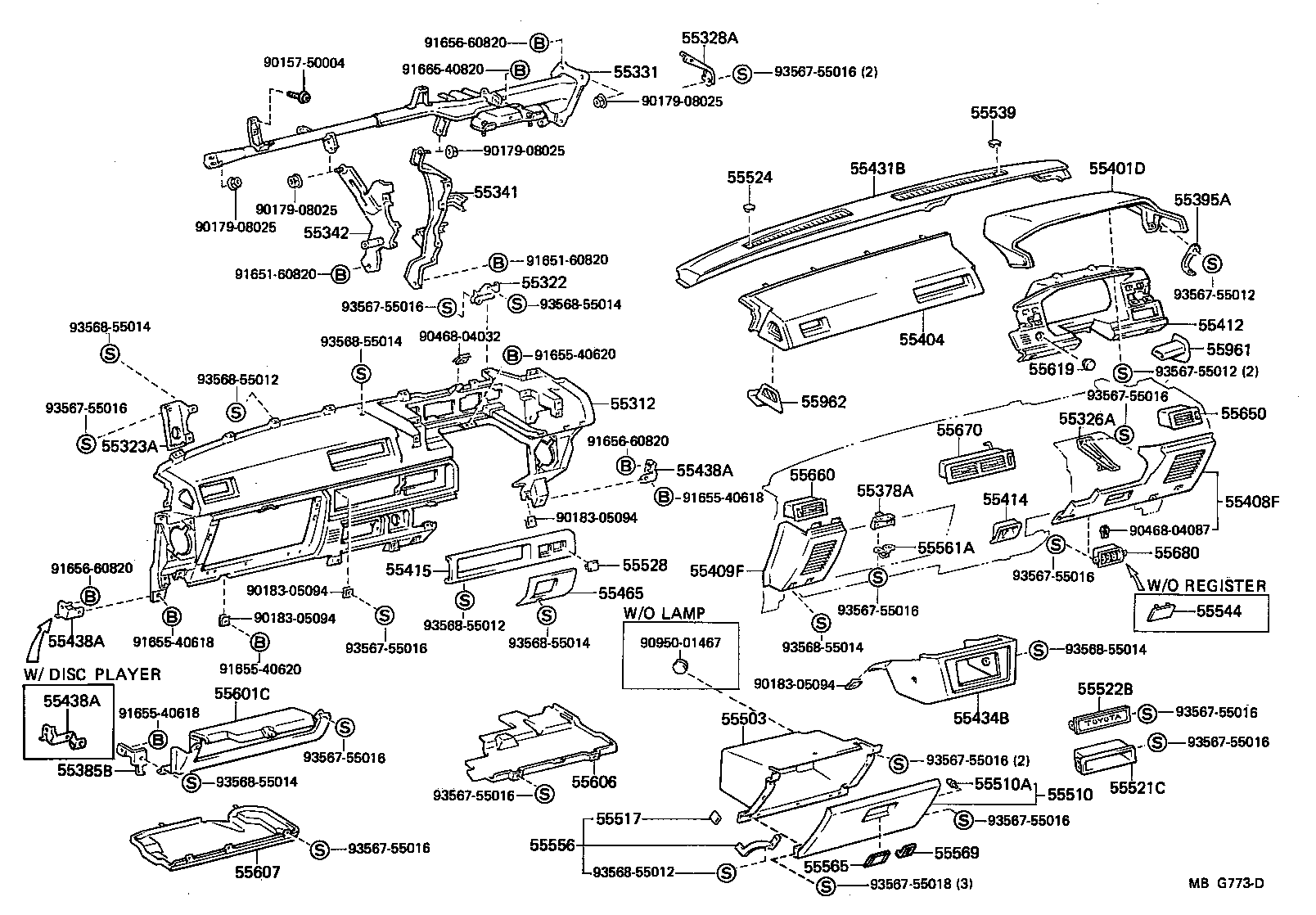

SX70-DTMES (1984)
Toyota Chaser
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-2209005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55312-2209004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55312-2209002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55312-2209003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55312-2209012 |
GX71,LX70,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55312-2209015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55322 - BRACKET, INSTRUMENT PANEL, NO.1 | ||||
| 55321-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55323A - BRACKET, INSTRUMENT PANEL, NO.3 | ||||
| 55323-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55326A - STAY, INSTRUMENT PANEL, NO.1 | ||||
| 55326-22060 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-22020 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 55330-22060 |
GX71,LX70,SX70,YX72 |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-22130 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55342 - BRACE, INSTRUMENT PANEL, NO.2 | ||||
| 55307-22180 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55385B - BRACKET, FINISH PANEL MOUNTING, NO.5 | ||||
| 55385-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55395A - RETAINER, INSTRUMENT PANEL CLAMP | ||||
| 55395-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55401D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55404-9160202 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55404-9160203 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55404-9160215 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55404-9160205 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55404-9160204 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55404-9160212 |
GX71,LX70,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-9160103 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55401-9160112 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55401-9160122 |
GX71,LX70,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55401-9160115 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-9160125 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55401-9160104 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-2202005 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55472-2202002 |
GX71,LX70,SX70..SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55472-2202003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55472-2202015 |
LX70,SX70..XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55472-2202004 |
LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55472-2202002 |
LX70,SX70..XG MAROON,RED,TRIM3# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-2203003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55473-2203002 |
GX71,LX70,SX70..SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55473-2203005 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55473-2203002 |
LX70,SX70..XG MAROON,RED,TRIM3# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55411-2226002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55411-2226115 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55411-2226005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55411-2226003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55411-2226104 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55411-2226102 |
GX71,LX70,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-22050 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-22080 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55311-2213002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55311-2213003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55311-2213015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55311-2213005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55311-2213004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-2206003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55434-2206002 |
GX71,LX70,SX70..SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55434-2206005 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55434-2206015 |
LX70,SX70..XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55434-2206004 |
LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55434-2206002 |
LX70,SX70..XG MAROON,RED,TRIM3# |
1 | ||
| 55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55438-22020 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 55438-22010 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55438-22020 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 55438-22010 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2 | ||||
| 55438-22020 |
GX71,LX70,MX71,SX70,YX7# LH |
1 | ||
| 55438-22010 |
GX71,LX70,MX71,SX70,YX7# RH |
1 | ||
| 55465 - COVER, INSTRUMENT HOLE | ||||
| 55531-2212003 |
GX71,LX70,SX70..5F GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55531-2212005 |
GX71,LX70,SX70..5F..(AVT,GT,SXL,XG,XL) BEIGE,BEIGE,TRIM4# |
1 | ||
| 55531-2212004 |
GX71,LX70,SX70..5F BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55531-2212015 |
GX71,LX70,SX70..5F..(AVT,GT,SXL,XG,XL) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55531-2212002 |
GX71,LX70,SX70..5F..(AVT,GT,SXL,XG) MAROON,RED,TRIM3# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2208002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55550-2208003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55550-2208005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55550-2208015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55550-2208004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-1405001 |
GX71,LX70,SX70,YX7#..KYO,SXL,XG,XL BLACK,BLACK |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-2205005 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55524-2205004 |
GX71,LX70,SX70,YX72..KYO,SXL,XG,XL BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55524-2205002 |
GX71,LX70,SX70..SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55524-2205015 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55524-2205003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-22020 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-2205005 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55539-2205002 |
GX71,LX70,SX70..SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55539-2205004 |
GX71,LX70,SX70,YX72..KYO,SXL,XG,XL BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55539-2205003 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55539-2205015 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55544 - COVER, INSTRUMENT PANEL REGISTER HOLE | ||||
| 55544-3201005 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55544-3201002 |
GX71,LX70,SX70..SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55544-3201023 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55544-3201024 |
GX71,LX70,SX70,YX72..KYO,SXL,XG,XL BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55544-3201015 |
GX71,LX70,SX70..SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-2201002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55565-2201012 |
GX71,LX70,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55565-2201003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55565-2201014 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55565-2201005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55565-2201015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-2202005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55569-2202015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55569-2202003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55569-2202014 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55569-2202012 |
GX71,LX70,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55569-2202002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,MAROON,TRIM3# |
1 | ||
| 55601C - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55601-2206003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55601-2206005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55601-2206015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55601-2206004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55601-2206002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55619-1401001 |
GX71,LX70,SX70..SXL,XG BLACK,BLACK |
1 | ||
| 55619-1401001 |
GX71,LX70,SX70,YX72..KYO,SXL,XG,XL BLACK,BLACK |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-22070 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-2210015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55660-2210003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55660-2210002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55660-2210004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55660-2210005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-2210003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55670-2210002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55670-2210004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55670-2210015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55670-2210005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-32010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2205005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55961-2205002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55961-2205004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55961-2205003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55961-2205015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2205003 |
GX71,LX70,MX71,SX70,YX70 GRAY,COOL GRAY,TRIM1# |
1 | ||
| 55962-2205005 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG,XL BEIGE,BEIGE,TRIM4# |
1 | ||
| 55962-2205004 |
GX71,LX70,SX70,YX72 BLUE,DARK BLUE,TRIM8# |
1 | ||
| 55962-2205002 |
GX71,LX70,MX71,SX70..AVT,GT,SXL,XG MAROON,RED,TRIM3# |
1 | ||
| 55962-2205015 |
GX71,LX70,SX70..AVT,GT,SXL,XG,XL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90157-50004 | ||||
| 90179-08025 | ||||
| 90183-05094 | ||||
| 90468-04032 | ||||
| 90468-04087 | ||||
| 90950-01467 | ||||
| 91651-60820 | ||||
| 91655-40618 | ||||
| 91655-40620 | ||||
| 91656-60820 | ||||
| 91665-40820 | ||||
| 93567-55012 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
