SX70-DTMES (1984)
Toyota Chaser
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53301-91603 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53301-91602 |
GX71,LX70,SX70,YX7# |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
GX71,LX70,MX71,SX70,YX7# L=26 |
2 | ||
| 90541-15004 |
GX71,LX70,MX71,SX70,YX7# L=29 |
2 | ||
| 53341 - SILENCER, HOOD, NO.1 | ||||
| 53341-22070 |
GX71,SX70,YX70..CBR,EFI,LPG |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09008 |
GX71,LX70,MX71,SX70,YX70 TYPE A |
12 | ||
| 90467-0900801 |
GX71,LX70,SX70..CBR,DSL,EFI,TWC BLACK |
16 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-22060 |
GX71,MX71,SX70,YX7# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GX71,LX70,MX71,SX70,YX7# |
7 | ||
| 53385A - RETAINER, HOOD BUMPER, RH | ||||
| 53385-14010 |
GX71,LX70,SX70 |
1 | ||
| 53385-22010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53386A - RETAINER, HOOD BUMPER, LH | ||||
| 53386-14010 |
GX71,LX70,SX70 |
1 | ||
| 53386-22010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-91620 |
GX71,LX70,SX70..SXL,XG,XL W/*DM |
1 | ||
| 53801-91618 |
GX71,LX70,SX70,YX70..KYO,SXL,XG,XL W/*FM |
1 | ||
| 53801-91616 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/*DM |
1 | ||
| 53801-91615 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/*FM |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-91618 |
LX70,SX70,YX70 W/*FM |
1 | ||
| 53802-91615 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/*FM |
1 | ||
| 53802-91616 |
GX71,LX70,SX70..AVT,GT,SXL,XG W/*DM |
1 | ||
| 53802-91620 |
GX71,LX70,SX70..SXL,XG,XL W/*DM |
1 | ||
| 53851 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH | ||||
| 53851-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 53852 - BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH | ||||
| 53852-22010 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-22030 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-22020 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-22040 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22030 |
GX71,LX70,MX71,SX70,YX7# |
8 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-22050 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-22050 |
GX71,LX70,MX71,SX70,YX7# |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53901-22090 |
GX71,LX70,MX71,SX70,YX7# |
1 | ||
| 53931B - PANEL, FRONT END, RH | ||||
| 53903-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53903-91602 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53932B - PANEL, FRONT END, LH | ||||
| 53904-91602 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53904-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| Common parts | ||||
| 90159-50153 | ||||
| 90159-60175 | ||||
| 90189-06005 | ||||
| 90467-11038 | ||||
| 90950-01379 | ||||
| 90950-01473 | ||||
| 91665-40616 | ||||

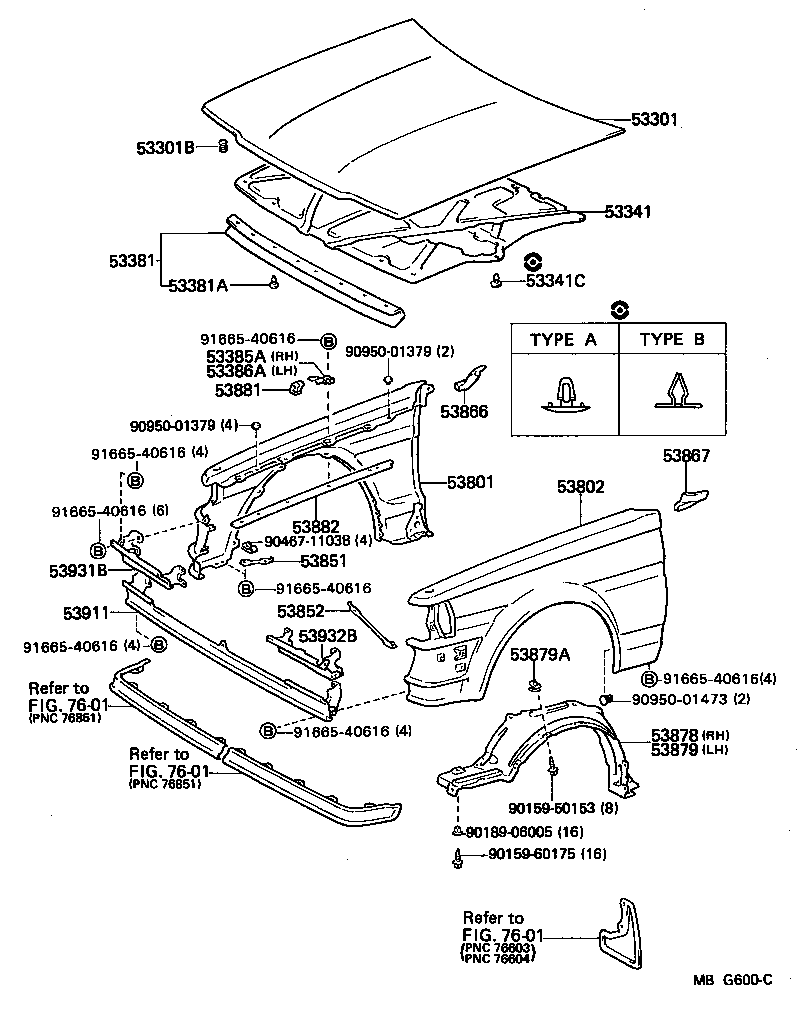

| Linked diagrams | ||||
| 7601 | ||||
