SX70-DTMES (1984)
Toyota Chaser
Production
Aug 1984
-
Aug 1988
Engine
1SU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

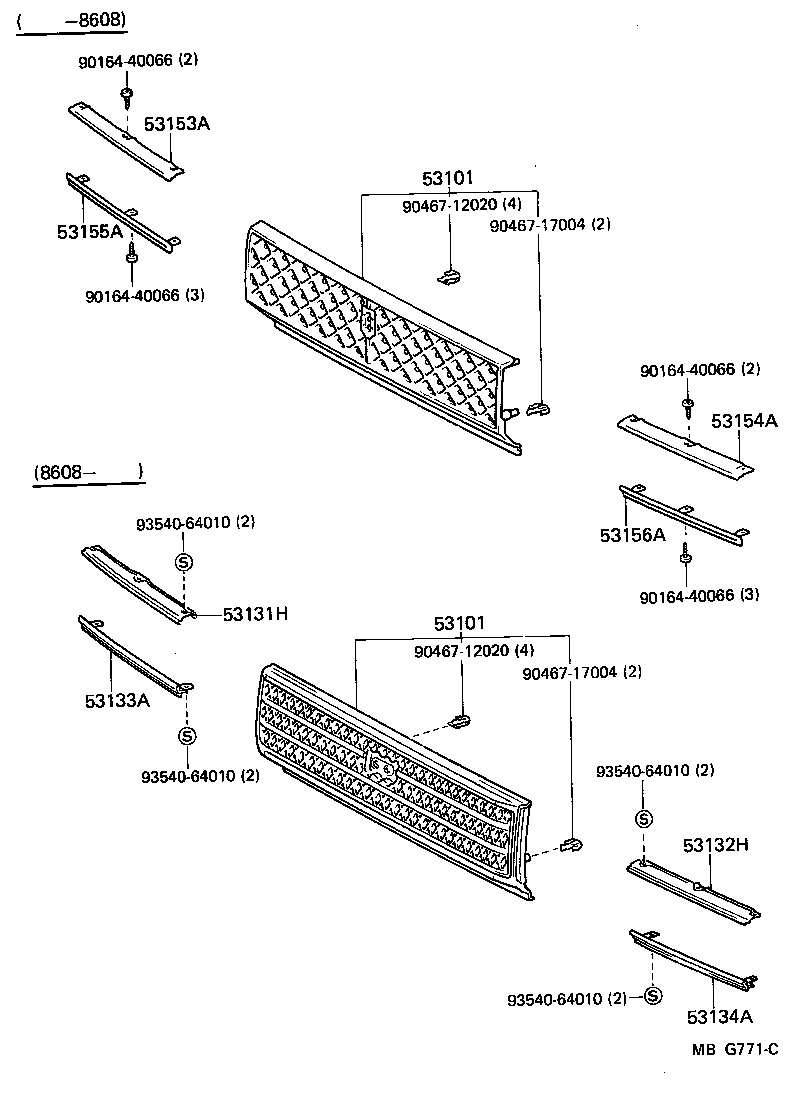

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53101-91602 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53101-91602 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53131H - DOOR, HEADLAMP, UPPER RH | ||||
| 53131-91602 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53132H - DOOR, HEADLAMP, UPPER LH | ||||
| 53132-91602 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53133A - DOOR, HEADLAMP, LOWER RH | ||||
| 53133-91601 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53134A - DOOR, HEADLAMP, LOWER LH | ||||
| 53134-91601 |
GX71,LX70,SX70,YX72 |
1 | ||
| 53153A - MOULDING, HEADLAMP DOOR, UPPER RH | ||||
| 53153-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53154A - MOULDING, HEADLAMP DOOR, UPPER LH | ||||
| 53154-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53155A - MOULDING, HEADLAMP DOOR, LOWER RH | ||||
| 53155-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 53156A - MOULDING, HEADLAMP DOOR, LOWER LH | ||||
| 53156-91601 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| Common parts | ||||
| 90164-40066 | ||||
| 90467-12020 | ||||
| 90467-17004 | ||||
| 93540-64010 | ||||
