SX70-DTMES (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )SX70..XG,XL

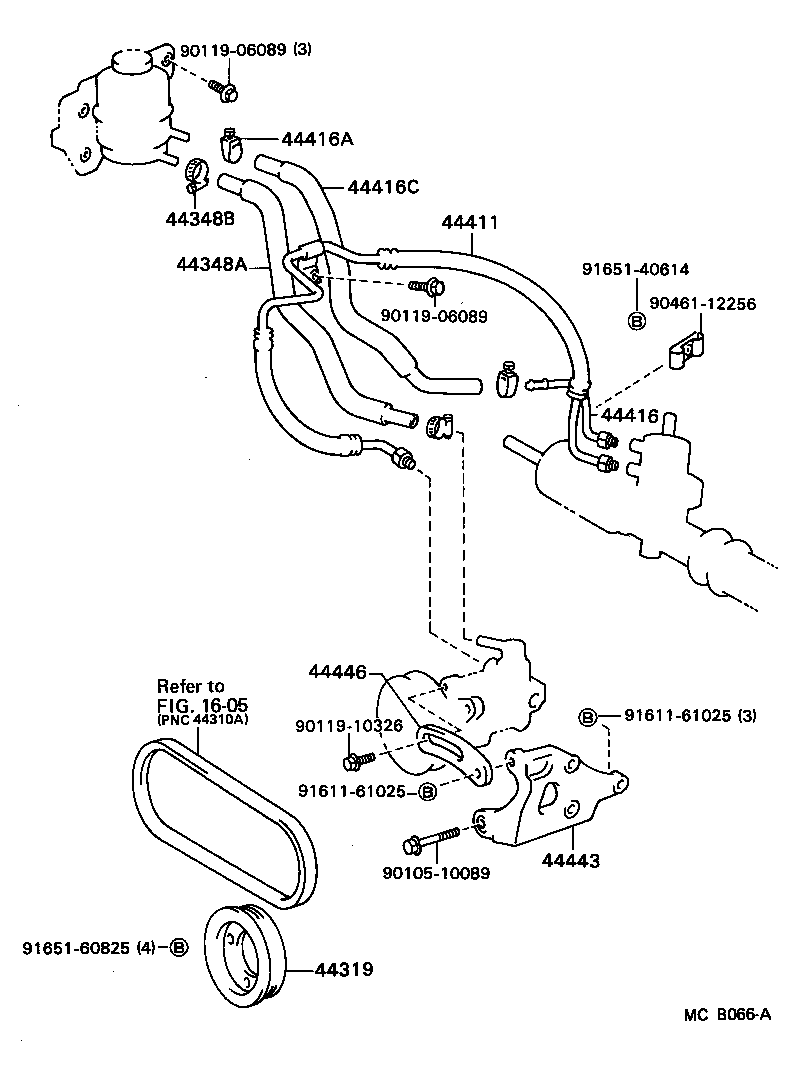

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44411 44416 44416A 44416C 44443 44446 9010510089 9011906089 9011906089 9011910326 9046112256 9161161025 9161161025 9165140614 9165160825
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-14010

SX70

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-22120

SX70

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

GX71,LX70,SX70..CBR,DSL,TD,TWC,TWT

 2
90460-26001

GX71,SX70

 2
44411 - HOSE, PRESSURE FEED
44411-22340

SX70..XG,XL

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22150

GX71,MX71,SX70

 1
44416-22150

SX70

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

SX70..XG,XL

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
44412-22350

SX70..XG,XL

 1
44443 - BRACKET, PUMP
44443-14020

SX70

 1
44446 - STRUT, ADJUSTING
44446-14010

SX70

 1
Common parts
90105-10089
90119-06089
90119-10326
90461-12256
91611-61025
91651-40614
91651-60825
Linked diagrams
1605
