SX70-DTMES (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )1SU

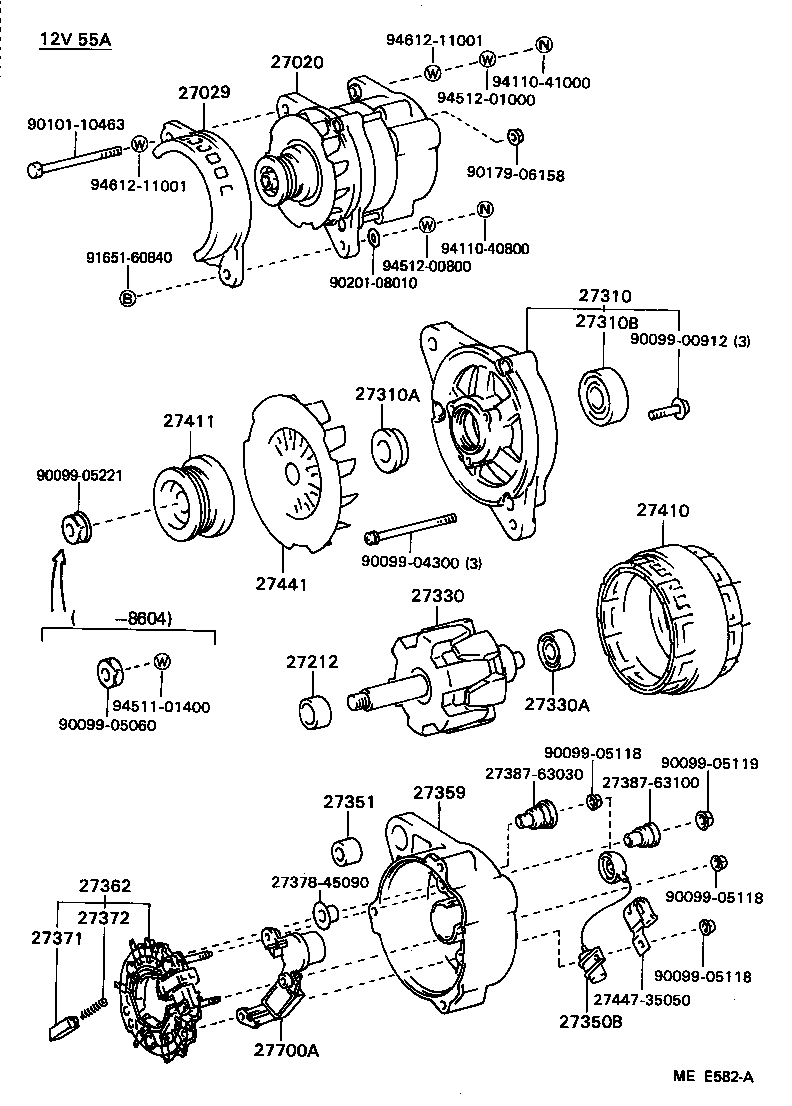

Click highlighted areas on diagram

diagram 27020 27029 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738763030 2738763100 27410 27411 27441 2744735050 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9009905221 9010110463 9017906158 9020108010 9165160840 9411040800 9411041000 9451101400 9451200800 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-63070

1SU..SX70

12V 55A,12V 55A

 1
27029 - COVER, ALTERNATOR
27029-63010

1SU..SX70

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-15150

1SU..SX70

12V 55A

 1
27412-45070

1SU..SX70

12V 55A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-63031

1SU..SX70

12V 55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-16030

1SU..SX70

12V 55A

 1
27412-16040

1SU..SX70

12V 55A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

1SU..SX70

12V 55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-15070

1SU..SX70

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

1SU..SX70

12V 55A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

1SU..SX70

12V 55A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

1SU..SX70

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-63030

1SU..SX70

12V 55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-63030

1SU..SX70

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

1SU..SX70

12V 55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

1SU..SX70

12V 55A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

1SU..SX70

12V 55A

 1
27411 - PULLEY, ALTERNATOR
27411-63011

1SU..SX70

12V 55A

 1
27441 - FAN, ALTERNATOR
27441-63030

1SU..SX70

12V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63030

1SU..SX70

12V 55A

 1
Common parts
27378-45090
27387-63030
27387-63100
27447-35050
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90099-05221
90101-10463
90179-06158
90201-08010
91651-60840
94110-40800
94110-41000
94511-01400
94512-00800
94512-01000
94612-11001
