SX70-DTMES (1984)
Toyota Chaser
Production
Aug 1984
-
Aug 1988
Engine
1SU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

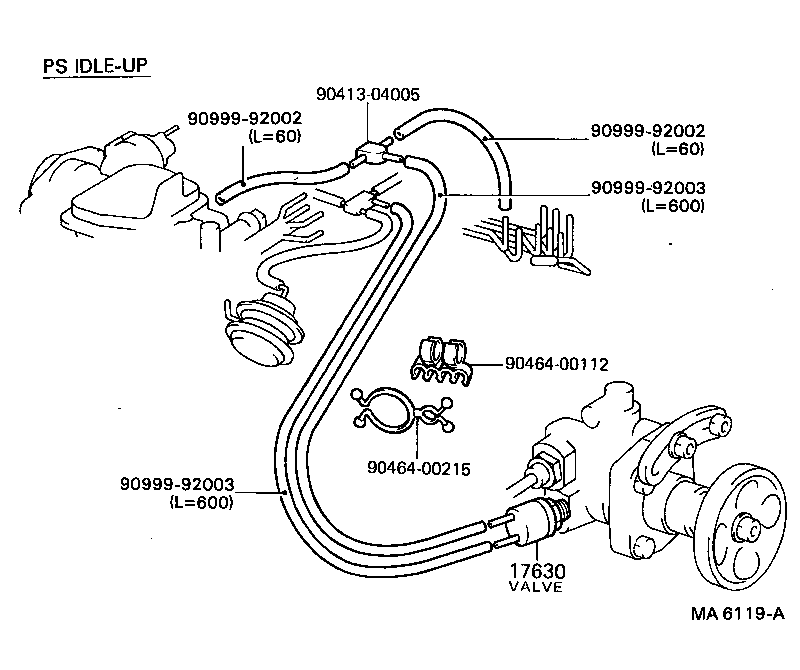

ILLUST NO. 2 OF 2(8408- )1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1SU..SX70 W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00112 | ||||
| 90464-00215 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||

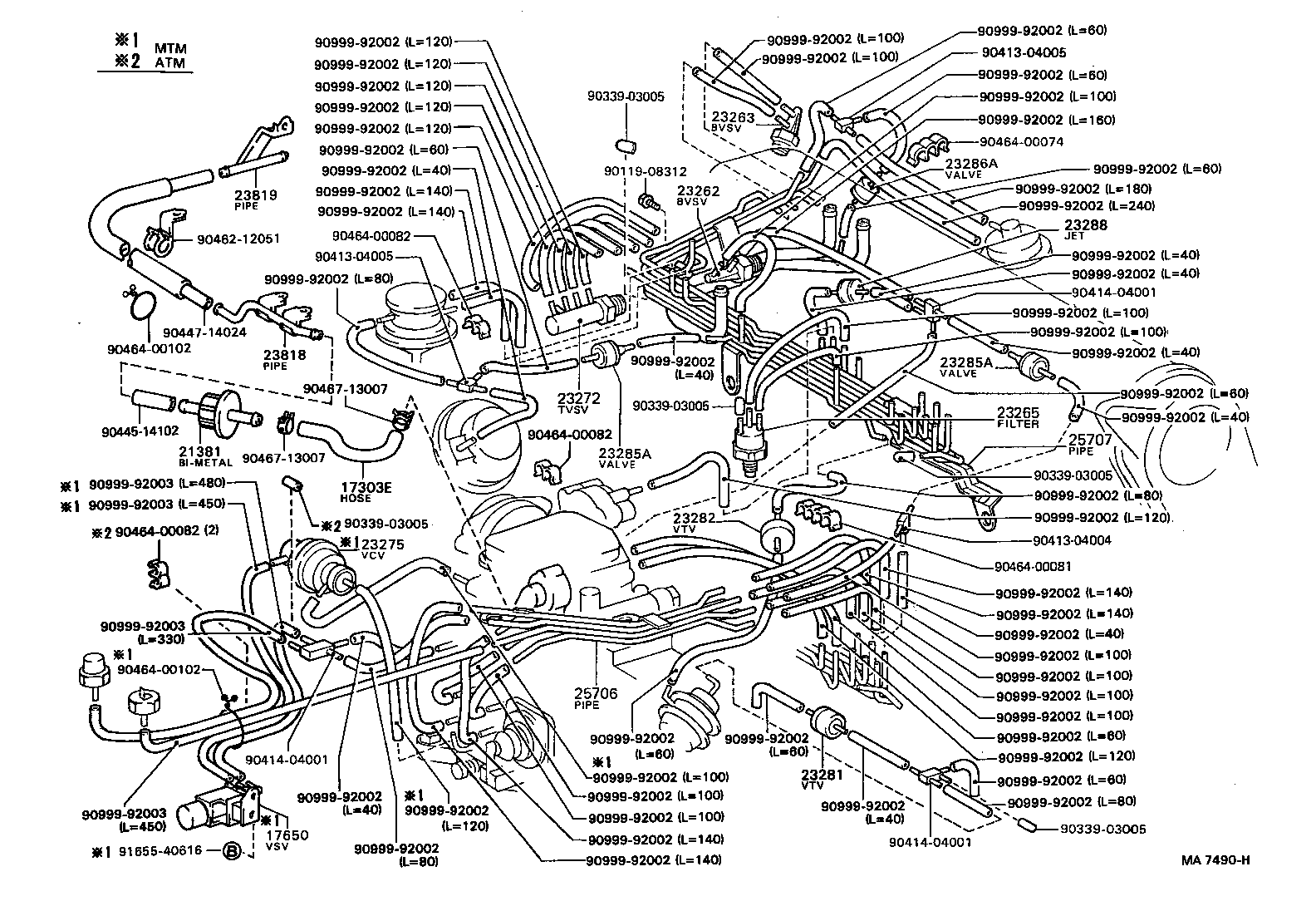

ILLUST NO. 1 OF 2(8408-8608)1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 77791-22020 |
1SU..SX70 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-22170 |
1SU..SX70..5F |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71010 |
1SU..SX70 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05072 |
1SU..SX70 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05013 |
1SU..SX70 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1SU..SX70 |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02072 |
1SU..SX70 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03136 |
1SU..SX70..5F |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
1SU..SX70 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01023 |
1SU..SX70 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SU..SX70 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SU..SX70 |
2 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10065 |
1SU..SX70 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
1SU..SX70 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-63010 |
1SU..SX70 |
1 | ||
| 23819 - PIPE, FUEL VAPOR FEED, NO.2 | ||||
| 23819-63010 |
1SU..SX70 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-63110 |
1SU..SX70 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-63061 |
1SU..SX70 |
1 | ||
| Common parts | ||||
| 90119-08312 | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90445-14102 | ||||
| 90447-14024 | ||||
| 90462-12051 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90467-13007 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91655-40616 | ||||

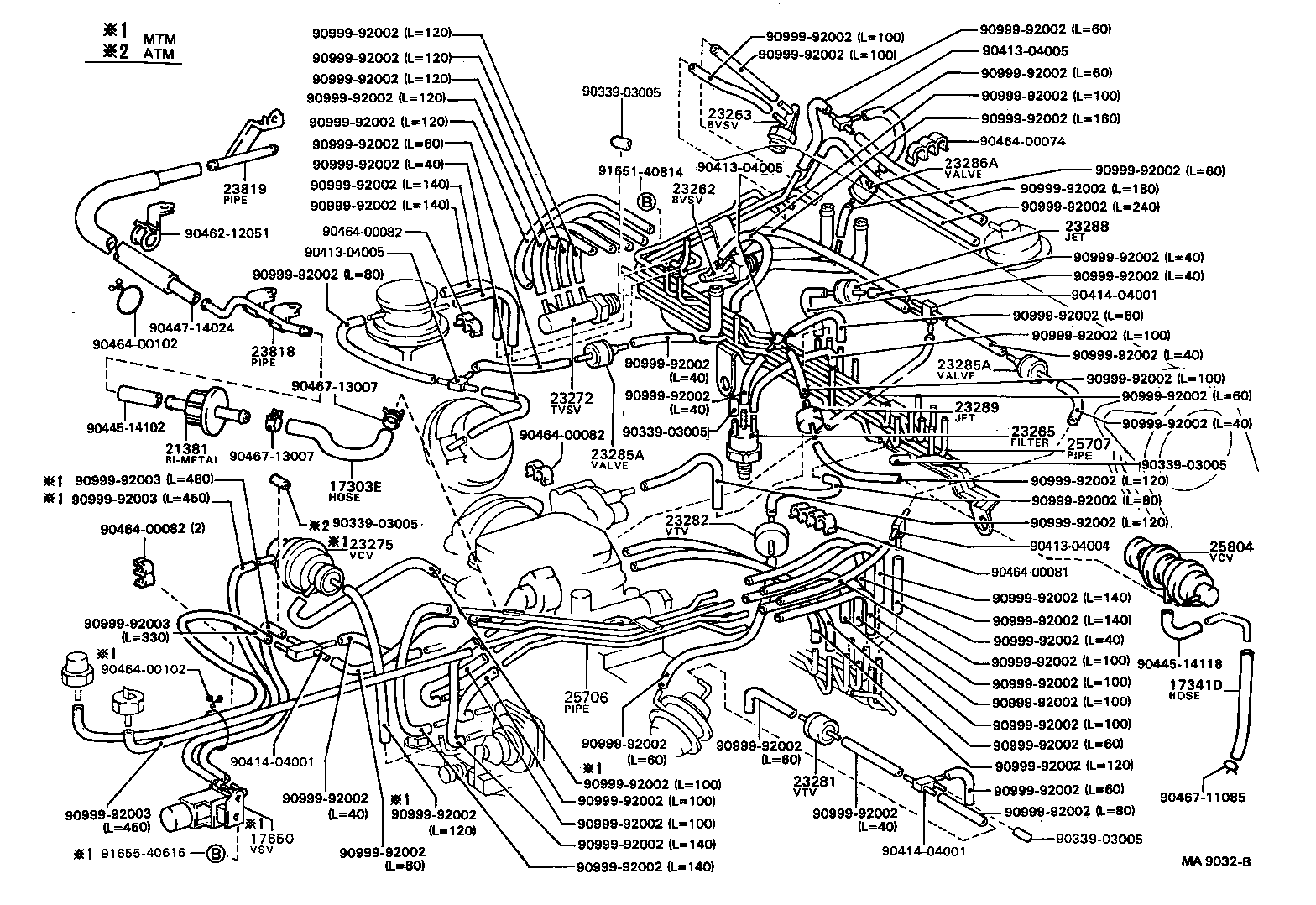

ILLUST NO. 1 OF 2(8608- )1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 77791-22020 |
1SU..SX70 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-63060 |
1SU..SX70 |
1 | ||
| 17341-63061 |
1SU..SX70 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-22170 |
1SU..SX70..5F |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-71010 |
1SU..SX70 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05072 |
1SU..SX70 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05013 |
1SU..SX70 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1SU..SX70 |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02072 |
1SU..SX70 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03136 |
1SU..SX70..5F |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
1SU..SX70 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01023 |
1SU..SX70 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SU..SX70 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SU..SX70 |
2 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10065 |
1SU..SX70 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04003 |
1SU..SX70 |
1 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04003 |
1SU..SX70 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-63010 |
1SU..SX70 |
1 | ||
| 23819 - PIPE, FUEL VAPOR FEED, NO.2 | ||||
| 23819-63010 |
1SU..SX70 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-63110 |
1SU..SX70 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-63061 |
1SU..SX70 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-63010 |
1SU..SX70 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90445-14102 | ||||
| 90445-14118 | ||||
| 90447-14024 | ||||
| 90462-12051 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90467-11085 | ||||
| 90467-13007 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
(8408- )1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
