SX70-DTMES (1984)

Toyota Chaser

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

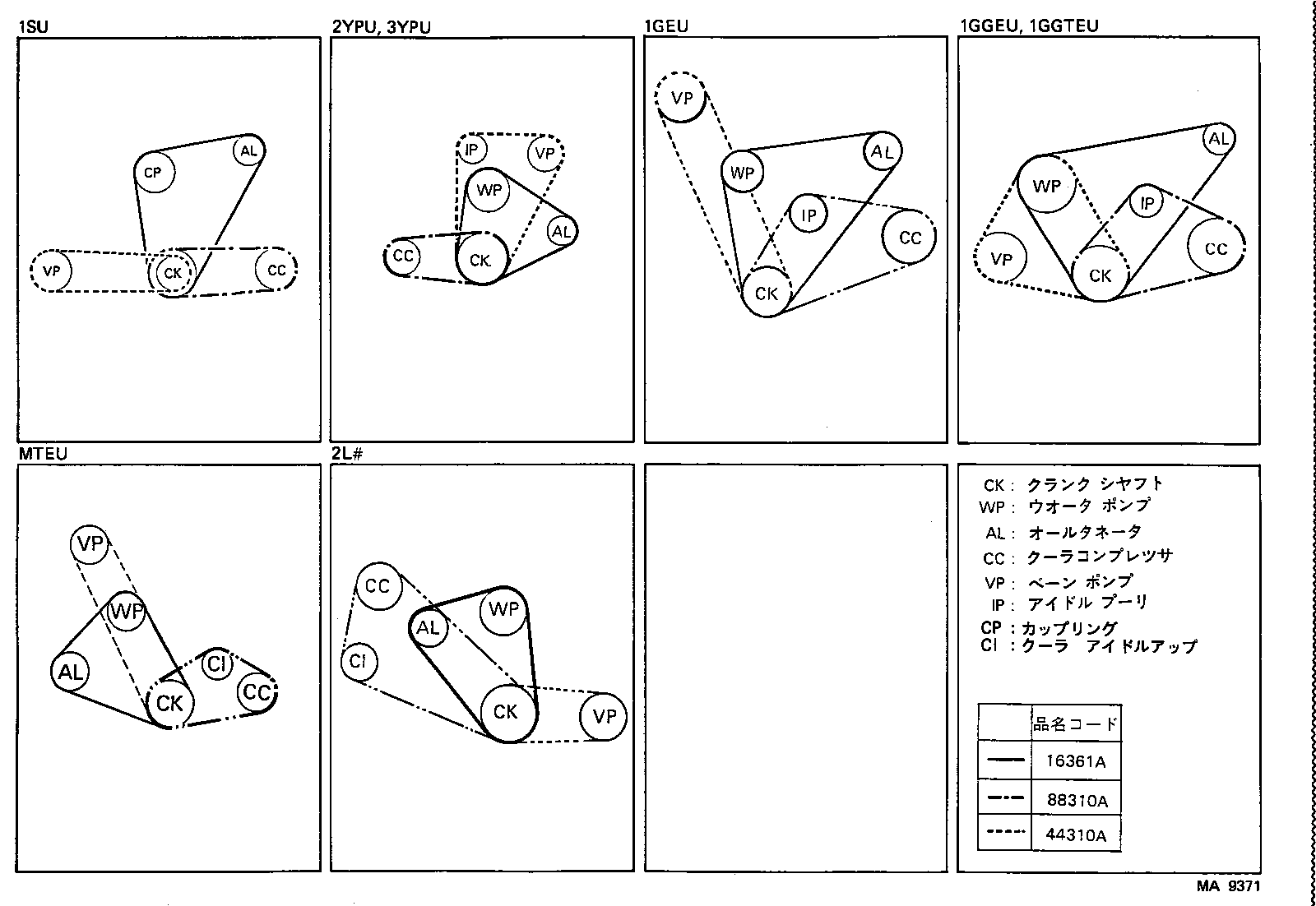

Click highlighted areas on diagram

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99363-01150

1SU..SX70

 1
44310A - BELT, V(FOR VANE PUMP)
99363-00770

SX70

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-50810

SX70

 1
