SX60-DTPES (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

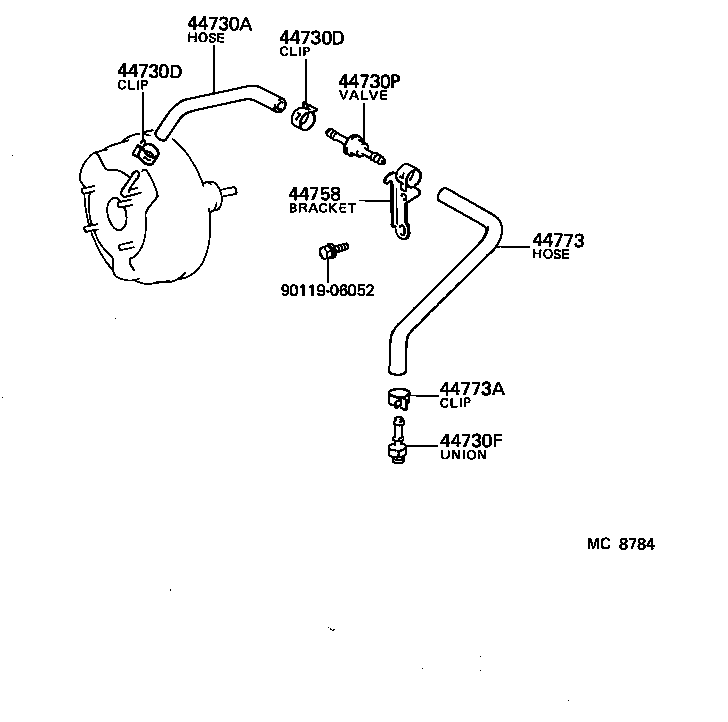

ILLUST NO. 2 OF 2(8208- )SX60

Click highlighted areas on diagram

diagram 44730A 44730D 44730D 44730F 44730P 44758 44773 44773A 9011906052
Part # Description Qty Price
44730A - HOSE, VACUUM, NO.1
44776-22030

GX61,SX60

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

SX60

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-10010

GX61,SX60

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22130

GX61,SX60

 1
44773 - HOSE, VACUUM, NO.2
44773-22320

SX60

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

GX6#,LX6#,MX61,RX63,SX60,TX60

 2
Common parts
90119-06052
