SX60-DTMNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

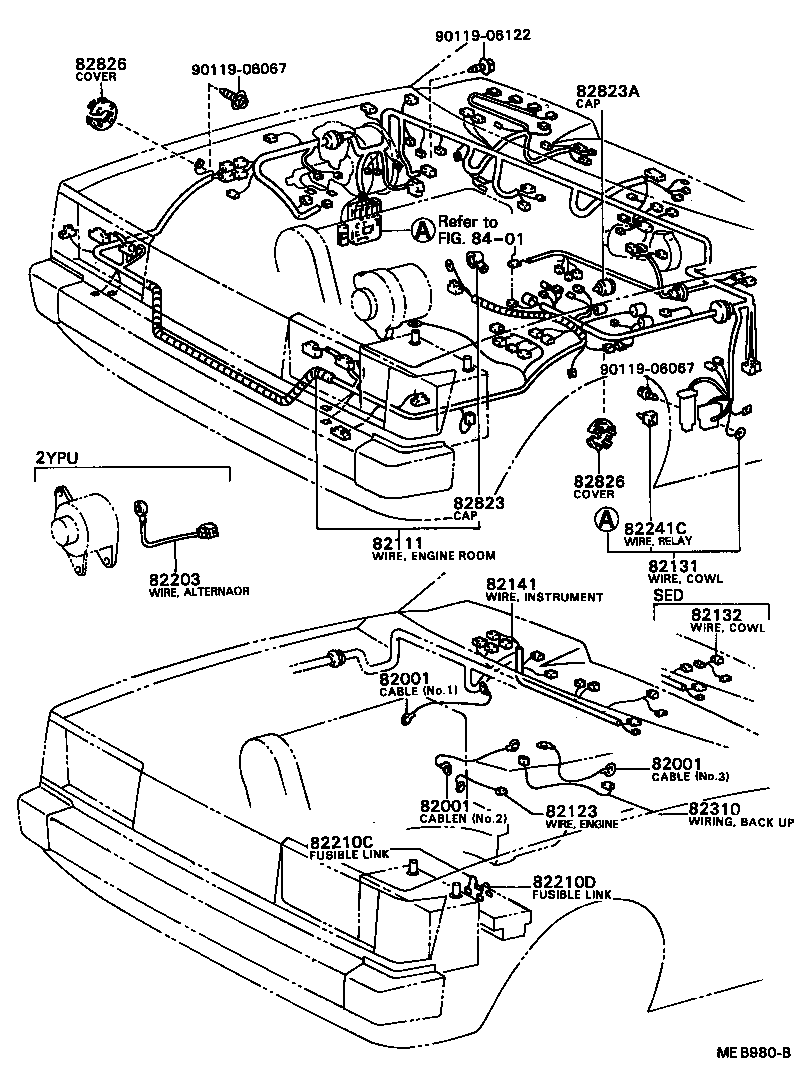

ILLUST NO. 1 OF 5(8208- )SX60

Click highlighted areas on diagram

diagram 82001 82001 82001 82111 82123 82131 82132 82141 82203 82210C 82210D 82241C 82310 82823 82823A 82826 82826 8401 9011906067 9011906067 9011906122
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07176

GX6#,MX61,RX6#,SX60,TX60

L=300,(NO.3)

 1
90980-07119

GX6#,MX61,RX6#,SX60,TX60

L=350,(NO.2)

 1
82001 - CABLE, BOND, NO.1
90980-07176

GX6#,MX61,RX6#,SX60,TX60

L=300,(NO.3)

 1
90980-07119

GX6#,MX61,RX6#,SX60,TX60

L=350,(NO.2)

 1
82001 - CABLE, BOND, NO.1
90980-07176

GX6#,MX61,RX6#,SX60,TX60

L=300,(NO.3)

 1
90980-07119

GX6#,MX61,RX6#,SX60,TX60

L=350,(NO.2)

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-22010

SX60..CBR

 1
82123 - WIRE, ENGINE, NO.3
82123-14020

SX60

 1
82131 - WIRE, COWL
82131-22010

SX60..(DLX,STD,XL)..CBR

 1
82141 - WIRE, INSTRUMENT PANEL
82141-22160

GX61,SX60..HT..(SXL,XG,XL)

 1
82210C - FUSIBLE LINK
90982-08157

GX6#,LX6#,MX61,RX6#,SX60,TX60

FL 0.3 ﾋﾟﾝｸ

 1
82210D - FUSIBLE LINK
90982-08125

GX6#,LX6#,MX61,RX6#,SX60,TX60

1.0ｲｴﾛｰ,長さ=110

 1
82241C - WIRE, RELAY
82241-22020

GX6#,LX6#,RX6#,SX60,TX60..DLX,GT,SGT,STD,SXL,XG,XL

W/O COOLER RELAY

 1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-23020

SX60..5F..CBR

 1
82823 - CAP, TERMINAL, NO.1
82823-12020

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
82823A - CAP, TERMINAL, NO.2
82823-30020

GX6#,LX65,MX61,RX6#,SX60

 1
82826 - COVER, WIRING HARNESS HOLE
82817-22280

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
82826 - COVER, WIRING HARNESS HOLE
82817-22280

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
Common parts
90119-06067
90119-06122
Linked diagrams
8401
