SX60-DTMNS (1982)
Toyota Chaser
Production
Aug 1982
-
Jul 1984
Engine
1SU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8208- )L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-63010 |
1SU..SX60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-63010 |
1SU..SX60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-25010 |
1SU..SX60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-63010 |
1SU..SX60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
1SU..SX60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
1SU..SX60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-63020 |
1SU..SX60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01012 |
1SU..SX60 BODY SIDE |
1 | ||
| 90460-01016 |
1SU,2YPU..SX60 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01012 |
1SU..SX60 BODY SIDE |
1 | ||
| 90460-01016 |
1SU,2YPU..SX60 AIR CLEANER SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-70010 |
1SU..SX60 |
1 | ||
| Common parts | ||||
| 90119-06108 | ||||
| 90159-60176 | ||||
| 90540-09080 | ||||
| 90560-06456 | ||||
(8208- )1SU

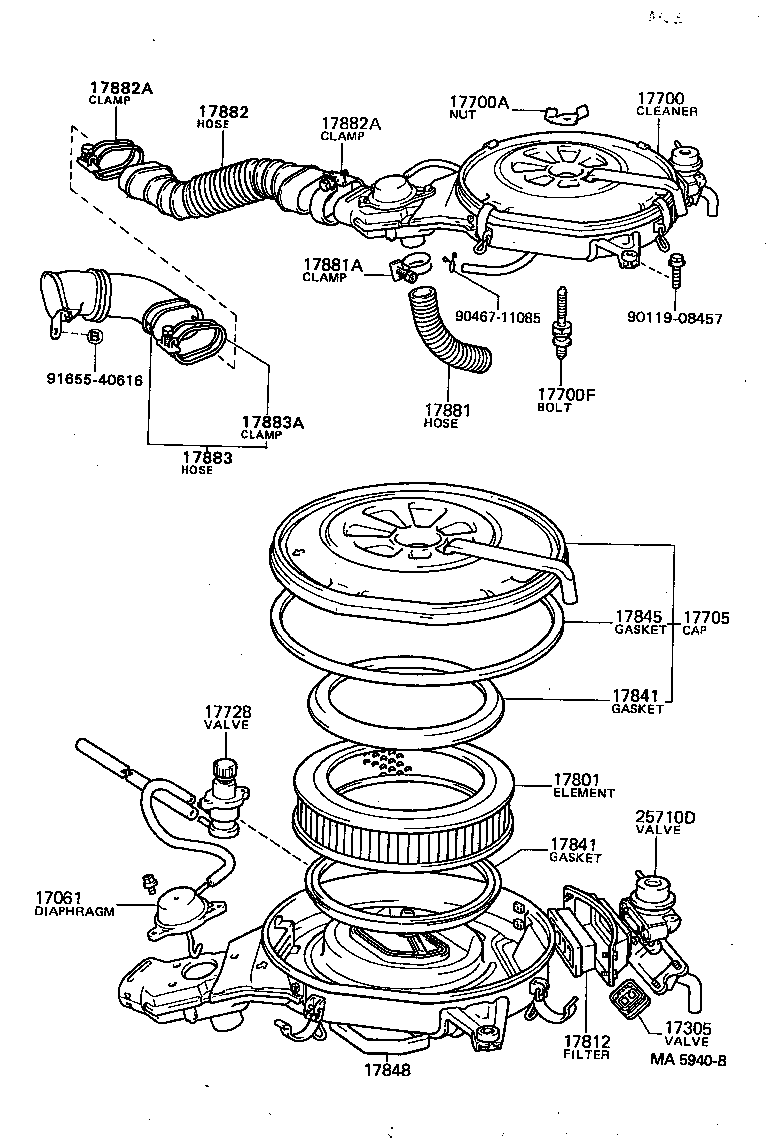

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-63010 |
1SU..SX60 |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17305-31010 |
1SU..SX60 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-63010 |
1SU..SX60 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06009 |
1SU..SX60 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06021 |
1SU..SX60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-63010 |
1SU..SX60 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-63010 |
1SU..SX60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-25010 |
1SU..SX60 |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-63010 |
1SU..SX60 |
1 | ||
| 17812-15010 |
1SU..SX60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-63010 |
1SU..SX60 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-63010 |
1SU..SX60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-37020 |
1SU..SX60 *G,L=1020 |
1 | ||
| 17845-63010 |
1SU..SX60 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-37011 |
1SU..SX60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-63010 |
1SU..SX60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-80001 |
1SU..SX60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-63020 |
1SU..SX60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01012 |
1SU..SX60 BODY SIDE |
1 | ||
| 90460-01016 |
1SU,2YPU..SX60 AIR CLEANER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01012 |
1SU..SX60 BODY SIDE |
1 | ||
| 90460-01016 |
1SU,2YPU..SX60 AIR CLEANER SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-70010 |
1SU..SX60 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01012 |
1SU..SX60 |
1 | ||
| 25710D - VALVE ASSY, AIR SWITCHING | ||||
| 25710-63010 |
1SU..SX60 |
1 | ||
| Common parts | ||||
| 90119-08457 | ||||
| 90467-11085 | ||||
| 91655-40616 | ||||
