Toyota Chaser SX60 CYLINDER BLOCK

SX60-DTMNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984

Engine 1SU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8009-8304)L

Click highlighted areas on diagram

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69086	1SU..SX60	08/1982 - 07/1984	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09076	1SU..SX60	08/1982 - 07/1984	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-14003	1SU..SX60	08/1982 - 07/1984	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028	1SU..SX60 *10-1.25PX67-18	09/1980 - 07/1984	14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500	1SU..SX60 OD=35	09/1980 - 07/1984	10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000	1SU..SX60 OD=40	09/1980 - 07/1984	6
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003	1SU..SX60 長さ=14,外径=6	09/1980 - 07/1984	2
11452 - GUIDE, OIL LEVEL GAGE
11452-63010	1SU..SX60	08/1982 - 07/1984	1
12101 - PAN SUB-ASSY, OIL
12101-69055	1SU..SX60	08/1982 - 07/1984	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089	1SU,2YPU..SX60	09/1980 - 07/1984	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244	1SU,2YPU..SX60	09/1980 - 07/1984	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-63010	1SU..SX60	08/1982 - 07/1984	1
Common parts
90116-08071
90119-08156
90179-08040
93381-18016
Linked diagrams

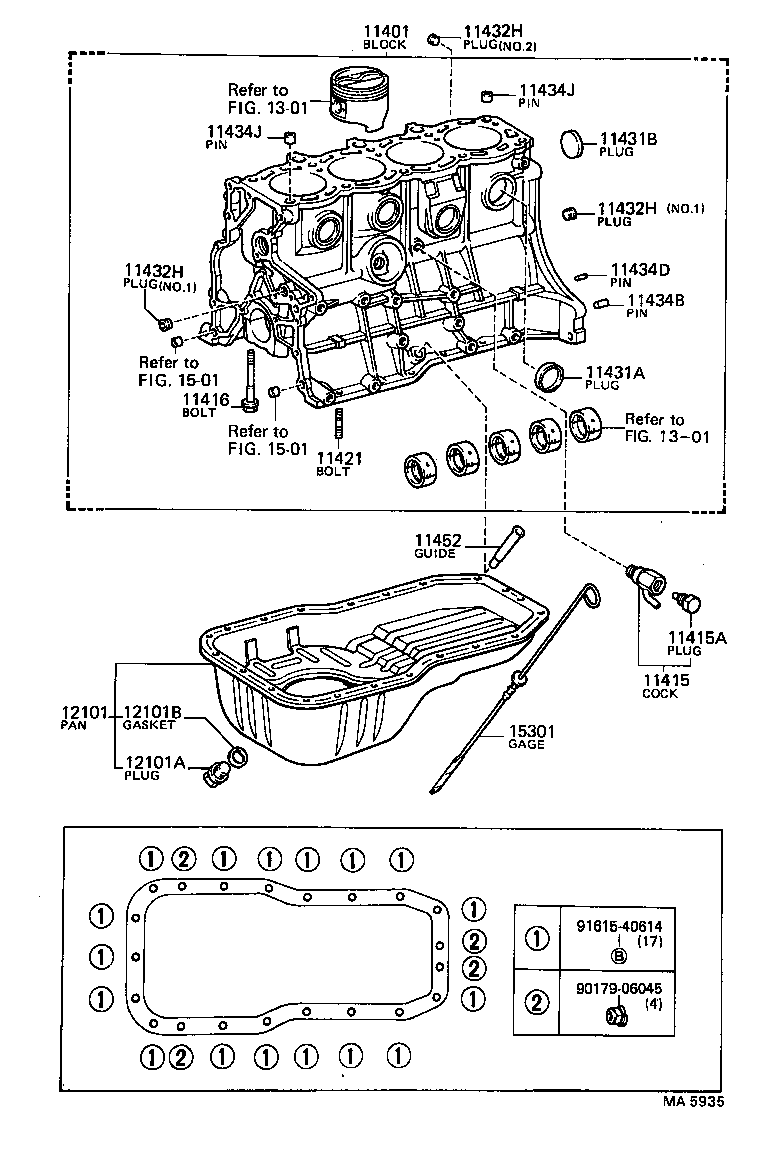

1301

(8208- )1SU

Click highlighted areas on diagram

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69086	1SU..SX60	08/1982 - 07/1984	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09076	1SU..SX60	08/1982 - 07/1984	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-14003	1SU..SX60	08/1982 - 07/1984	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028	1SU..SX60 *10-1.25PX67-18	09/1980 - 07/1984	14
11421 - BOLT, STUD(FOR OIL PAN)
90116-06022	1SU..SX60	08/1982 - 07/1984	2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500	1SU..SX60 OD=35	09/1980 - 07/1984	10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000	1SU..SX60 OD=40	09/1980 - 07/1984	6
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008	1SU..SX60 NO.1	08/1982 - 07/1984	2
90344-52003	1SU..SX60 NO.2	08/1982 - 07/1984	1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008	1SU..SX60 NO.1	08/1982 - 07/1984	2
90344-52003	1SU..SX60 NO.2	08/1982 - 07/1984	1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53008	1SU..SX60 NO.1	08/1982 - 07/1984	2
90344-52003	1SU..SX60 NO.2	08/1982 - 07/1984	1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	1SU,2YPU..SX60 長さ=22,外径=10,L=22,OD=10	09/1980 - 07/1984	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003	1SU..SX60 長さ=14,外径=6	09/1980 - 07/1984	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017	1SU..SX60	09/1980 - 07/1984	2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017	1SU..SX60	09/1980 - 07/1984	2
11452 - GUIDE, OIL LEVEL GAGE
11452-63010	1SU..SX60	08/1982 - 07/1984	1
12101 - PAN SUB-ASSY, OIL
12101-69055	1SU..SX60	08/1982 - 07/1984	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089	1SU,2YPU..SX60	09/1980 - 07/1984	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244	1SU,2YPU..SX60	09/1980 - 07/1984	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-63010	1SU..SX60	08/1982 - 07/1984	1
Common parts
90179-06045
91615-40614
Linked diagrams
1301
1501

(8304- )L

Click highlighted areas on diagram

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69086	1SU..SX60	08/1982 - 07/1984	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09076	1SU..SX60	08/1982 - 07/1984	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90109-14003	1SU..SX60	08/1982 - 07/1984	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028	1SU..SX60 *10-1.25PX67-18	09/1980 - 07/1984	14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500	1SU..SX60 OD=35	09/1980 - 07/1984	10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000	1SU..SX60 OD=40	09/1980 - 07/1984	6
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003	1SU..SX60 長さ=14,外径=6	09/1980 - 07/1984	2
11452 - GUIDE, OIL LEVEL GAGE
11452-63010	1SU..SX60	08/1982 - 07/1984	1
12101 - PAN SUB-ASSY, OIL
12101-69055	1SU..SX60	08/1982 - 07/1984	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089	1SU,2YPU..SX60	09/1980 - 07/1984	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244	1SU,2YPU..SX60	09/1980 - 07/1984	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-63010	1SU..SX60	08/1982 - 07/1984	1
Common parts
90116-08071
90119-08156
90119-08247
90179-08040
Linked diagrams
1301

SX60-DTMNS (1982)

(8009-8304)L

(8208- )1SU

(8304- )L
