SX60-DEMRS (1983)

Toyota Chaser

Production Feb 1983 - Jul 1984
Engine 2YPU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8302- )LPG

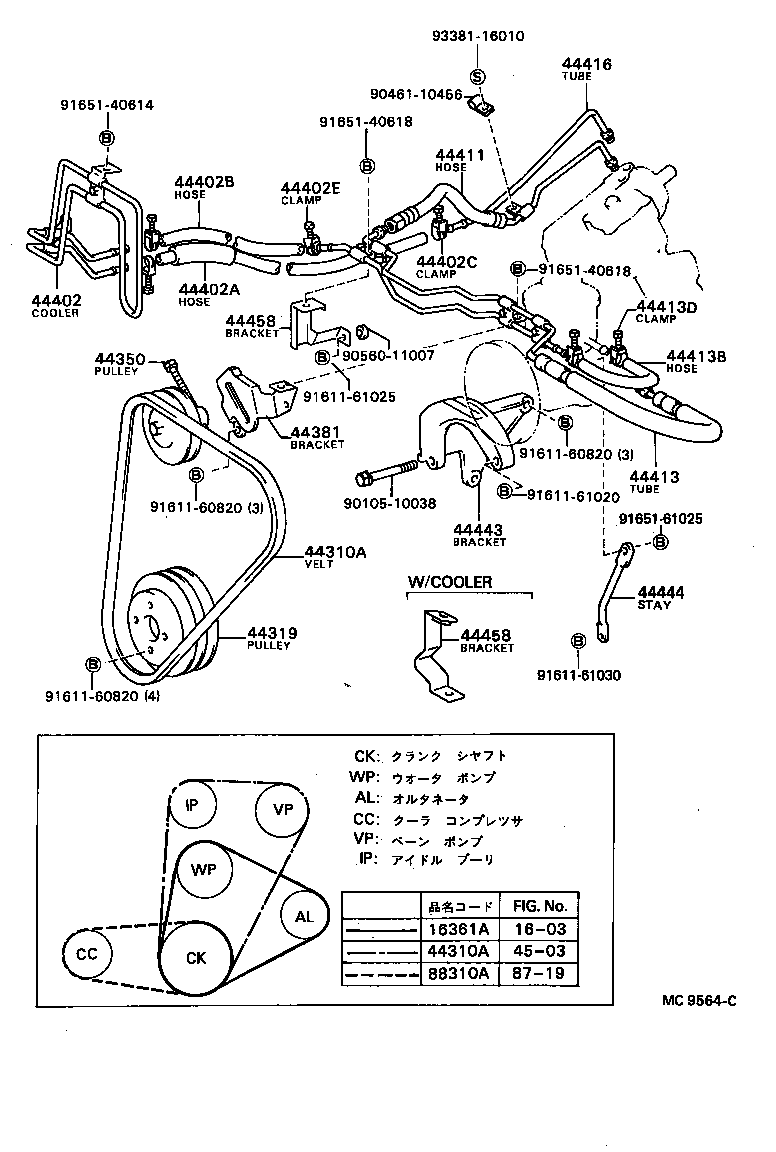

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44319 44350 44381 44402 44402A 44402B 44402C 44402E 44411 44413 44413B 44413D 44416 44443 44444 44458 44458 4503 8719 88310A 9010510038 9046110456 9056011007 9161160820 9161160820 9161160820 9161161020 9161161025 9161161030 9165140614 9165140618 9165140618 9165161025 9338116010
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99364-50830

2YPU..SX60

*30

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01055

SX60..LPG

長さ=1055,*30

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01055

SX60..LPG

長さ=1055,*30

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-20010

SX60..LPG

*30

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20040

SX60..LPG

*30

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-20010

SX60..LPG

*30

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-22170

SX60..LPG

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-22160

SX60..LPG

*30

 1
44411 - HOSE, PRESSURE FEED
44411-22300

SX60..LPG

*30

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-22170

SX60..LPG

*30

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
44412-22140

SX60..LPG

*30

 1
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

SX60..LPG

*30

 2
44443 - BRACKET, PUMP
44443-28011

SX60..LPG

*30

 1
44444 - STAY, PUMP, REAR
44444-27010

SX60..LPG

*30

 1
44458 - BRACKET, TUBE SUPPORT, NO.2
44458-22110

SX60..LPG

*30,W/COOLER

 1
44458-22100

SX60..LPG

*30

 1
44458 - BRACKET, TUBE SUPPORT, NO.2
44458-22110

SX60..LPG

*30,W/COOLER

 1
44458-22100

SX60..LPG

*30

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00880

SX60..LPG

*30

 1
Common parts
90105-10038
90461-10456
90560-11007
91611-60820
91611-61020
91611-61025
91611-61030
91651-40614
91651-40618
91651-61025
93381-16010
Linked diagrams
1603
4503
8719
