SX60-DEMRS (1982)
Toyota Chaser
(8208- )SX60

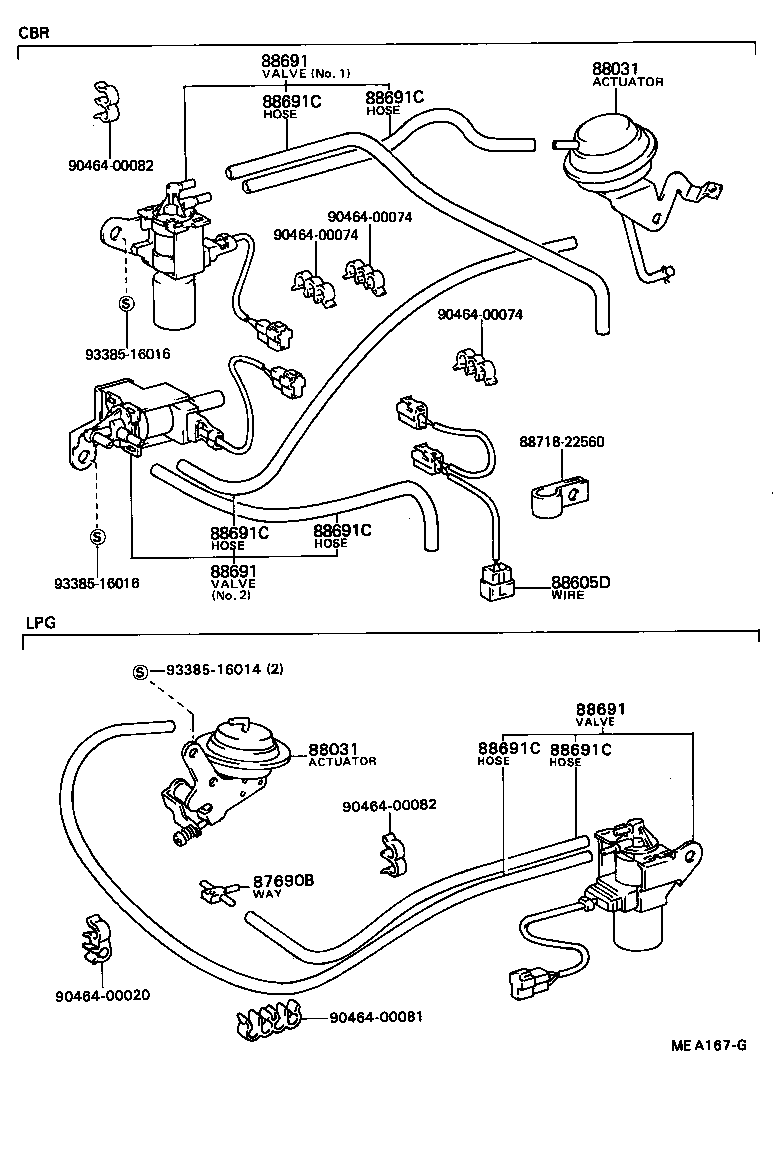

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-14010 |
SX60..CBR |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-14010 |
SX60..CBR |
1 | ||
| 88605D - WIRE, AIR CONDITIONER | ||||
| 88605-22280 |
SX60 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22290 |
SX60..CBR NO.1 |
1 | ||
| 88690-22300 |
SX60..CBR NO.2 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22290 |
SX60..CBR NO.1 |
1 | ||
| 88690-22300 |
SX60..CBR NO.2 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22290 |
SX60..CBR NO.1 |
1 | ||
| 88690-22300 |
SX60..CBR NO.2 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SX60..CBR *H,L=450,ﾏｰｸ=#0,NO.1 |
1 | ||
| 95411-10030 |
SX60..CBR *H,L=160,ﾏｰｸ=#0,NO.2 |
1 | ||
| 95411-19960 |
SX60..CBR *H,L=600,ﾏｰｸ=#*,NO.2 |
1 | ||
| 95411-19930 |
SX60..CBR *H,L=180,ﾏｰｸ=#*,NO.1 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SX60..CBR *H,L=450,ﾏｰｸ=#0,NO.1 |
1 | ||
| 95411-10030 |
SX60..CBR *H,L=160,ﾏｰｸ=#0,NO.2 |
1 | ||
| 95411-19960 |
SX60..CBR *H,L=600,ﾏｰｸ=#*,NO.2 |
1 | ||
| 95411-19930 |
SX60..CBR *H,L=180,ﾏｰｸ=#*,NO.1 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SX60..CBR *H,L=450,ﾏｰｸ=#0,NO.1 |
1 | ||
| 95411-10030 |
SX60..CBR *H,L=160,ﾏｰｸ=#0,NO.2 |
1 | ||
| 95411-19960 |
SX60..CBR *H,L=600,ﾏｰｸ=#*,NO.2 |
1 | ||
| 95411-19930 |
SX60..CBR *H,L=180,ﾏｰｸ=#*,NO.1 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SX60..CBR *H,L=450,ﾏｰｸ=#0,NO.1 |
1 | ||
| 95411-10030 |
SX60..CBR *H,L=160,ﾏｰｸ=#0,NO.2 |
1 | ||
| 95411-19960 |
SX60..CBR *H,L=600,ﾏｰｸ=#*,NO.2 |
1 | ||
| 95411-19930 |
SX60..CBR *H,L=180,ﾏｰｸ=#*,NO.1 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SX60..CBR *H,L=450,ﾏｰｸ=#0,NO.1 |
1 | ||
| 95411-10030 |
SX60..CBR *H,L=160,ﾏｰｸ=#0,NO.2 |
1 | ||
| 95411-19960 |
SX60..CBR *H,L=600,ﾏｰｸ=#*,NO.2 |
1 | ||
| 95411-19930 |
SX60..CBR *H,L=180,ﾏｰｸ=#*,NO.1 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
SX60..CBR *H,L=450,ﾏｰｸ=#0,NO.1 |
1 | ||
| 95411-10030 |
SX60..CBR *H,L=160,ﾏｰｸ=#0,NO.2 |
1 | ||
| 95411-19960 |
SX60..CBR *H,L=600,ﾏｰｸ=#*,NO.2 |
1 | ||
| 95411-19930 |
SX60..CBR *H,L=180,ﾏｰｸ=#*,NO.1 |
1 | ||
| Common parts | ||||
| 88718-22560 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 93385-16014 | ||||
| 93385-16016 | ||||
