SX60-DEMRS (1982)
Toyota Chaser
Production
Aug 1982
-
Jul 1984
Engine
1SU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

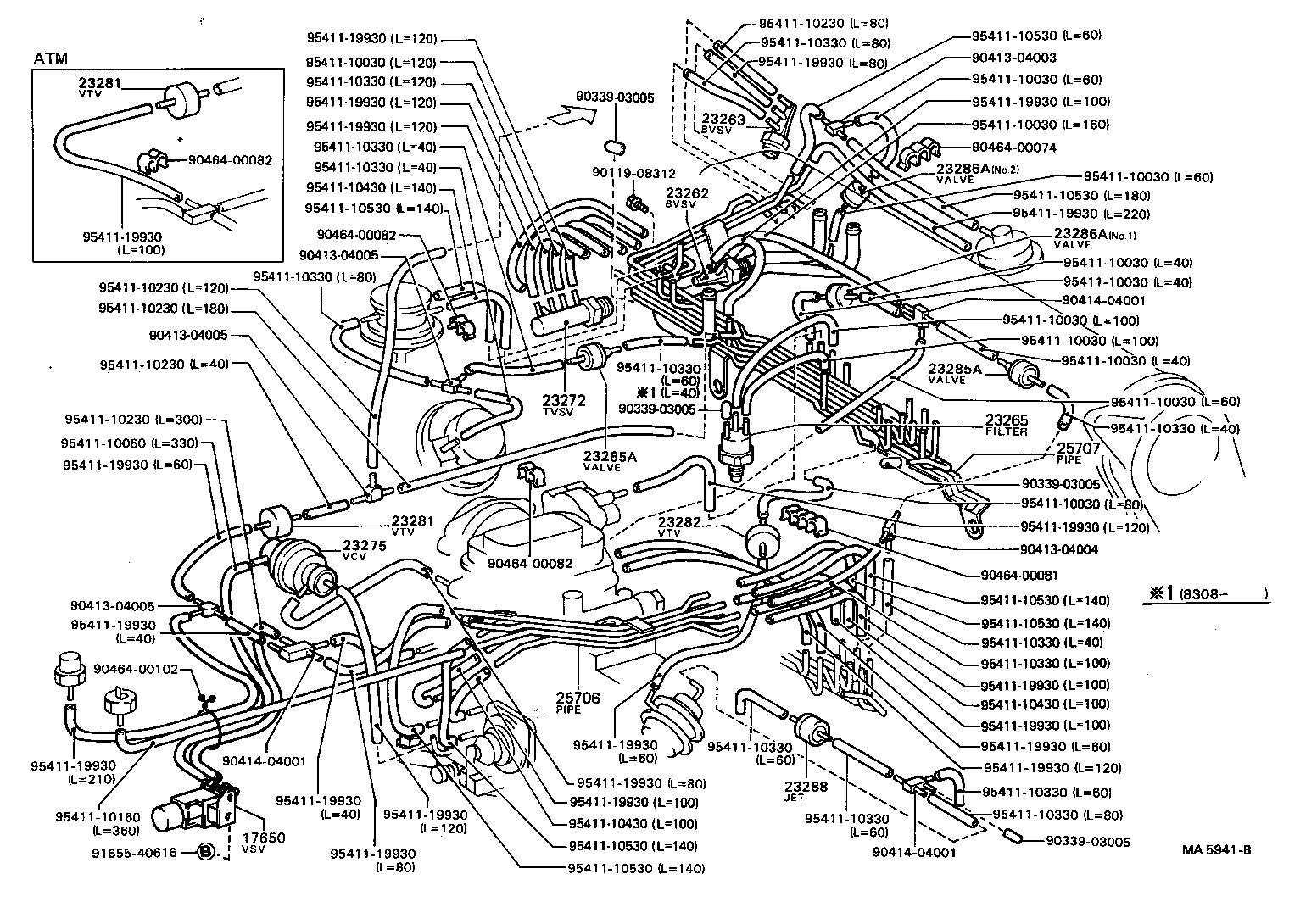

ILLUST NO. 1 OF 2(8208- )1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-22140 |
1SU..SX60..5F |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05064 |
1SU..SX60 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05067 |
1SU..SX60 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
1SU..SX60 |
1 | ||
| 23272 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.2 | ||||
| 90925-02072 |
1SU..SX60 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03136 |
1SU..SX60..5F |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
1SU..SX60..5F |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01027 |
1SU..SX60..5F |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01023 |
1SU..SX60 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SU..SX60 |
2 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
1SU..SX60 |
2 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10038 |
1SU..SX60 NO.1 |
1 | ||
| 90917-10065 |
1SU..SX60 NO.2 |
1 | ||
| 23286A - VALVE, CHECK, NO.2 | ||||
| 90917-10038 |
1SU..SX60 NO.1 |
1 | ||
| 90917-10065 |
1SU..SX60 NO.2 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04017 |
1SU..SX60 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-63020 |
1SU..SX60 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-63060 |
1SU..SX60 |
1 | ||
| 25707-63061 |
1SU..SX60 |
1 | ||
| Common parts | ||||
| 90119-08312 | ||||
| 90339-03005 | ||||
| 90413-04003 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 91655-40616 | ||||
| 95411-10030 | ||||
| 95411-10060 | ||||
| 95411-10160 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-19930 | ||||

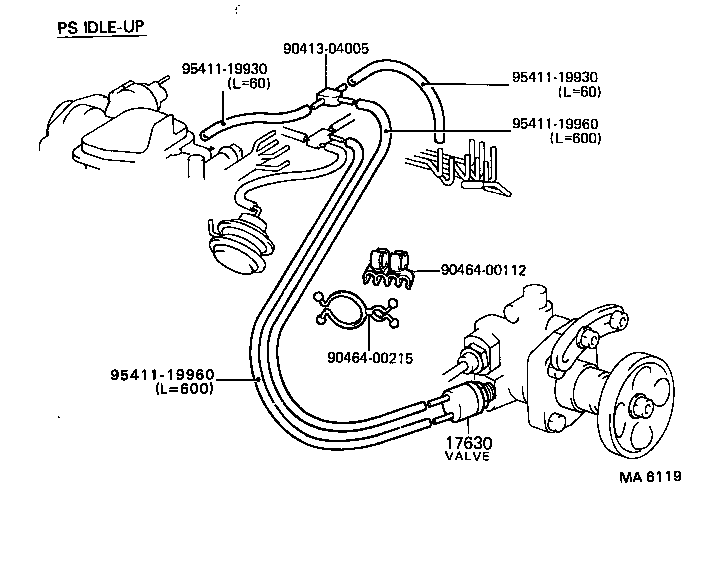

ILLUST NO. 2 OF 2(8208- )1SU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-15010 |
1SU,2YPU..SX60..STD,XG,XL W/PS |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00112 | ||||
| 90464-00215 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
