SX60-DEMRS (1982)
Toyota Chaser

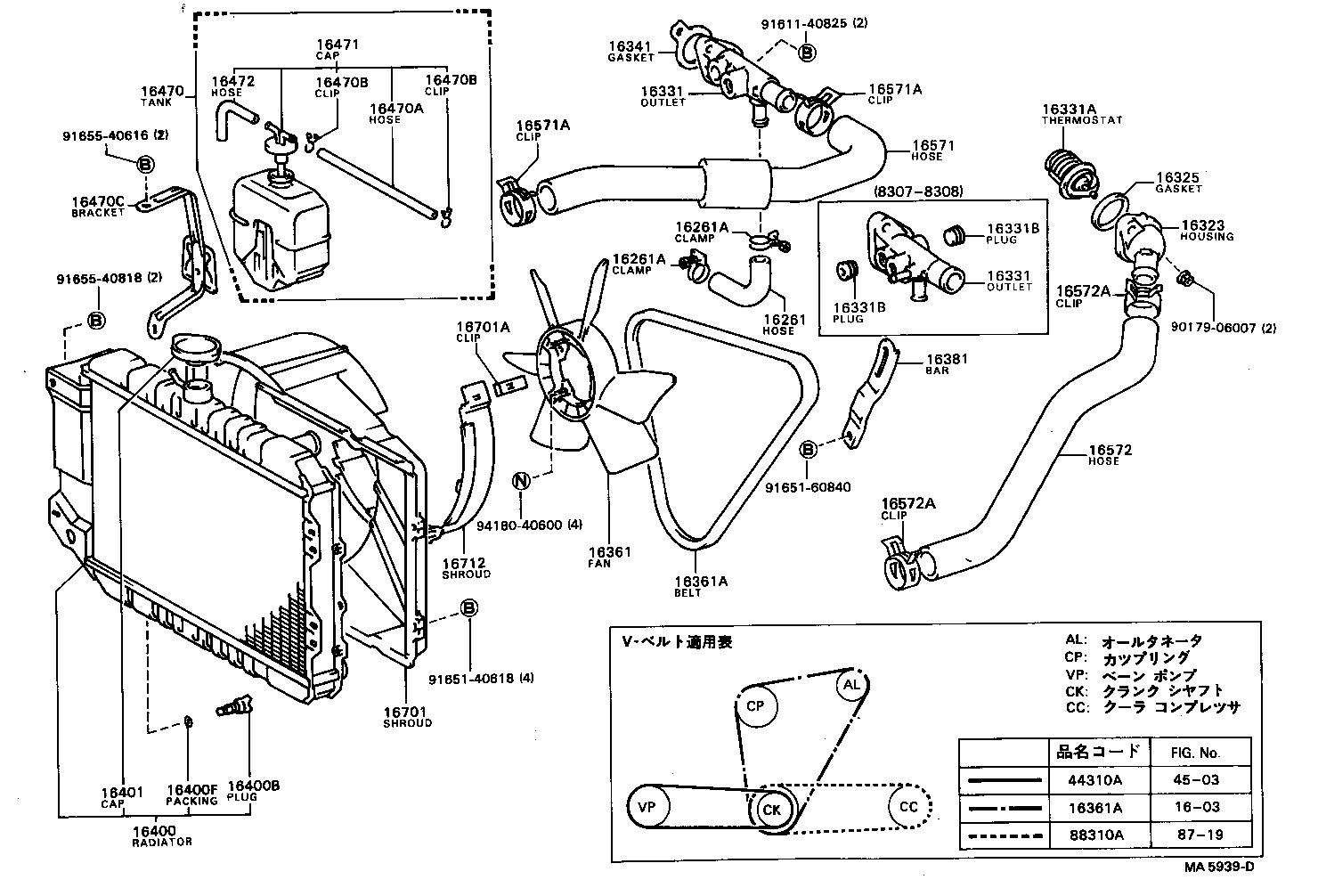

ILLUST NO. 1 OF 2(8208- )1SU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-63010 |
1SU..SX60 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10250 |
1SU..SX60 |
2 | ||
| 96112-10250 |
1SU..SX60 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10250 |
1SU..SX60 |
2 | ||
| 96112-10250 |
1SU..SX60 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-63010 |
1SU..SX60 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1SU,2YPU..SX60 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-63010 |
1SU..SX60 COLD SPEC |
1 | ||
| 16331-63010 |
1SU..SX60..5F |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-63010 |
1SU..SX60 COLD SPEC |
1 | ||
| 16331-63010 |
1SU..SX60..5F |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1SU,2YPU..SX60 *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53011 |
1SU..SX60 COLD SPEC |
2 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53011 |
1SU..SX60 COLD SPEC |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-63010 |
1SU..SX60 |
1 | ||
| 16361 - FAN | ||||
| 16361-45020 |
1SU..SX60 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99363-01150 |
1SU..SX60 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99363-01150 |
1SU..SX60 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-63010 |
1SU..SX60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-63050 |
1SU..SX60..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
1SU,2YPU..SX60 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
1SU,2YPU..SX60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-63020 |
1SU,2YPU..SX60 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12117 |
1SU,2YPU..SX60 *H,L=460 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1SU,2YPU..SX60 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1SU,2YPU..SX60 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-70020 |
1SU,2YPU..SX60 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-63020 |
1SU,2YPU..SX60 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22030 |
1SU,2YPU..SX60 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-63030 |
1SU..SX60 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
1SU..SX60 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
1SU..SX60 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
1SU..SX60 WATER OUTLET SIDE |
1 | ||
| 90467-37001 |
1SU..SX60 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-63030 |
1SU..SX60 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1SU..SX60 RADIATOR SIDE |
1 | ||
| 90467-34001 |
1SU..SX60 WATER INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37001 |
1SU..SX60 RADIATOR SIDE |
1 | ||
| 90467-34001 |
1SU..SX60 WATER INLET SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-63040 |
1SU..SX60 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1SU..SX60 W/COOLER |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54050 |
1SU..SX60 W/COOLER |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99363-00770 |
SX60..STD,XG,XL |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-50810 |
SX60..CBR |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 91611-40825 | ||||
| 91651-40618 | ||||
| 91651-60840 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||

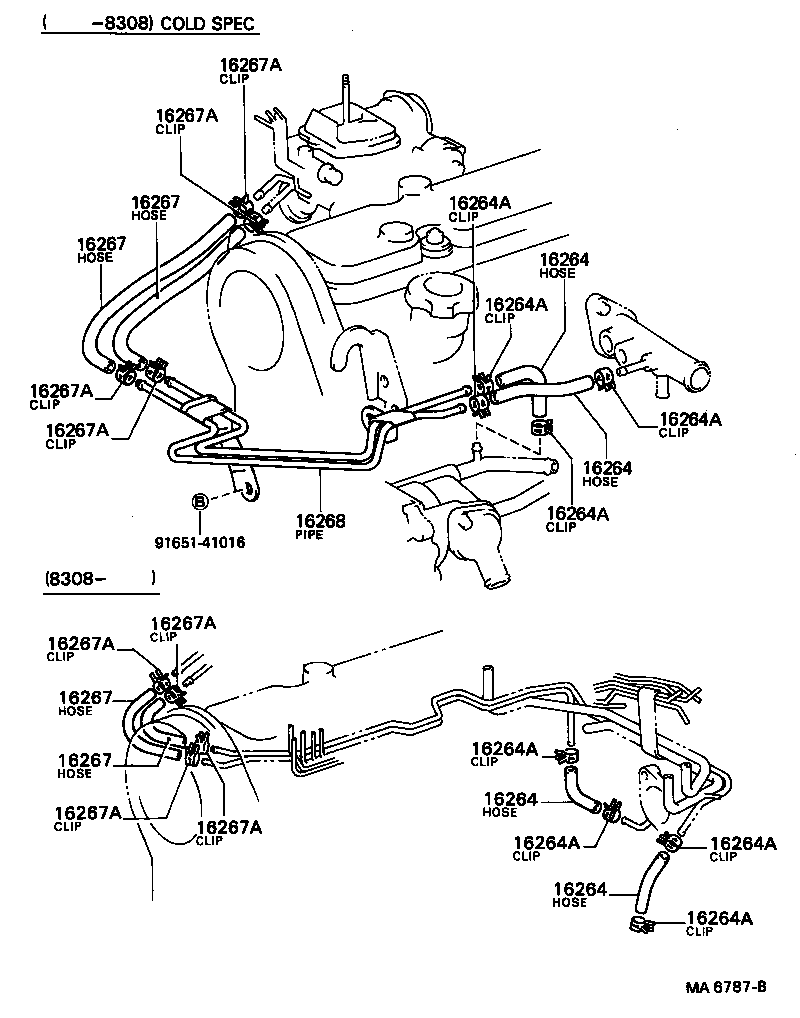

ILLUST NO. 2 OF 2(8307- )1SU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99553-00200 |
1SU..SX60 COLD SPEC |
2 | ||
| 99555-00140 |
1SU..SX60 *H,L=140 |
2 | ||
| 99553-00130 |
1SU..SX60 L=130 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99553-00200 |
1SU..SX60 COLD SPEC |
2 | ||
| 99555-00140 |
1SU..SX60 *H,L=140 |
2 | ||
| 99553-00130 |
1SU..SX60 L=130 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99553-00200 |
1SU..SX60 COLD SPEC |
2 | ||
| 99555-00140 |
1SU..SX60 *H,L=140 |
2 | ||
| 99553-00130 |
1SU..SX60 L=130 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99553-00200 |
1SU..SX60 COLD SPEC |
2 | ||
| 99555-00140 |
1SU..SX60 *H,L=140 |
2 | ||
| 99553-00130 |
1SU..SX60 L=130 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99553-00100 |
1SU..SX60 L=100 |
1 | ||
| 99553-00200 |
1SU..SX60 COLD SPEC |
2 | ||
| 99555-00100 |
1SU..SX60 L=100 |
1 | ||
| 99553-00130 |
1SU..SX60 L=130 |
1 | ||
| 99555-00140 |
1SU..SX60 *H,L=140 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99553-00100 |
1SU..SX60 L=100 |
1 | ||
| 99553-00200 |
1SU..SX60 COLD SPEC |
2 | ||
| 99555-00100 |
1SU..SX60 L=100 |
1 | ||
| 99553-00130 |
1SU..SX60 L=130 |
1 | ||
| 99555-00140 |
1SU..SX60 *H,L=140 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99553-00100 |
1SU..SX60 L=100 |
1 | ||
| 99553-00200 |
1SU..SX60 COLD SPEC |
2 | ||
| 99555-00100 |
1SU..SX60 L=100 |
1 | ||
| 99553-00130 |
1SU..SX60 L=130 |
1 | ||
| 99555-00140 |
1SU..SX60 *H,L=140 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99553-00100 |
1SU..SX60 L=100 |
1 | ||
| 99553-00200 |
1SU..SX60 COLD SPEC |
2 | ||
| 99555-00100 |
1SU..SX60 L=100 |
1 | ||
| 99553-00130 |
1SU..SX60 L=130 |
1 | ||
| 99555-00140 |
1SU..SX60 *H,L=140 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-11009 |
1SU..SX60 |
4 | ||
| 90467-11009 |
1SU..SX60 COLD SPEC |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-63030 |
1SU..SX60 COLD SPEC |
1 | ||
| Common parts | ||||
| 91651-41016 | ||||
