SX60-DEMNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

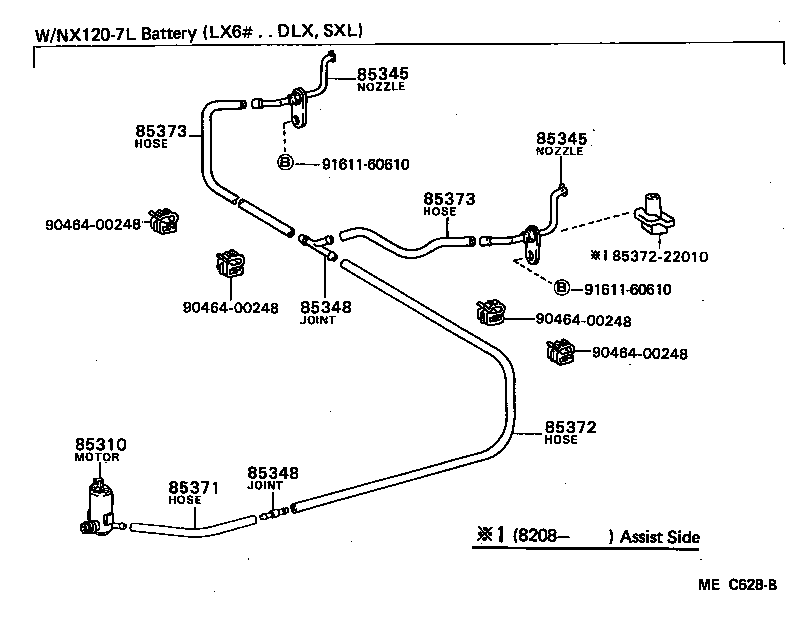

ILLUST NO. 1 OF 2(8208- )

Click highlighted areas on diagram

diagram 85310 85345 85345 85348 85348 85371 85372 8537222010 85373 85373 9046400248 9046400248 9046400248 9046400248 9161160610 9161160610
Part # Description Qty Price
85345 - NOZZLE, WINDSHIELD WASHER
85341-22131

GX61,LX6#,MX61,SX60

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-22131

GX61,LX6#,MX61,SX60

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

GX6#,LX60,RX6#,SX60,TX60

2 WAY

 1
85355-14010

GX6#,LX6#,MX61,RX6#,SX60,TX60

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

GX6#,LX60,RX6#,SX60,TX60

2 WAY

 1
85355-14010

GX6#,LX6#,MX61,RX6#,SX60,TX60

3 WAY

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

GX6#,LX6#,MX61,RX6#,SX60,TX60

*H,L=320

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

GX61,LX60,MX61,SX60

*H,L=1250−1280

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX6#,LX6#,MX61,RX6#,SX60,TX60

*H,L=100

 1
90099-33299

GX61,LX60,SX60

*H,L=640

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

GX6#,LX6#,MX61,RX6#,SX60,TX60

*H,L=100

 1
90099-33299

GX61,LX60,SX60

*H,L=640

 1
Common parts
85372-22010
90464-00248
91611-60610
