SX60-DEMNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )1SU

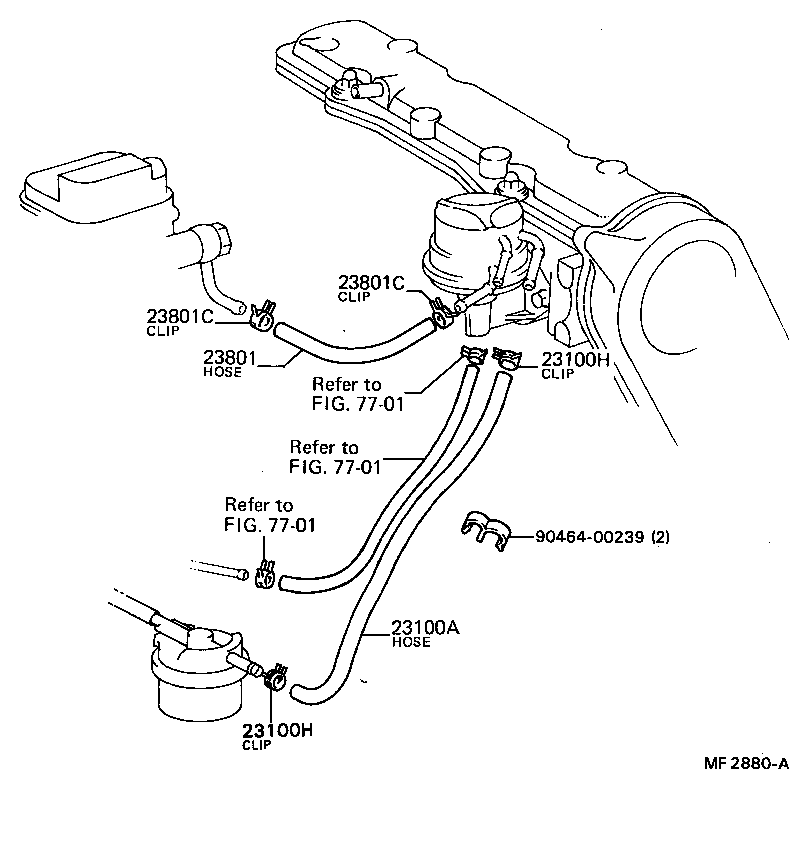

Click highlighted areas on diagram

diagram 23100A 23100H 23100H 23801 23801C 23801C 7701 7701 7701 9046400239
Part # Description Qty Price
23100A - HOSE, FUEL
90445-12126

1SU..SX60

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

1SU..SX60

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

1SU..SX60

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06020

1SU..SX60

*H,L=140

 1
95332-06020

1SU..SX60

*H,L=160

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1SU..SX60

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

1SU..SX60

 2
Common parts
90464-00239
Linked diagrams
7701
