SX60-DEMNS (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )1SU

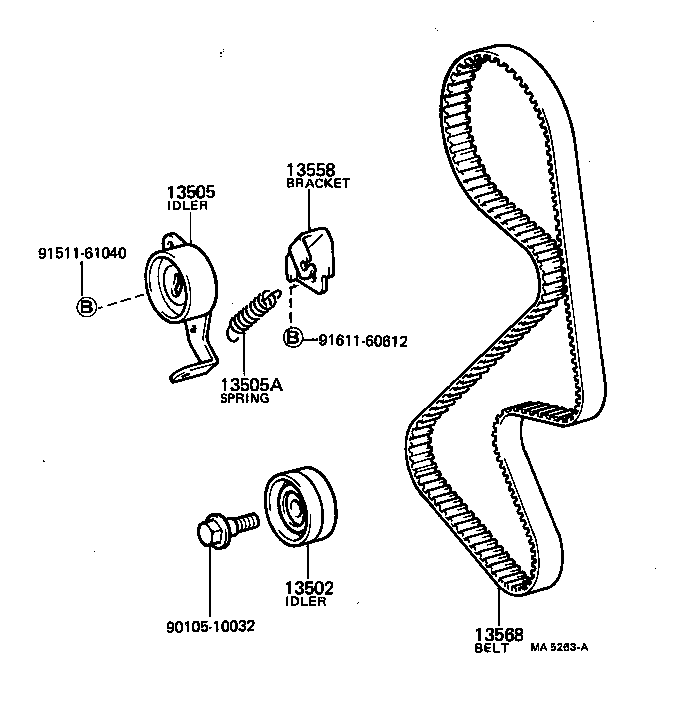

Click highlighted areas on diagram

diagram 13502 13505 13505A 13558 13568 9010510032 9151161040 9161160612
Part # Description Qty Price
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-63010

1SU..SX60

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-63010

1SU..SX60

 1
13505A - SPRING, TENSION(FOR IDLER)
90506-20039

1SU..SX60

 1
13558 - BRACKET, SPRING(FOR IDLER)
13558-63010

1SU..SX60

 1
13568 - BELT, TIMING
13568-63020

1SU..SX60

 1
Common parts
90105-10032
91511-61040
91611-60612
