SX60-DEMES (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )1SU

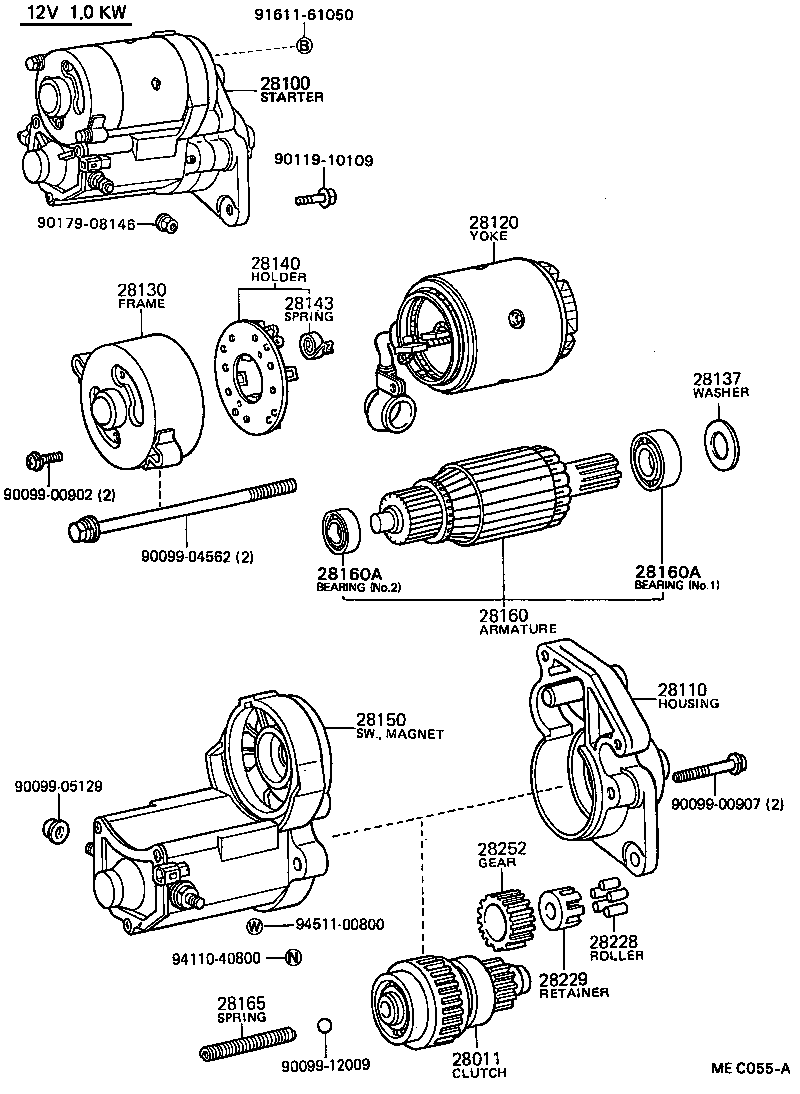

Click highlighted areas on diagram

diagram 28011 28100 28110 28120 28130 28137 28140 28143 28150 28160 28160A 28160A 28165 28228 28229 28252 9009900902 9009900907 9009904562 9009905129 9009912009 9011910109 9017908146 9161161050 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 1
28100 - STARTER ASSY
28100-63020

1SU..SX60

12V 1.0KW,12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-63020

1SU..SX60

12V 1.0KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-63020

1SU..SX60

12V 1.0KW

 1
28137 - WASHER, FELT, STARTER
90099-02323

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 1
28143 - SPRING, STARTER BRUSH
90099-17112

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-63021

1SU..SX60

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-26070

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW,NO.2

 1
90099-10113

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW,NO.1

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW,NO.2

 1
90099-10113

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW,NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

13TU,1G#,1SU..GX6#,SX60,TX60

12V 1.0KW

 1
Common parts
90099-00902
90099-00907
90099-04562
90099-05129
90099-12009
90119-10109
90179-08146
91611-61050
94110-40800
94511-00800
