SX100-BTPNK (1997)

Toyota Chaser

Production Apr 1997 - Jun 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )SX100

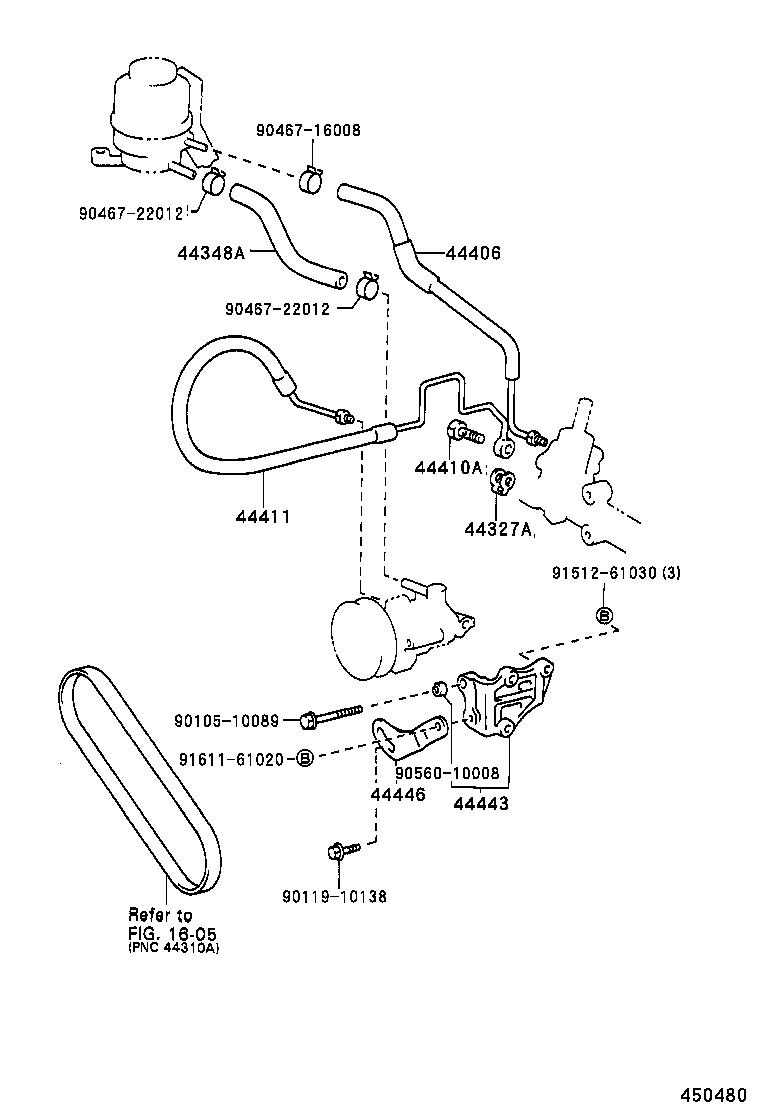

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410A 44411 44443 44446 9010510089 9011910138 9046716008 9046722012 9046722012 9056010008 9151261030 9161161020
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

GX100,JZX10#,LX100,SX100

 1
44327-30030

JZX10#,LX100,SX100

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-22280

SX100

 1
44406 - TUBE SUB-ASSY, RETURN
44406-22290

SX100

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

GX100,LX100,SX100

 1
96341-41603

LX100,SX100

 1
44411 - HOSE, PRESSURE FEED
44411-22700

SX100

 1
44443 - BRACKET, PUMP
44443-22090

SX100

 1
44446 - STRUT, ADJUSTING
44446-22030

SX100

 1
Common parts
90105-10089
90119-10138
90467-16008
90467-22012
90560-10008
91512-61030
91611-61020
