SX100-BTPEK (1997)

Toyota Chaser

Production Apr 1997 - Aug 1998
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )SX100

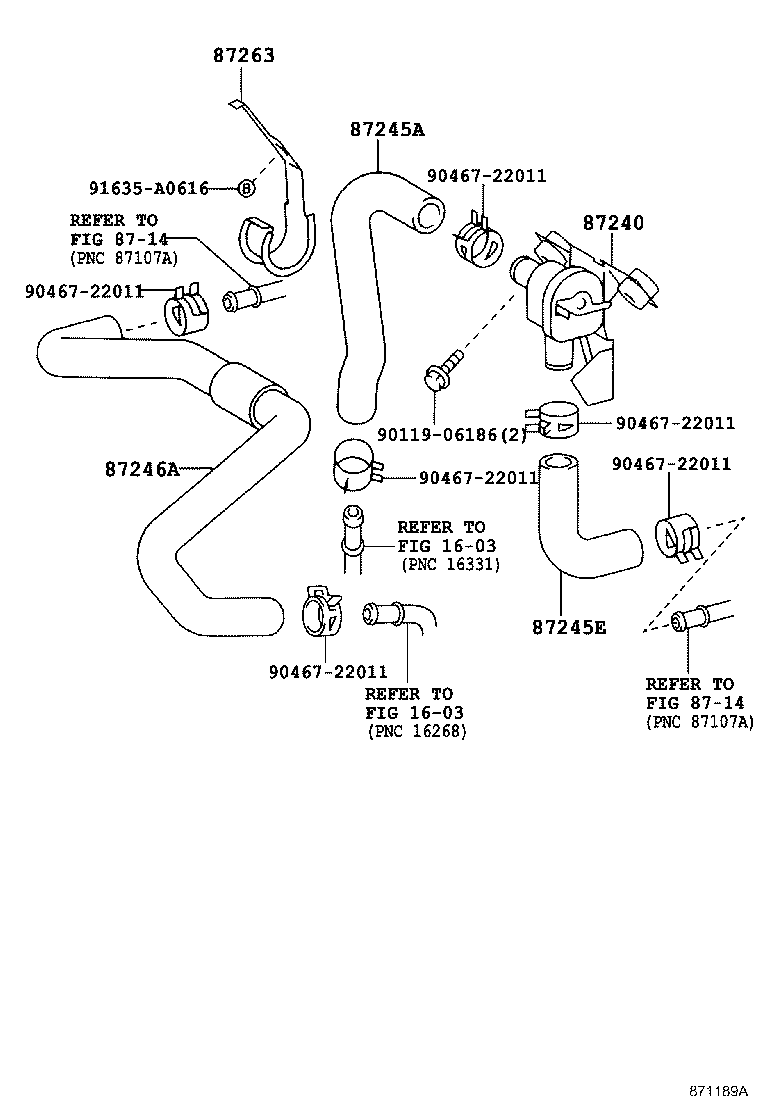

Click highlighted areas on diagram

diagram 1603 1603 8714 8714 87240 87245A 87245E 87246A 87263 9011906186 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 91635A0616
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-22370

GX10#,JZX10#,LX100,SX100

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2A600

SX100

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2A520

JZX100..TOUV;GX100,JZX101,LX100,SX100

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2A610

SX100

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-22141

LX100,SX100

 1
87263-22140

LX100,SX100

 1
Common parts
90119-06186
90467-22011
91635-A0616
Linked diagrams
1603
8714
