SX100-BTPEK (1997)
Toyota Chaser
Production
Apr 1997
-
Aug 1998
Engine
4SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )SX100

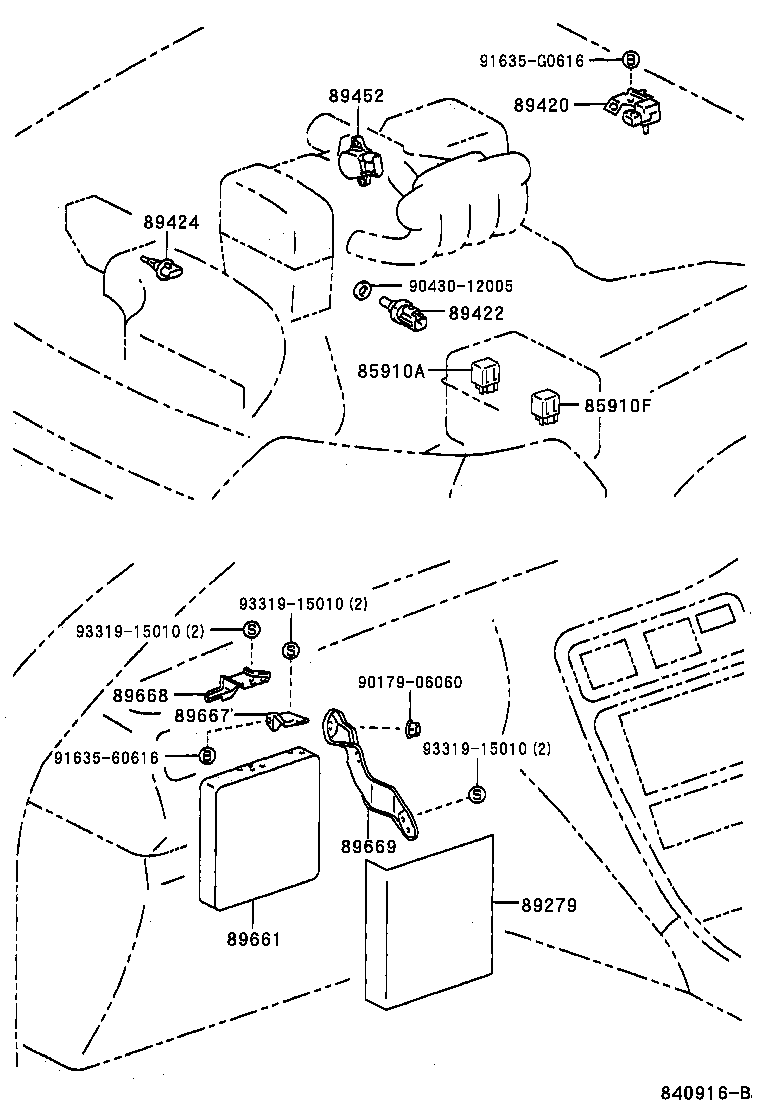

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02012 |
GX10#,JZX10#,SX100 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02012 |
GX10#,JZX10#,SX100 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-22030 |
GX10#,JZX10#,SX100 |
1 | ||
| 89420 - SENSOR ASSY, VACUUM | ||||
| 89420-22280 |
SX100 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-16010 |
SX100 ﾏｰｸ 89422−16010 *369 |
1 | ||
| 89422-22030 |
SX100 ﾏｰｸ 89422−22030 *369 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
GX10#,JZX10#,SX100..AVT,AVTG,RAF,TOU,TOUS,XL |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-33030 |
SX100 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-22130 |
GX10#,JZX10#,SX100 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-22170 |
GX10#,JZX10#,SX100 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-22200 |
GX10#,JZX10#,SX100 |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90430-12005 | ||||
| 91635-60616 | ||||
| 91635-G0616 | ||||
| 93319-15010 | ||||
