RX63-DTMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )GX6#,LX60,MX61,RX6#,SX60,TX60..DLX,GT,SGT,STD,SXL,XG,XL

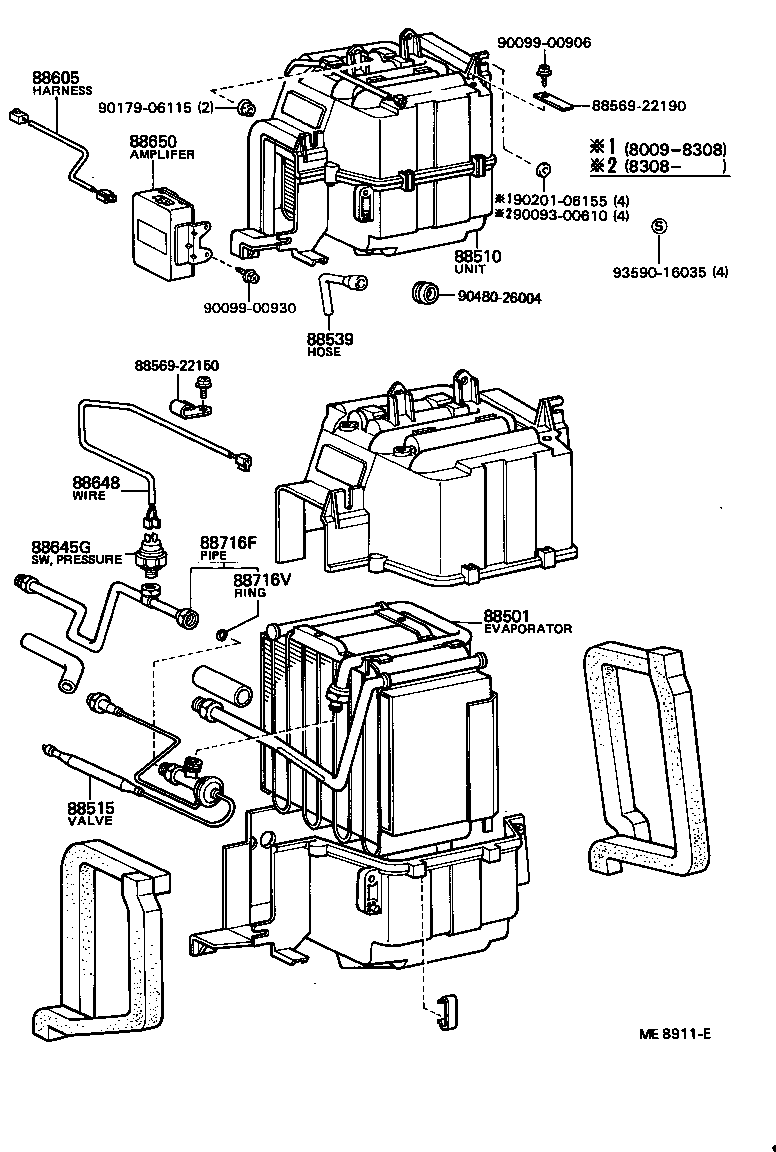

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 8856922150 8856922190 88605 88645G 88648 88650 88716F 88716V 9009300610 9009900906 9009900930 9017906115 9020106155 9048026004 9359016035
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22130

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
88510 - UNIT ASSY, COOLER
88510-22180

GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,STD,SXL,XG,XL

 1
88515 - VALVE, COOLER EXPANSION
88515-22070

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22080

GX6#,LX60,MX61,RX6#,SX60,TX60

 1
88645G - SWITCH, PRESSURE
88645-30250

GX6#,LX6#,MX61,RX6#,SX60,TX60

DENSO

 1
88645-22020

GX6#,LX6#,MX61,RX6#,SX60,TX60

TOKAIRIKA

 1
88648 - WIRING, COOLER, NO.1
88648-22060

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-22320

GX6#,LX60,MX61,RX6#,TX60

 1
88716V - RING, O(FOR COOLER UNIT)
90099-14044

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
Common parts
88569-22150
88569-22190
90093-00610
90099-00906
90099-00930
90179-06115
90201-06155
90480-26004
93590-16035
