RX63-DTMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

Click highlighted areas on diagram

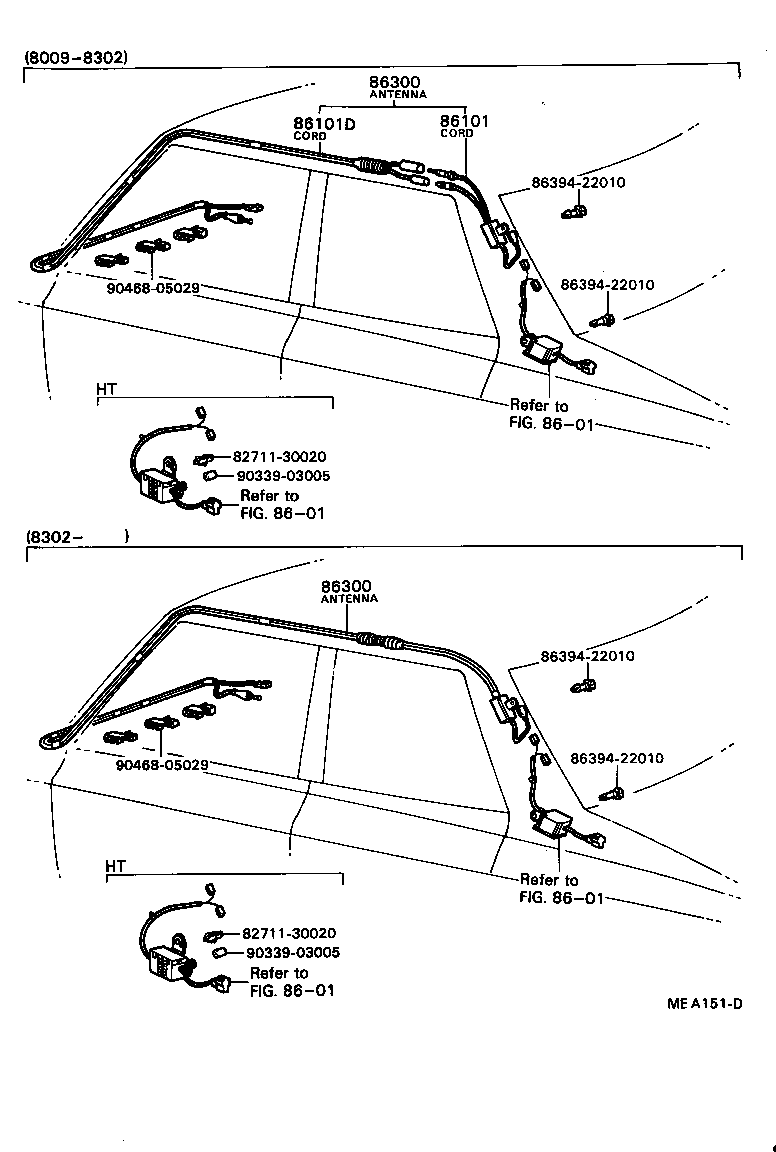

diagram 8271130020 8271130020 8601 8601 8601 8601 86101 86101D 86300 86300 8639422010 8639422010 8639422010 8639422010 9033903005 9033903005 9046805029 9046805029
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-22110

GX6#,RX6#,TX60..HT

MATSUSHITA

 1
86101-22150

GX6#,RX6#,TX60..HT

TEN

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-22100

GX6#,RX6#,TX60..HT

MATSUSHITA

 1
86101-22160

GX6#,RX6#,TX60..HT

TEN

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22130

GX6#,MX61,RX6#,SX60,TX60..HT

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22130

GX6#,MX61,RX6#,SX60,TX60..HT

 1
Common parts
82711-30020
86394-22010
90339-03005
90468-05029
Linked diagrams
8601
