RX63-DTMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)RX6# ; (8302- )LPG

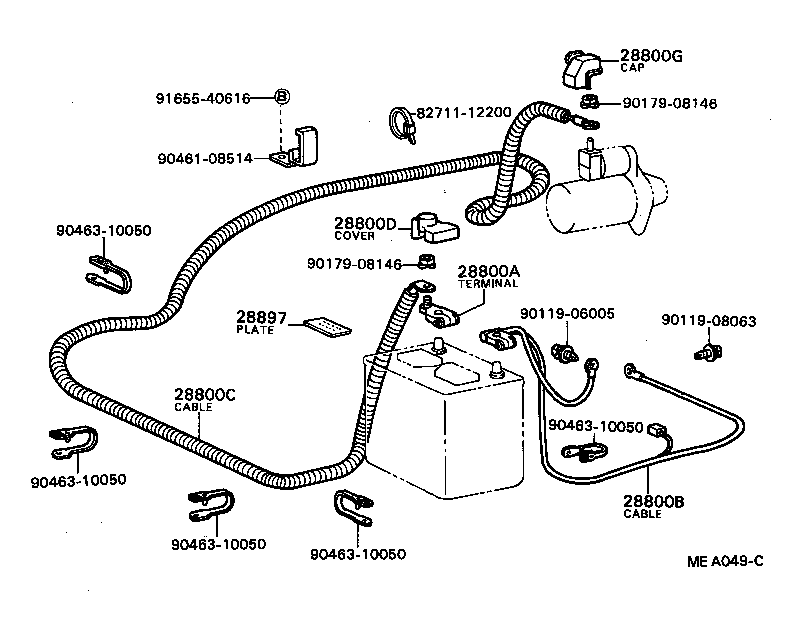

Click highlighted areas on diagram

diagram 28800A 28800B 28800C 28800D 28800G 28897 8271112200 9011906005 9011908063 9017908146 9017908146 9046108514 9046310050 9046310050 9046310050 9046310050 9046310050 9165540616
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

21RU,13TU,18RGEU,1GEU..GX6#,RX6#,TX60

N50ZL-MF

 1
90982-05004

21RU,13TU,18RGEU,1GEU..GX6#,RX6#,TX60

NS40ZAL-MF,NS40ZAL

 1
28800B - CABLE, BATTERY TO GROUND
90982-02194

21RU,18RGEU,1G#..GX6#,RX6#

N50ZL,50D20L-MF,55D23L-MF

 1
90982-02193

21RU,18RGEU,1GEU..GX6#,RX6#

NS40ZAL-MF,NS40ZAL

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01362

21RU,18RGEU..RX6#

W/12V 0.8KW STARTER

 1
90982-01363

21RU,18RGEU..RX6#

W/12V 1.0KW STARTER

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22100

21RU,13TU,18RGEU,1GEU,MTEU..GX6#,MX61,RX6#,TX60

 1
28800G - CAP, TERMINAL(FOR STARTER)
82823-22010

21RU,18RGEU..RX6#

 1
28897 - PLATE, BATTERY CAUTION
28897-18050

21RU,13TU,18RGEU,1GEU..GX6#,RX6#,TX60

 1
28897-18030

21RU,13TU,18RGEU,1GEU..GX6#,RX6#,TX60

KOBE

 1
28897-18040

21RU,13TU,18RGEU,1GEU..GX6#,RX6#,TX60

MATSUSHITA

 1
28897-18010

21RU,13TU,18RGEU,1GEU..GX6#,RX6#,TX60

GS

 1
28897-18020

21RU,13TU,18RGEU,1GEU..GX6#,RX6#,TX60

YUASA

 1
Common parts
82711-12200
90119-06005
90119-08063
90179-08146
90461-08514
90463-10050
91655-40616
