RX63-DEMZF (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)GX61,RX63 ; (8110-8208)MX61..SED..SGT; (8110- )MX61..HT..SGT ; (8208

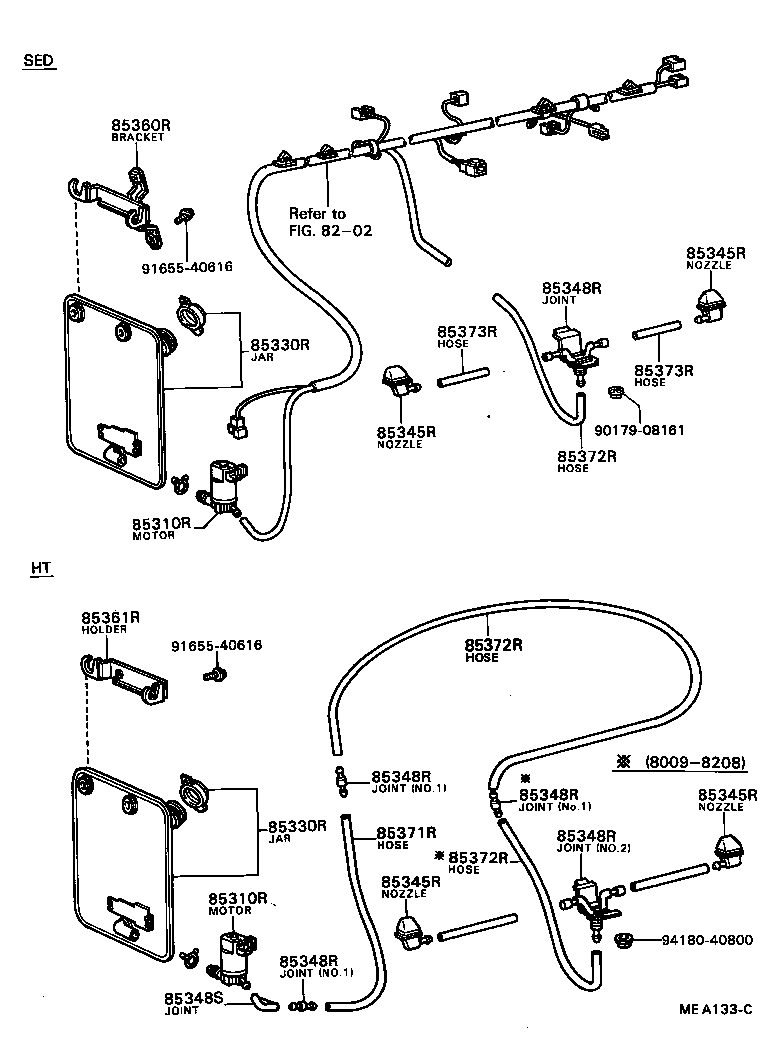

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-20100 |
GX61,RX63 |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-20100 |
GX61,RX63 |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-22110 |
GX61,RX63 |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-22110 |
GX61,RX63 |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85341-22150 |
GX61,RX63 RH |
1 | ||
| 85341-22160 |
GX61,RX63 LH |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85341-22150 |
GX61,RX63 RH |
1 | ||
| 85341-22160 |
GX61,RX63 LH |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85341-22150 |
GX61,RX63 RH |
1 | ||
| 85341-22160 |
GX61,RX63 LH |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85341-22150 |
GX61,RX63 RH |
1 | ||
| 85341-22160 |
GX61,RX63 LH |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-22010 |
GX61,RX63..SED |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-22010 |
GX61,RX63..SED |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-22010 |
GX61,RX63..SED |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-22010 |
GX61,RX63..SED |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-22010 |
GX61,RX63..SED |
1 | ||
| 85360R - BRACKET ASSY, REAR WASHER | ||||
| 85360-22020 |
GX61,RX63..SED |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33299 |
GX61,RX63..SED *H,L=110 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33299 |
GX61,RX63..SED *H,L=110 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33299 |
GX61,RX63..SED *H,L=110 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
GX61,RX63..SED *H,L=55 |
2 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
GX61,RX63..SED *H,L=55 |
2 | ||
| Common parts | ||||
| 90179-08161 | ||||
| 91655-40616 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
