RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)

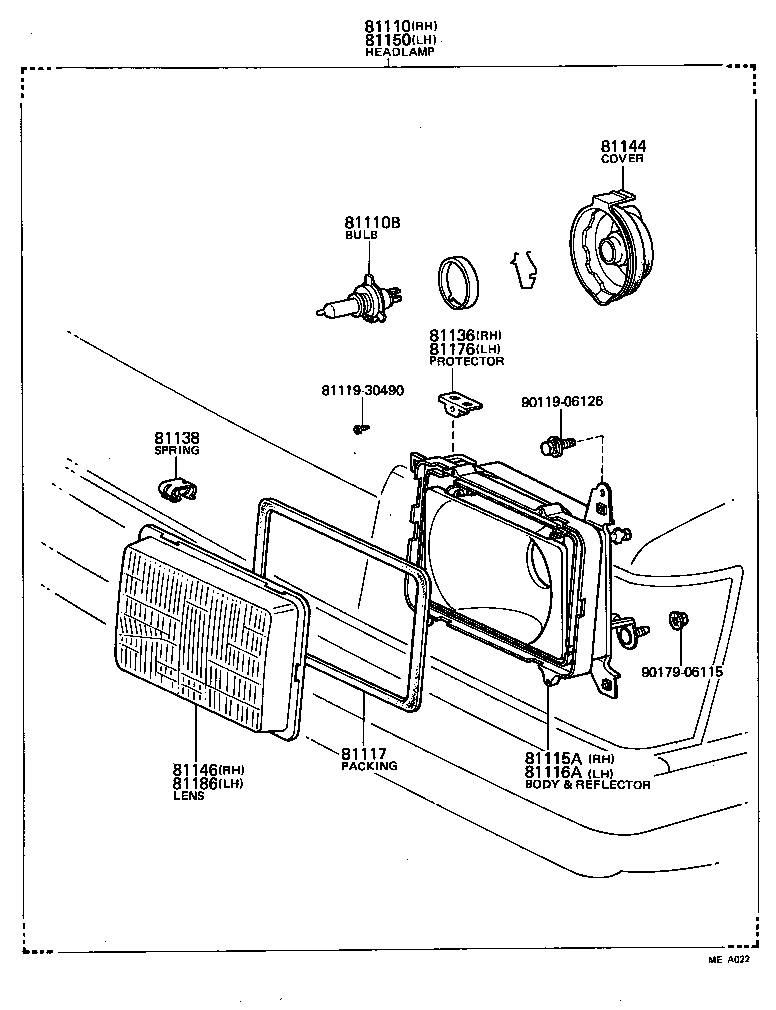

Click highlighted areas on diagram

diagram 81110 81110B 81115A 81116A 81117 8111930490 81136 81138 81144 81146 81150 81176 81186 9011906126 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80096

GX6#,LX60,MX61,RX6#,TX60

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

GX6#,LX6#,MX61,RX6#,SX60,TX60

12V 60/55W,*HAL *WH,12V 60/55W

 2
81115A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH
81115-22370

GX6#,LX60,MX61,RX6#,TX60

 1
81116A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH
81116-22370

GX6#,LX60,MX61,RX6#,TX60

 1
81117 - PACKING, HEADLAMP HOUSING
81147-30490

GX6#,LX60,MX61,RX6#,TX60

 2
81136 - PROTECTOR, HEADLAMP, NO.1 RH
81136-22370

GX6#,LX60,MX61,RX6#,TX60

 2
81138 - SPRING, HEADLAMP
81138-20550

GX6#,LX6#,MX61,RX6#,SX60,TX60

 16
81144 - COVER, HEADLAMP, NO.1
81139-30490

GX6#,LX60,MX61,RX6#,TX60

 2
81146 - LENS, HEADLAMP, RH
81146-30490

GX6#,LX60,MX61,RX6#,TX60

 1
81150 - HEADLAMP ASSY, LH
81150-80093

GX6#,LX60,MX61,RX6#,TX60

 1
81176 - PROTECTOR, HEADLAMP, NO.1 LH
81136-22370

GX6#,LX60,MX61,RX6#,TX60

 2
81186 - LENS, HEADLAMP, LH
81186-30600

GX6#,LX60,MX61,RX6#,TX60

 1
Common parts
81119-30490
90119-06126
90179-06115
