RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

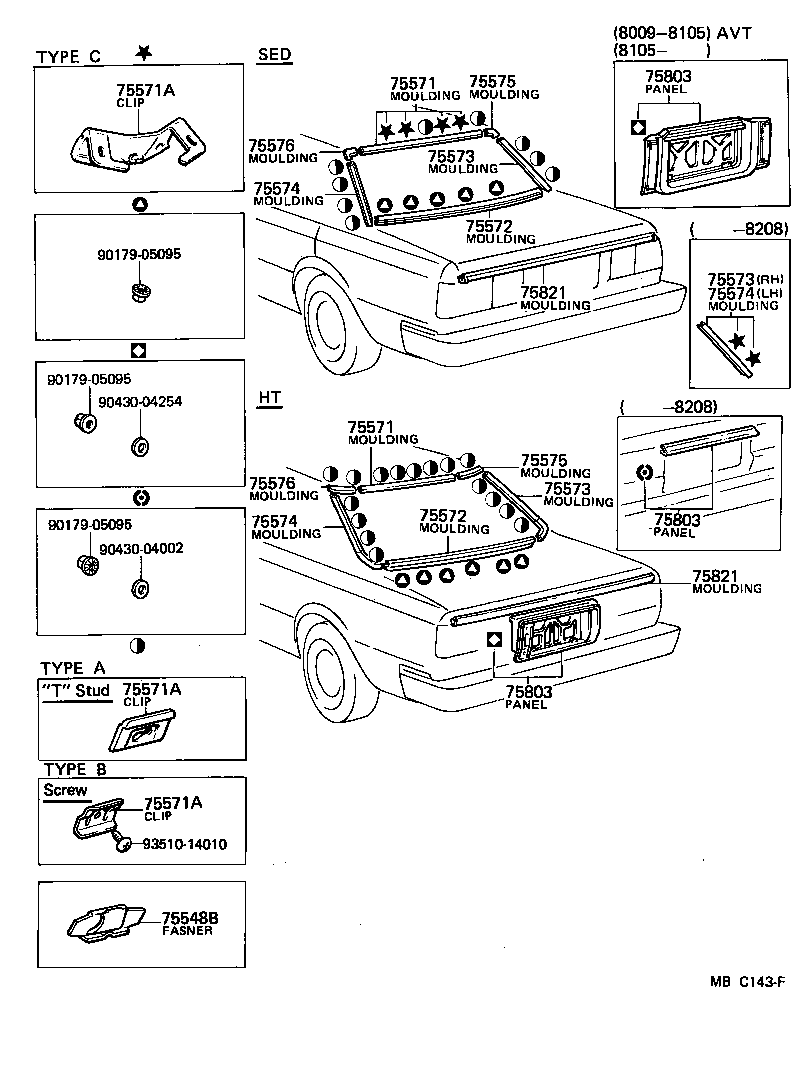

Click highlighted areas on diagram

diagram 75548B 75571 75571 75571A 75571A 75571A 75572 75572 75573 75573 75573 75574 75574 75574 75575 75575 75576 75576 75803 75803 75803 75821 75821 9017905095 9017905095 9017905095 9043004002 9043004254 9351014010
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-22070

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-22070

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-22020

GX6#,LX60,MX61,RX6#,TX60..SED

TYPE C

 8
75545-30021

GX6#,LX60,MX61,RX6#,TX60

TYPE A

 16
75545-30040

GX6#,LX60,MX61,RX6#,TX60

TYPE B

 16
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-22020

GX6#,LX60,MX61,RX6#,TX60..SED

TYPE C

 8
75545-30021

GX6#,LX60,MX61,RX6#,TX60

TYPE A

 16
75545-30040

GX6#,LX60,MX61,RX6#,TX60

TYPE B

 16
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-22020

GX6#,LX60,MX61,RX6#,TX60..SED

TYPE C

 8
75545-30021

GX6#,LX60,MX61,RX6#,TX60

TYPE A

 16
75545-30040

GX6#,LX60,MX61,RX6#,TX60

TYPE B

 16
75572 - MOULDING, BACK WINDOW, LOWER
75507-22020

GX6#,LX60,RX6#,TX60..SED

 1
75507-22030

GX61,MX61,RX63..SED

W/REAR WIPER

 1
75572 - MOULDING, BACK WINDOW, LOWER
75507-22020

GX6#,LX60,RX6#,TX60..SED

 1
75507-22030

GX61,MX61,RX63..SED

W/REAR WIPER

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-22070

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-22070

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-22070

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-22050

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-22050

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-22050

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-22040

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-22040

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-22040

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-22040

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75803-29186

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75803-29186

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75803-29186

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75813-22060

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75813-22060

GX6#,LX60,MX61,RX6#,TX60..SED

 1
Common parts
90179-05095
90430-04002
90430-04254
93510-14010
