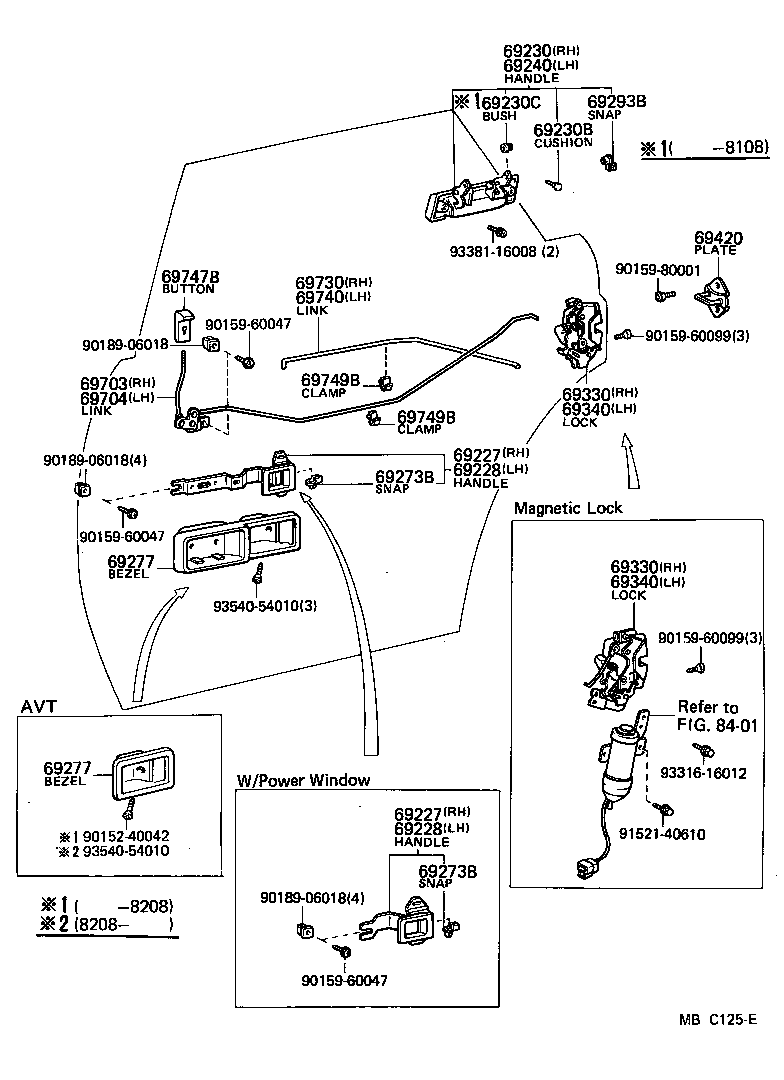

RX63-DEMZF (1980)
Toyota Chaser
(8009- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69208-22030 |
GX6#,LX60,MX61,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL) |
1 | ||
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69208-22030 |
GX6#,LX60,MX61,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL) |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69207-22030 |
GX6#,LX60,MX61,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL) |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69207-22030 |
GX6#,LX60,MX61,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL) |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-22040 |
GX6#,LX60,RX6#,TX60..SED |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
4 | ||
| 69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 69395-20020 |
GX6#,LX60,RX6#,TX60..SED |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-22040 |
GX6#,LX60,RX6#,TX60..SED |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69279-12020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 LH |
1 | ||
| 69288-12010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 RH |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69279-12020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 LH |
1 | ||
| 69288-12010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 RH |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-2204004 |
GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277-2204001 |
GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL RH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 69277-2204006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 69278-2201001 |
GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL LH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201004 |
GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-2204004 |
GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL RH,BLUE,BLUE,TRIM8# |
1 | ||
| 69277-2204001 |
GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL RH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 69277-2204006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,SXL,XG,XL RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 69278-2201001 |
GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL LH,BLACK,BLACK,TRIM2# |
1 | ||
| 69278-2201004 |
GX6#,LX60,MX61,RX6#,TX60..DLX,GT,SGT,SXL,XG,XL LH,BLUE,BLUE,TRIM8# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED..(DLX,GT,SGT,STD,SXL,XG,XL) |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-22030 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-22030 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-22030 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-22030 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-22030 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..SED |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-3002004 |
GX6#,LX60,MX61,RX6#,TX60 BLUE,BLUE,TRIM8# |
2 | ||
| 69741-3002001 |
GX6#,LX60,MX61,RX6#,TX60 BLACK,BLACK,TRIM2# |
2 | ||
| 69741-3002006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL DARK BROWN,BROWN,TRIM4# |
2 | ||
| Common parts | ||||
| 90152-40042 | ||||
| 90159-60047 | ||||
| 90159-60099 | ||||
| 90159-80001 | ||||
| 90189-06018 | ||||
| 91521-40610 | ||||
| 93316-16012 | ||||
| 93381-16008 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
