RX63-DEMZF (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
18RGEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

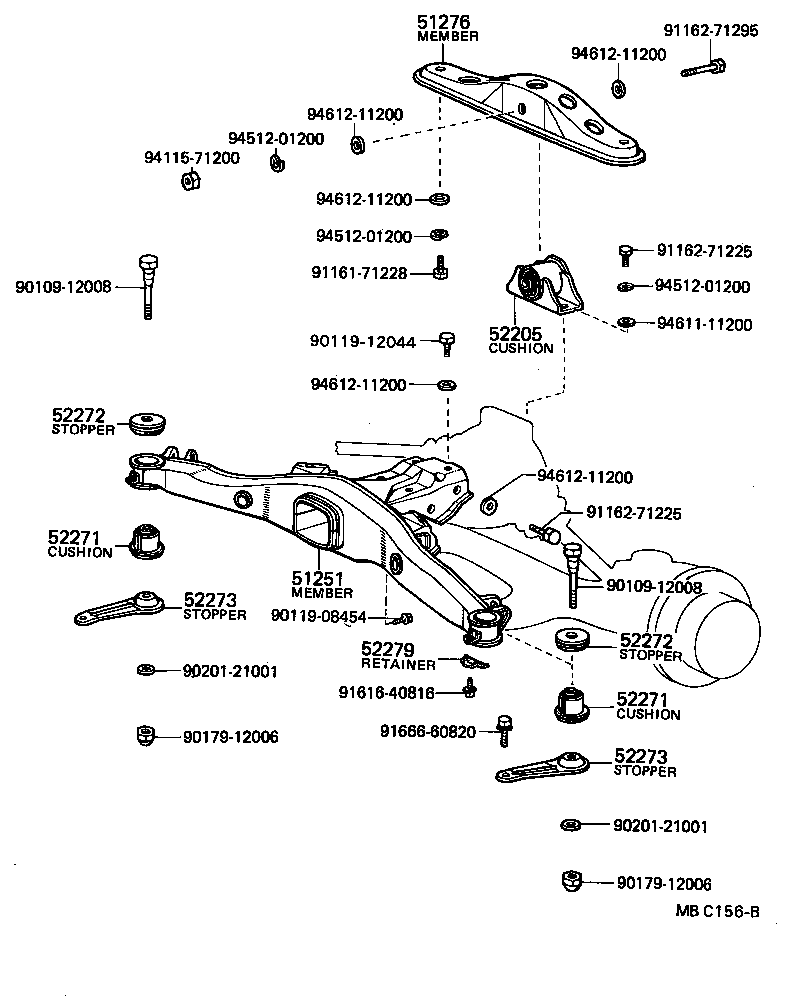

ILLUST NO. 2 OF 2(8009- )GX61,LX65,MX61,RX63
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51251 - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-22020 |
GX61,MX61,RX63 |
1 | ||
| 51276 - MEMBER, DIFFERENTIAL SUPPORT | ||||
| 51276-22010 |
GX61,LX65,MX61,RX63 |
1 | ||
| 52205 - CUSHION SUB-ASSY, DIFFERENTIAL SUPPORT | ||||
| 52205-22020 |
GX61,LX65,MX61,RX63 |
1 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52271-22030 |
GX61,MX61,RX63 |
2 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52271-22030 |
GX61,MX61,RX63 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-22010 |
GX61,LX65,MX61,RX63 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-22010 |
GX61,LX65,MX61,RX63 |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-22010 |
GX61,LX65,MX61,RX63 |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-22010 |
GX61,LX65,MX61,RX63 |
2 | ||
| 52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION | ||||
| 52279-22010 |
GX61,MX61,RX63 |
2 | ||
| Common parts | ||||
| 90109-12008 | ||||
| 90119-08454 | ||||
| 90119-12044 | ||||
| 90179-12006 | ||||
| 90201-21001 | ||||
| 91161-71228 | ||||
| 91162-71225 | ||||
| 91162-71295 | ||||
| 91616-40816 | ||||
| 91666-60820 | ||||
| 94115-71200 | ||||
| 94512-01200 | ||||
| 94611-11200 | ||||
| 94612-11200 | ||||
ILLUST NO. 1 OF 2(8009- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-22160 |
RX6# |
1 | ||
| 51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 51296-22011 |
GX6#,LX6#,RX6#,SX60,TX60 |
4 | ||
| 51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 51296-22011 |
GX6#,LX6#,RX6#,SX60,TX60 |
4 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-22090 |
LX6#,RX6# |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-22090 |
LX6#,RX6# |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51963-22030 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 51962 - HOOK, NO.2 | ||||
| 51095-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 W/URETHANE BUMPER |
2 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90119-08057 | ||||
| 90170-12008 | ||||
| 90179-12020 | ||||
| 90201-12020 | ||||
| 90467-08131 | ||||
| 90467-08132 | ||||
| 91615-61225 | ||||
| 94512-01200 | ||||
