RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)RX63

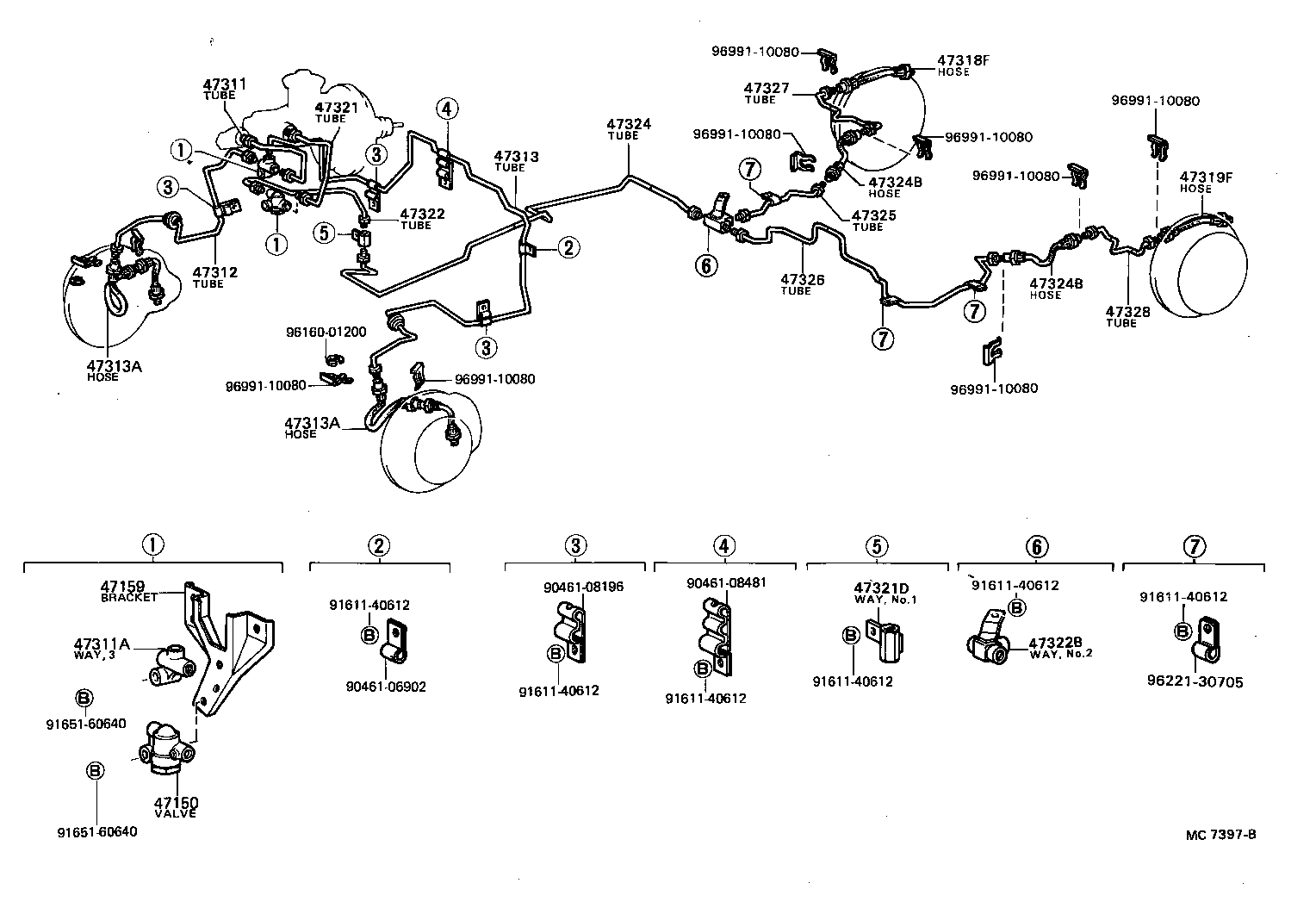

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47318F 47319F 47321 47321D 47322 47322B 47324 47324B 47324B 47325 47326 47327 47328 9046106902 9046108196 9046108481 9161140612 9161140612 9161140612 9161140612 9161140612 9161140612 9165160640 9165160640 9616001200 9622130705 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12041

GX61,RX63

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-22110

GX61,RX63

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22200

GX61,RX63

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22060

GX6#,LX60,RX6#,SX60,TX60

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22190

GX6#,LX60,RX6#,SX60,TX60

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02407

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02407

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
96940-32105

GX61,MX61,RX63

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
96940-32105

GX61,MX61,RX63

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22050

GX61,RX63

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10036

RX6#,TX60

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22090

RX6#,TX60

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10019

RX63

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22140

RX63

 1
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
90947-02340

GX61,LX65,MX61,RX63

 2
47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)
90947-02340

GX61,LX65,MX61,RX63

 2
47325 - TUBE, REAR BRAKE, NO.5
47325-22010

RX63

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-22010

RX63

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22020

GX61,MX61,RX63

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22020

GX61,MX61,RX63

 1
Common parts
90461-06902
90461-08196
90461-08481
91611-40612
91651-60640
96160-01200
96221-30705
96991-10080
