RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)18RGEU

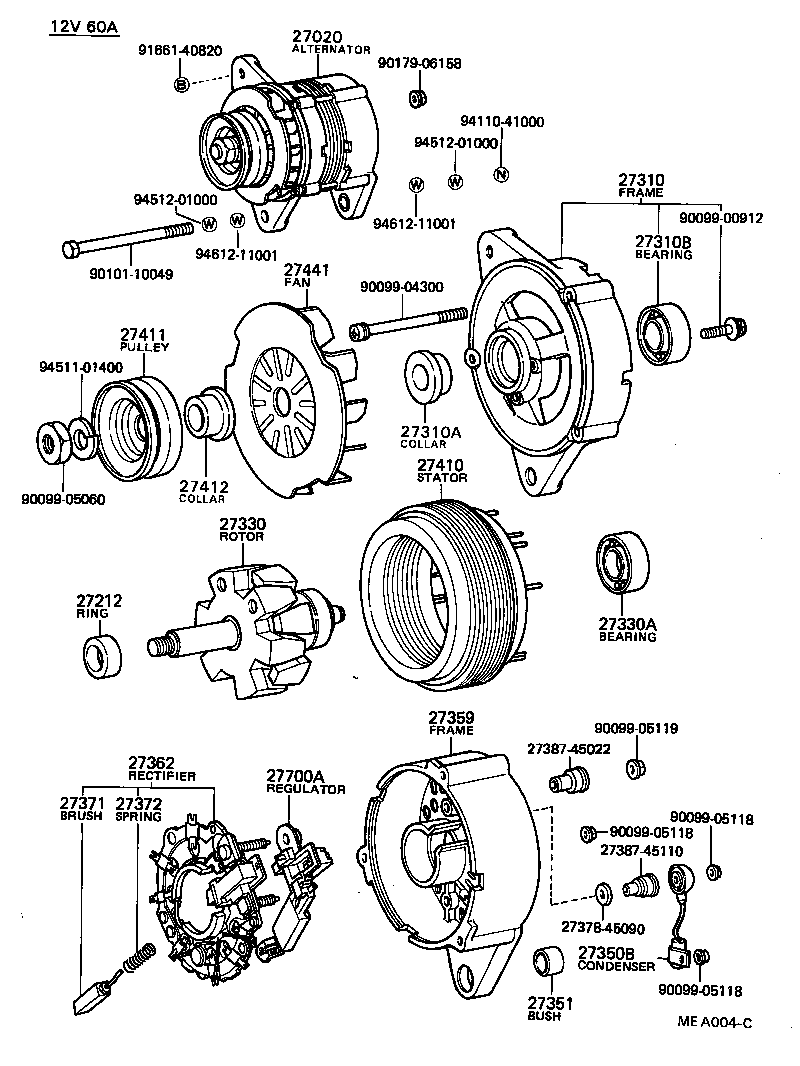

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9017906158 9166140820 9411041000 9451101400 9451201000 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-34020

18RGEU..RX63

12V 60A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-38061

18RGEU..RX63

12V 60A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-15070

18RGEU,MTEU..MX61,RX63

12V 60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

21RU,13TU,18RGEU,1SU,MTEU..MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-34080

18RGEU..RX63

12V 60A

 1
27359-28030

18RGEU..RX63

12V 60A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-43040

18RGEU,MTEU..MX61,RX63

12V 60A,65A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-45120

18RGEU,1GEU,MTEU..GX6#,MX61,RX63

12V 60A

 1
27411 - PULLEY, ALTERNATOR
27411-26111

18RGEU..RX63

12V 60A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44031

18RGEU..RX63

12V 60A

 1
27441 - FAN, ALTERNATOR
27441-45110

18RGEU,1GEU,MTEU..GX6#,MX61,RX63

12V 55A,60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-43010

18RGEU,MTEU..MX61,RX63

12V 60A,65A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90179-06158
91661-40820
94110-41000
94511-01400
94512-01000
94612-11001
