RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)18RGEU

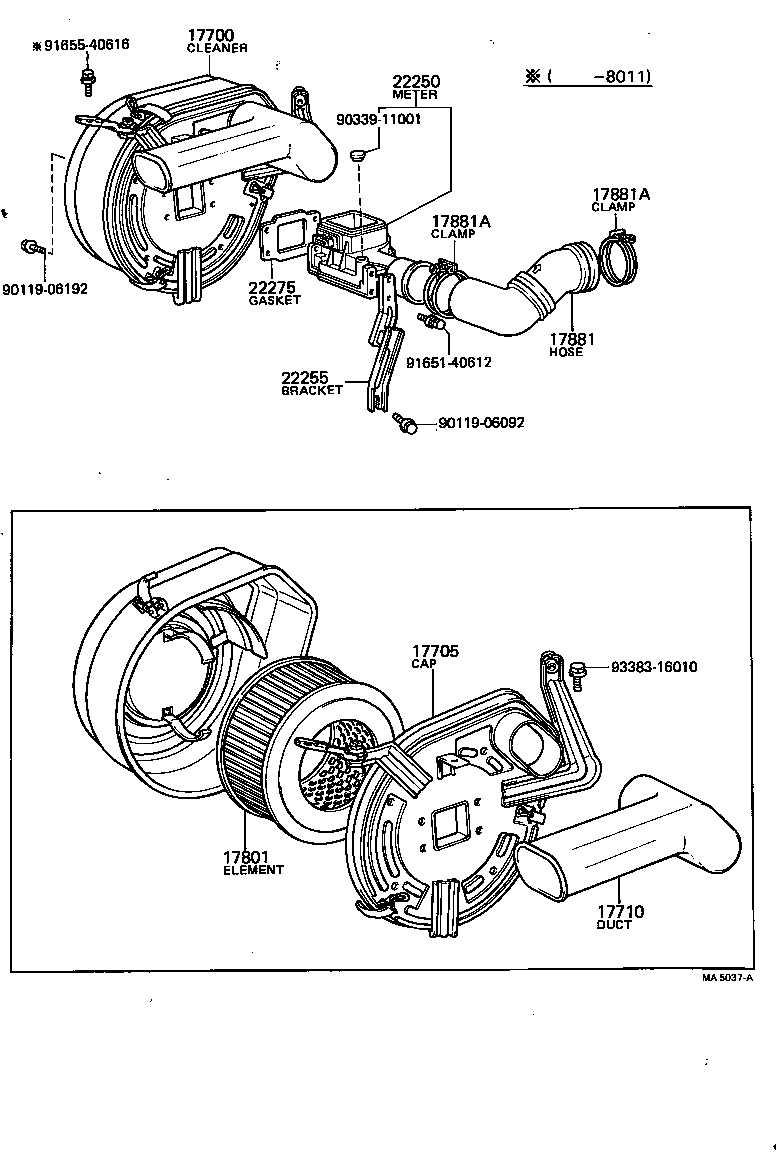

Click highlighted areas on diagram

diagram 17700 17705 17710 17801 17881 17881A 17881A 22250 22255 22275 9011906092 9011906192 9033911001 9165140612 9165540616 9338316010
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-34650

18RGEU..RX63

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-34240

18RGEU..RX63

 1
17710 - DUCT SUB-ASSY, AIR CLEANER INLET, NO.1
17751-34040

18RGEU..RX63

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24010

18RGEU..RX63

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-34160

18RGEU..RX63

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-95001

18RGEU..RX63

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-95001

18RGEU..RX63

 2
22250 - METER ASSY, INTAKE AIR FLOW
22250-34010

18RGEU..RX63

 1
22255 - BRACKET, AIR FLOW METER
22255-34010

18RGEU..RX63

 1
22275 - GASKET, AIR FLOW METER
22275-34011

18RGEU..RX63

 1
22275-34010

18RGEU..RX63

 1
Common parts
90119-06092
90119-06192
90339-11001
91651-40612
91655-40616
93383-16010
