RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)18RGEU

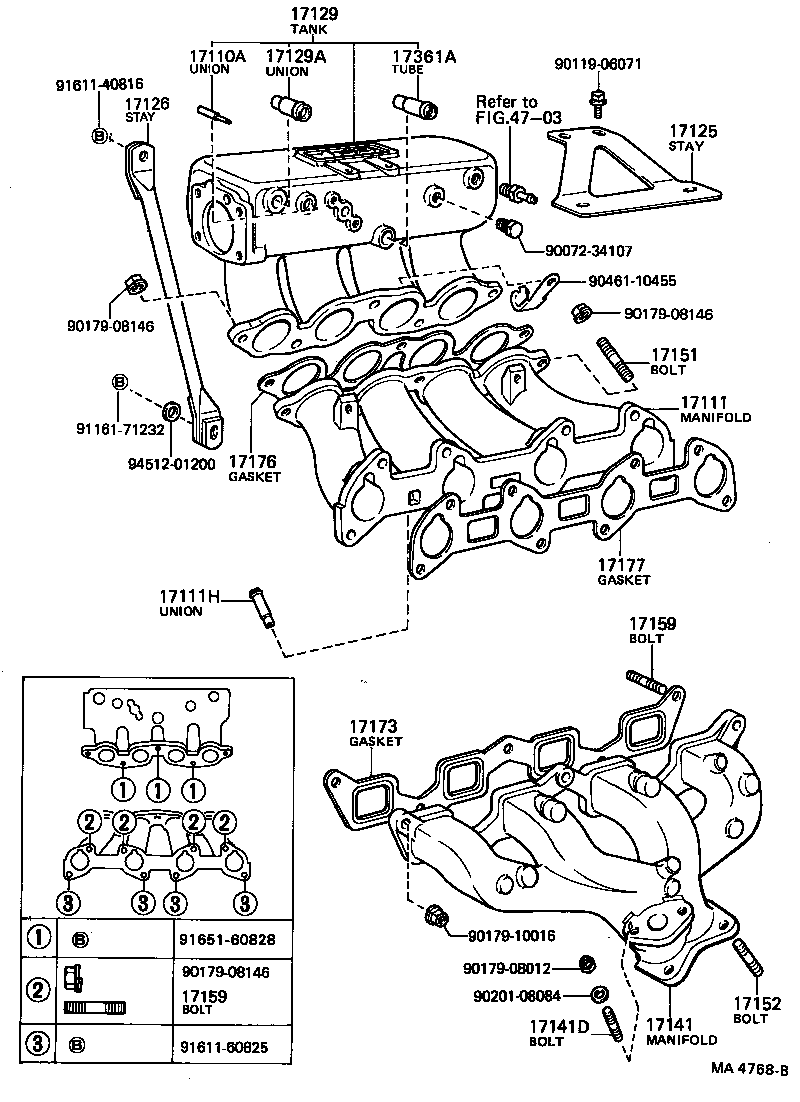

Click highlighted areas on diagram

diagram 17110A 17111 17111H 17125 17126 17129 17129A 17141 17141D 17151 17152 17159 17159 17173 17176 17177 17361A 4703 9007234107 9011906071 9017908012 9017908146 9017908146 9017908146 9017910016 9020108084 9046110455 9116171232 9161140816 9161160825 9165160828 9451201200
Part # Description Qty Price
17110A - UNION, VACUUM HOSE
90406-04001

18RGEU..RX63

 1
17111 - MANIFOLD, INTAKE
17111-88271

18RGEU..RX63

 1
17111H - UNION(FOR INTAKE MANIFOLD WATER)
90072-40625

18RGEU..RX63

 1
17125 - STAY, SURGE TANK, NO.1
17125-88270

18RGEU..RX63

 1
17126 - STAY, SURGE TANK, NO.2
17126-88270

18RGEU..RX63

 1
17129 - TANK, INTAKE AIR SURGE
17109-88271

18RGEU..RX63

 1
17129A - UNION, NO.1
90072-40624

18RGEU..RX63

 1
17141 - MANIFOLD, EXHAUST
17141-88270

18RGEU..RX63

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08045

21RU,18RGEU..RX6#

L=28,S=8&14

 2
90116-08045

18RGEU..RX63

L=28,S=8&14

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08201

18RGEU..RX63

L=37.4,S=13.7&13.7

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

18RGEU..RX63

L=41.5,S=14&21

 3
90116-10017

18RGEU..RX63

L=41.5,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

18RGEU..RX63

EXHAUST MANIFOLD

 5
90116-08201

18RGEU..RX63

L=37,S=13.5&13.5

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

18RGEU..RX63

EXHAUST MANIFOLD

 5
90116-08201

18RGEU..RX63

L=37,S=13.5&13.5

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-88250

18RGEU..RX63

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-88270

18RGEU..RX63

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-88270

18RGEU..RX63

 1
17361A - TUBE, AIR(FOR EFI)
90072-40617

18RGEU..RX63

 1
Common parts
90072-34107
90119-06071
90179-08012
90179-08146
90179-10016
90201-08084
90461-10455
91161-71232
91611-40816
91611-60825
91651-60828
94512-01200
Linked diagrams
4703
