RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)18RGEU

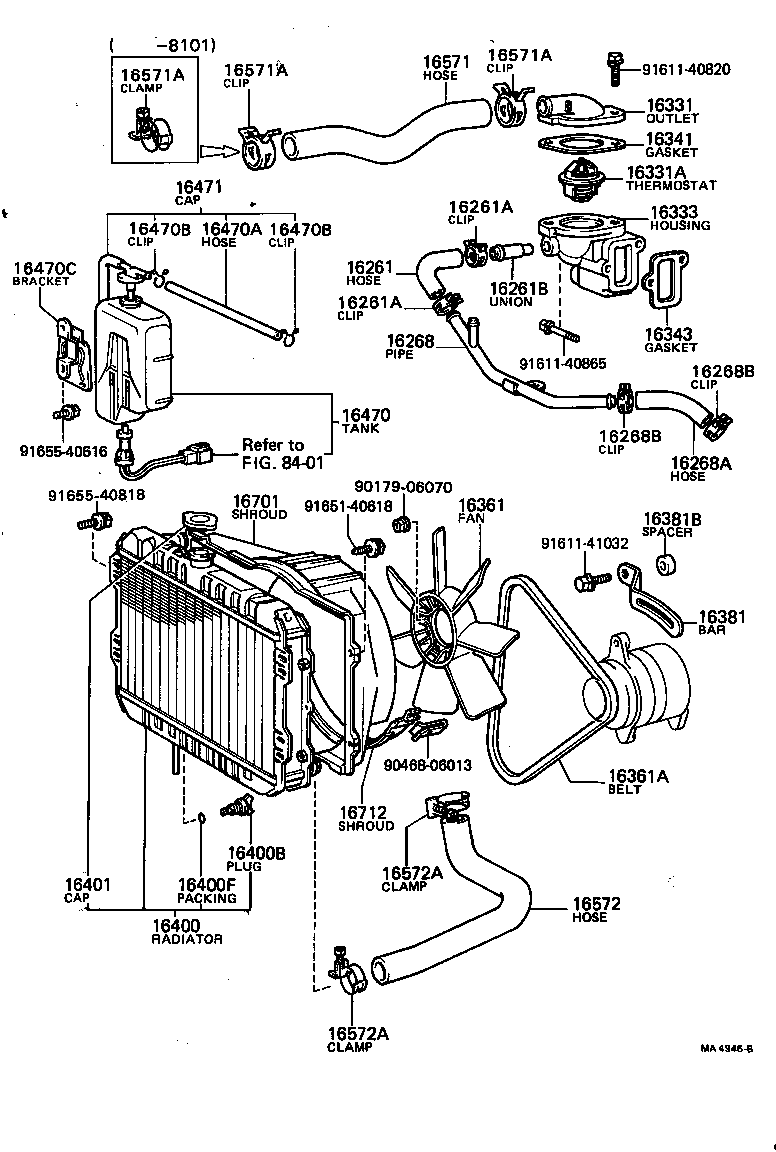

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16261B 16268 16268A 16268B 16268B 16331 16331A 16333 16341 16343 16361 16361A 16381 16381B 16400 16400B 16400F 16401 16470 16470A 16470B 16470B 16470C 16471 16571 16571A 16571A 16571A 16572 16572A 16572A 16701 16712 8401 9017906070 9046806013 9161140820 9161140865 9161141032 9165140618 9165540616 9165540818
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-88271

18RGEU..RX63

ID=12

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20134

18RGEU..RX63

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20134

18RGEU..RX63

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90406-14002

18RGEU..RX63

ID=12

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-88273

18RGEU..RX63

 1
16268A - HOSE(FOR WATER BY-PASS PIPE)
16261-88210

18RGEU..RX63

 1
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
90467-20134

18RGEU..RX63

 2
16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
90467-20134

18RGEU..RX63

 2
16331 - OUTLET, WATER
16331-88270

18RGEU..RX63

 1
16331A - THERMOSTAT
90916-03036

21RU,18RGEU..RX6#

*WAX 88-100,FUJI-THOMSON

 1
16333 - HOUSING, WATER OUTLET
16333-88271

18RGEU..RX63

 1
16341 - GASKET, WATER OUTLET
16341-88260

18RGEU..RX63

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-88210

18RGEU..RX63

 1
16361 - FAN
16361-34030

18RGEU..RX63

7 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00850

18RGEU..RX63

L=850

 1
16381 - BAR, FAN BELT ADJUSTING
16381-34030

18RGEU..RX63

 1
16381B - SPACER, FAN BELT ADJUSTING BAR
90560-10005

18RGEU..RX63

 1
16400 - RADIATOR ASSY
16400-37070

18RGEU..RX63

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

21RU,18RGEU..RX6#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

21RU,18RGEU..RX6#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36011

21RU,18RGEU..RX6#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-70020

18RGEU..RX63

W/OK MONITER

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12063

21RU,18RGEU..RX6#

*H,L=300

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21RU,18RGEU..RX6#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21RU,18RGEU..RX6#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16402-18010

21RU,18RGEU..RX6#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-18010

21RU,18RGEU..RX6#

 1
16571 - HOSE, RADIATOR, INLET
16571-34120

18RGEU..RX63

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

21RU,18RGEU..RX6#

WATER OUTLET SIDE

 1
90467-37001

18RGEU..RX63

 2
96111-10430

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

21RU,18RGEU..RX6#

WATER OUTLET SIDE

 1
90467-37001

18RGEU..RX63

 2
96111-10430

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

21RU,18RGEU..RX6#

WATER OUTLET SIDE

 1
90467-37001

18RGEU..RX63

 2
96111-10430

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16572-34070

18RGEU..RX63

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-49062

18RGEU..RX63

WATER PUMP SIDE

 1
96111-10460

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-49062

18RGEU..RX63

WATER PUMP SIDE

 1
96111-10460

21RU,18RGEU..RX6#

RADIATOR SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-34100

21RU,18RGEU..RX6#

 1
16712 - SHROUD, FAN, NO.2
16712-34070

21RU,18RGEU..RX6#

W/COOLER

 1
Common parts
90179-06070
90468-06013
91611-40820
91611-40865
91611-41032
91651-40618
91655-40616
91655-40818
Linked diagrams
8401
