RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)18RGEU

Click highlighted areas on diagram

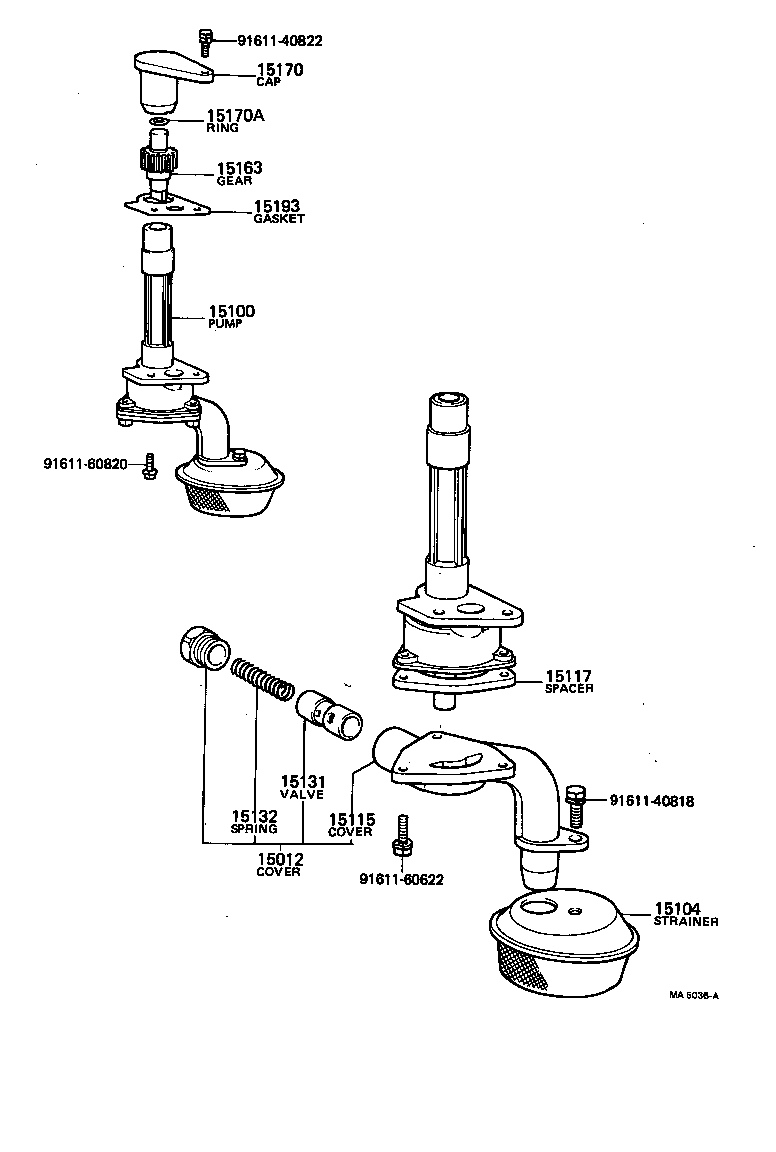

diagram 15012 15100 15104 15115 15117 15131 15132 15163 15170 15170A 15193 9161140818 9161140822 9161160622 9161160820
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-36011

18RGEU..RX63

 1
15100 - PUMP ASSY, OIL
15100-88270

18RGEU..RX63

 1
15104 - STRAINER SUB-ASSY, OIL
15104-36010

18RGEU..RX63

 1
15115 - COVER, OIL PUMP
15115-36011

18RGEU..RX63

 1
15117 - SPACER, OIL PUMP BODY
15116-88211

18RGEU..RX63

 1
15131 - VALVE, OIL PUMP RELIEF
15131-41010

18RGEU..RX63

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

18RGEU..RX63

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-88210

18RGEU..RX63

 1
15170 - CAP, OIL PUMP DRIVE SHAFT
15171-88210

18RGEU..RX63

 1
15170A - RING, O, OIL PUMP DRIVE SHAFT
90072-30111

18RGEU..RX63

 1
15193 - GASKET, OIL PUMP
15193-33011

18RGEU..RX63

 1
Common parts
91611-40818
91611-40822
91611-60622
91611-60820
