RX63-DEMZF (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 18RGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)18RGEU

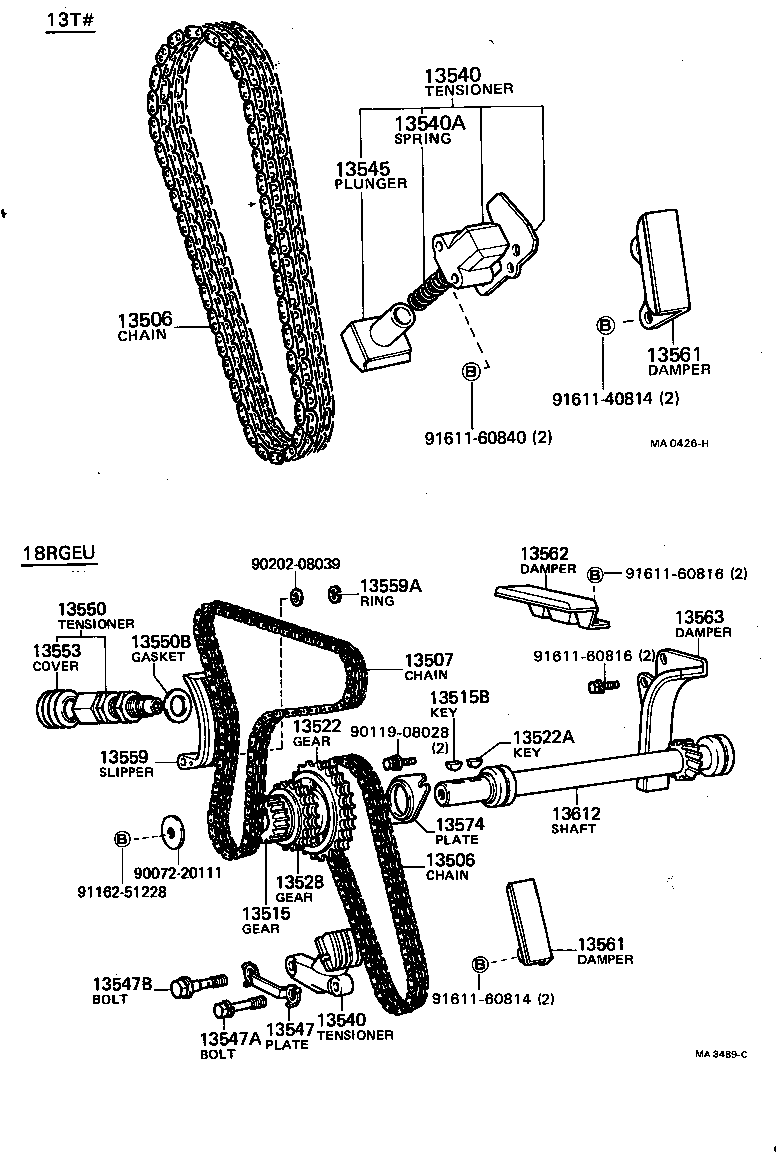

Click highlighted areas on diagram

MA0426F,MA3489B

diagram 13506 13506 13507 13515 13515B 13522 13522A 13528 13540 13540 13540A 13545 13547 13547A 13547B 13550 13550B 13553 13559 13559A 13561 13561 13562 13563 13574 13612 9007220111 9011908028 9020208039 9116251228 9161140814 9161160814 9161160816 9161160816 9161160840
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-33010

18RGEU..RX63

 1
13506-33010

18RGEU..RX63

 1
13506 - CHAIN SUB-ASSY
13506-33010

18RGEU..RX63

 1
13506-33010

18RGEU..RX63

 1
13507 - CHAIN SUB-ASSY, NO.2
13507-88210

18RGEU..RX63

 1
13507-88210

18RGEU..RX63

 1
13515 - GEAR, DISTRIBUTOR DRIVE
13515-88211

18RGEU..RX63

 1
13515-88211

18RGEU..RX63

 1
13515B - KEY, WOODRUFF(FOR DISTRIBUTOR DRIVE GEAR)
90280-05010

18RGEU..RX63

 1
90280-05010

18RGEU..RX63

 1
13522 - GEAR, PUMP DRIVE SHAFT
13522-33010

18RGEU..RX63

N=36

 1
13522-33010

18RGEU..RX63

N=36

 1
13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
90280-05001

18RGEU..RX63

 1
90280-05001

18RGEU..RX63

 1
13528 - GEAR, CAMSHAFT DRIVE
13528-33010

18RGEU..RX63

N=24

 1
13528-33010

18RGEU..RX63

N=24

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-33014

18RGEU..RX63

 1
13540-33014

18RGEU..RX63

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-33014

18RGEU..RX63

 1
13540-33014

18RGEU..RX63

 1
13547 - PLATE, TENSIONER BOLT LOCK, NO.1
13547-33010

18RGEU..RX63

 1
13547-33010

18RGEU..RX63

 1
13547A - BOLT(FOR TENSIONER LOCK PLATE SET)
90119-08013

18RGEU..RX63

 1
90119-08013

18RGEU..RX63

 1
13547B - BOLT, UNION(FOR TENSIONER LOCK PLATE)
90401-10049

18RGEU..RX63

 1
90401-10049

18RGEU..RX63

 1
13550 - TENSIONER ASSY, CHAIN, NO.2
13550-88270

18RGEU..RX63

 1
13550-88270

18RGEU..RX63

 1
13550B - GASKET, CHAIN TENSIONER, NO.2
90430-22135

18RGEU..RX63

 1
90430-22135

18RGEU..RX63

 1
13553 - COVER, CHAIN TENSIONER DUST
13553-88210

18RGEU..RX63

 1
13553-88210

18RGEU..RX63

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-88270

18RGEU..RX63

 1
13559-88270

18RGEU..RX63

 1
13559A - RING, E(FOR CHAIN TENSIONER SLIPPER)
96160-00700

18RGEU..RX63

 1
96160-00700

18RGEU..RX63

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-34010

18RGEU..RX63

 1
13561-34010

18RGEU..RX63

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-34010

18RGEU..RX63

 1
13561-34010

18RGEU..RX63

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-88210

18RGEU..RX63

 1
13562-88210

18RGEU..RX63

 1
13563 - DAMPER, CHAIN VIBRATION, NO.3
13563-88250

18RGEU..RX63

 1
13563-88250

18RGEU..RX63

 1
13574 - PLATE, PUMP DRIVE SHAFT
13574-33010

18RGEU..RX63

 1
13574-33010

18RGEU..RX63

 1
13612 - SHAFT, PUMP DRIVE
13612-88270

18RGEU..RX63

 1
13612-88270

18RGEU..RX63

 1
Common parts
90072-20111
90119-08028
90202-08039
91162-51228
91611-40814
91611-60814
91611-60816
91611-60840
