RX60-DTPNS (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)21RU,18RGEU

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 28133 28136 28138 28140 28150 28153 28160 28162 28163 28163A 28181 9009900926 9009901467 9009904921 9009905148 9009912405 9011610021 9017910125 9161160812 9161161030 9411040800 9412040800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28011-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28100 - STARTER ASSY
28100-34070

21RU,18RGEU..RX6#

12V 1.0KW,12V 1.0KW

 1
28100-37010

21RU,18RGEU..RX6#

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-37010

21RU,18RGEU..RX6#

12V 0.8KW

 1
28110-40061

21RU,18RGEU..RX6#

12V 1.0KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

21RU,18RGEU..RX6#

12V 1.0KW

 1
28111-51011

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-15011

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28113-41011

21RU,18RGEU..RX6#

12V 1.0KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28120-15010

21RU,18RGEU,MTEU..MX61,RX6#

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37010

21RU,13TU,18RGEU..RX6#,TX60

12V 0.8KW

 1
28130-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

21RU,18RGEU..RX6#

STD,12V 1.0KW

 1
90099-10040

21RU,18RGEU..RX6#

U/S 0.5,12V 1.0KW

 1
90099-10039

21RU,18RGEU..RX6#

U/S 0.3,12V 1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-40010

21RU,18RGEU..RX6#

12V 1.0KW

 1
28132-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-40010

21RU,18RGEU..RX6#

12V 1.0KW

 1
28136-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-40010

21RU,18RGEU..RX6#

12V 1.0KW

 1
28138-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28140-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-15011

21RU,18RGEU..RX6#

12V 0.8KW

 1
28150-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28153 - COVER, MAGNET SWITCH
28159-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28160 - ARMATURE ASSY, STARTER
28160-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28160-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28162 - SPRING, STARTER BRAKE
28162-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28162-41022

21RU,18RGEU..RX6#

12V 1.0KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

21RU,18RGEU..RX6#

12V 0.8KW,1.0KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

21RU,18RGEU..RX6#

12V 0.8KW,1.0KW

 1
28181 - TERMINAL, STARTER
28181-20011

21RU,18RGEU..RX6#

12V 0.8KW,1.0KW

 1
Common parts
90099-00926
90099-01467
90099-04921
90099-05148
90099-12405
90116-10021
90179-10125
91611-60812
91611-61030
94110-40800
94120-40800
94511-00800

(8009- )L,2LTE

Click highlighted areas on diagram

diagram 28011 28100 28110 28118 28119 28120 28130 28137 28139 28140 28150 28160 28160A 28160A 28165 28191 28222 28228 28229 28252 9009221001 9009221001 9009900138 9009901436 9009902325 9009904297 9009912009 9011912018 9011912018 9017908026 9321915008 9331915008 9411551200 9451100500 9451100600 9451100600 9451101000 9461210800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28011-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28100 - STARTER ASSY
28100-34070

21RU,18RGEU..RX6#

12V 1.0KW,12V 1.0KW

 1
28100-37010

21RU,18RGEU..RX6#

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-37010

21RU,18RGEU..RX6#

12V 0.8KW

 1
28110-40061

21RU,18RGEU..RX6#

12V 1.0KW

 1
28119 - COVER, STARTER END FRAME
28199-77090

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28120-15010

21RU,18RGEU,MTEU..MX61,RX6#

12V 0.8KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37010

21RU,13TU,18RGEU..RX6#,TX60

12V 0.8KW

 1
28130-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28140-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-15011

21RU,18RGEU..RX6#

12V 0.8KW

 1
28150-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28160-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
Common parts
90092-21001
90099-00138
90099-01436
90099-02325
90099-04297
90099-12009
90119-12018
90179-08026
93219-15008
93319-15008
94115-51200
94511-00500
94511-00600
94511-01000
94612-10800

(8009-8208)21RU,18RGEU

Click highlighted areas on diagram

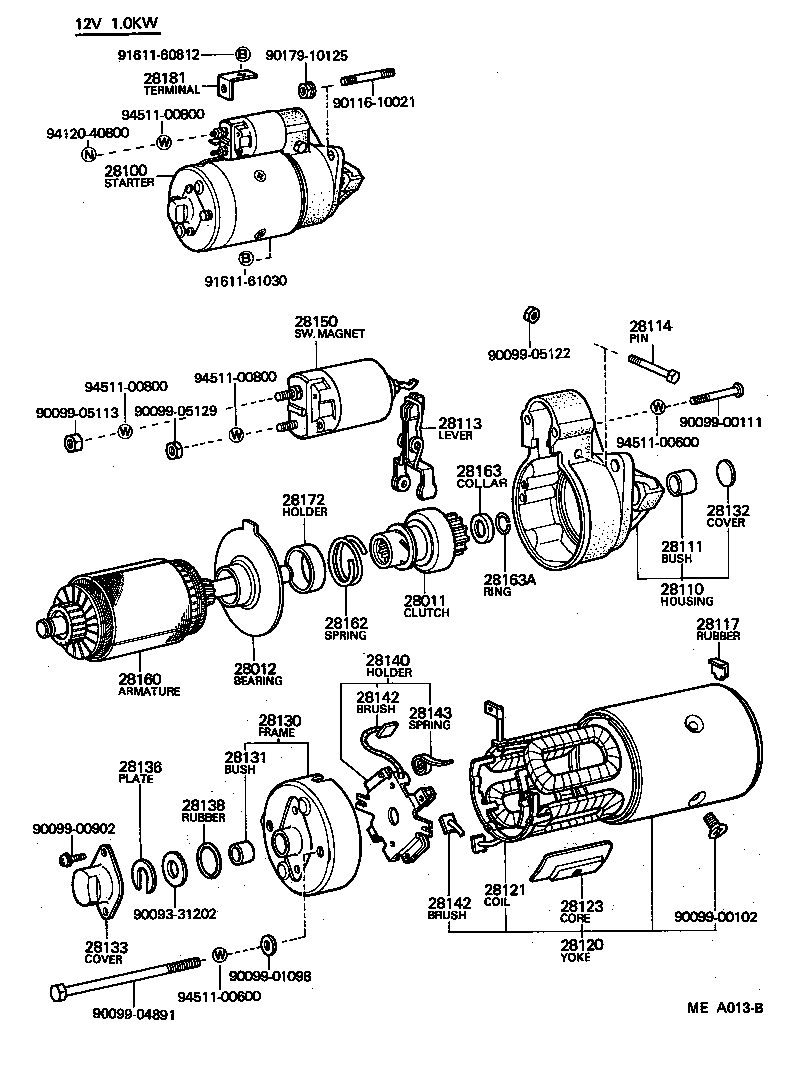

diagram 28011 28012 28100 28110 28111 28113 28114 28117 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28163 28163A 28172 28181 9009331202 9009900102 9009900111 9009900902 9009901098 9009904891 9009905113 9009905122 9009905129 9011610021 9017910125 9161160812 9161161030 9412040800 9451100600 9451100600 9451100800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28011-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28012 - BEARING SUB-ASSY, CENTER
28126-33021

21RU,18RGEU..RX6#

12V 1.0KW

 1
28100 - STARTER ASSY
28100-34070

21RU,18RGEU..RX6#

12V 1.0KW,12V 1.0KW

 1
28100-37010

21RU,18RGEU..RX6#

12V 0.8KW,12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-37010

21RU,18RGEU..RX6#

12V 0.8KW

 1
28110-40061

21RU,18RGEU..RX6#

12V 1.0KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

21RU,18RGEU..RX6#

12V 1.0KW

 1
28111-51011

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-15011

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28113-41011

21RU,18RGEU..RX6#

12V 1.0KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-41011

21RU,18RGEU..RX6#

12V 1.0KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28120 - YOKE ASSY, STARTER
28120-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28120-15010

21RU,18RGEU,MTEU..MX61,RX6#

12V 0.8KW

 1
28121 - COIL, STARTER FIELD
28121-42020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28123 - CORE, STARTER POLE
28123-41020

21RU,18RGEU..RX6#

12V 1.0KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-37010

21RU,13TU,18RGEU..RX6#,TX60

12V 0.8KW

 1
28130-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28131 - BUSH, COMMUTATOR END FRAME
28131-20010

21RU,18RGEU..RX6#

STD,12V 1.0KW

 1
90099-10040

21RU,18RGEU..RX6#

U/S 0.5,12V 1.0KW

 1
90099-10039

21RU,18RGEU..RX6#

U/S 0.3,12V 1.0KW

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

21RU,18RGEU..RX6#

12V 1.0KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-40010

21RU,18RGEU..RX6#

12V 1.0KW

 1
28132-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-40010

21RU,18RGEU..RX6#

12V 1.0KW

 1
28136-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-40010

21RU,18RGEU..RX6#

12V 1.0KW

 1
28138-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-25020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28140-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28142 - BRUSH, STARTER
28142-25011

21RU,18RGEU..RX6#

12V 1.0KW,HOLDER

 2
28142-25020

21RU,18RGEU..RX6#

12V 1.0KW,YOKE

 2
28142 - BRUSH, STARTER
28142-25011

21RU,18RGEU..RX6#

12V 1.0KW,HOLDER

 2
28142-25020

21RU,18RGEU..RX6#

12V 1.0KW,YOKE

 2
28143 - SPRING, STARTER BRUSH
28143-40040

21RU,18RGEU..RX6#

12V 1.0KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-15011

21RU,18RGEU..RX6#

12V 0.8KW

 1
28150-34070

21RU,18RGEU..RX6#

12V 1.0KW

 1
28160 - ARMATURE ASSY, STARTER
28160-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28160-41020

21RU,18RGEU..RX6#

12V 1.0KW

 1
28162 - SPRING, STARTER BRAKE
28162-15010

21RU,13TU,18RGEU,MTEU..MX61,RX6#,TX60

12V 0.8KW

 1
28162-41022

21RU,18RGEU..RX6#

12V 1.0KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

21RU,18RGEU..RX6#

12V 0.8KW,1.0KW

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

21RU,18RGEU..RX6#

12V 0.8KW,1.0KW

 1
28172 - HOLDER, STARTER SPRING
28172-41021

21RU,18RGEU..RX6#

12V 1.0KW

 1
28181 - TERMINAL, STARTER
28181-20011

21RU,18RGEU..RX6#

12V 0.8KW,1.0KW

 1
Common parts
90093-31202
90099-00102
90099-00111
90099-00902
90099-01098
90099-04891
90099-05113
90099-05122
90099-05129
90116-10021
90179-10125
91611-60812
91611-61030
94120-40800
94511-00600
94511-00800
