RX60-DTPNS (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )L,2LTE

Click highlighted areas on diagram

diagram 19850 19850B 19856 19871
Part # Description Qty Price

(8009-8208)21RU

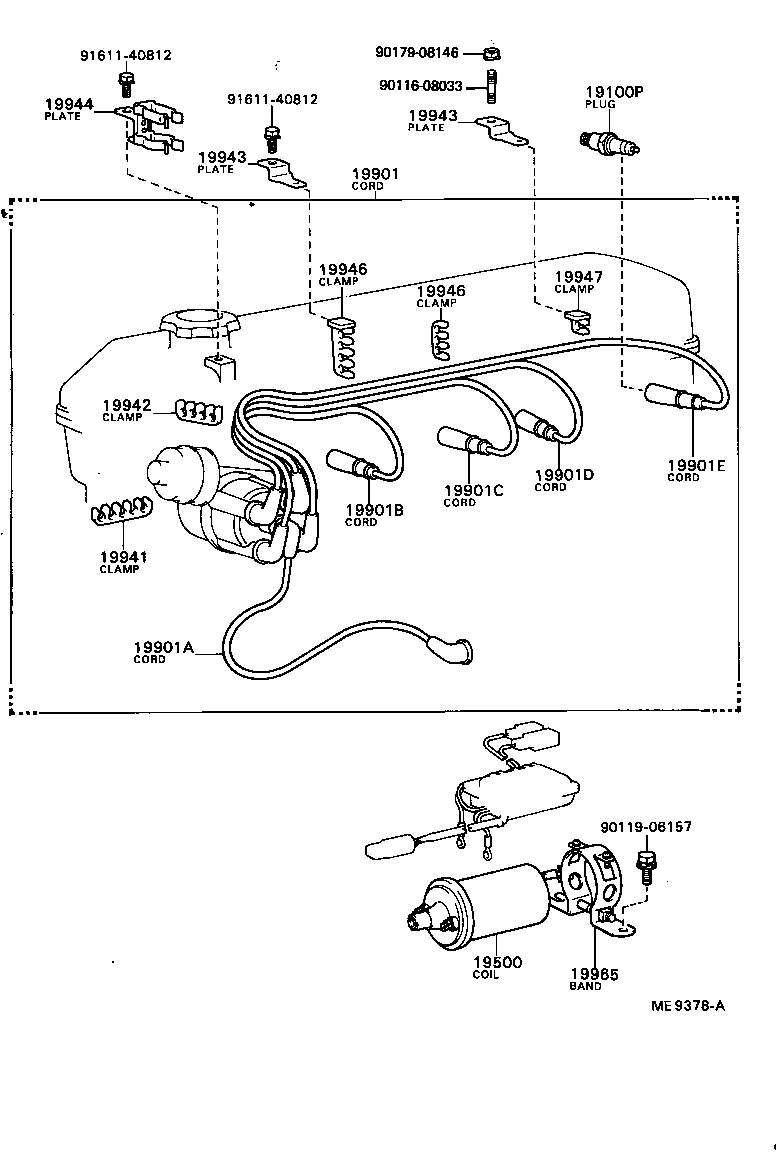

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19943 19943 19944 19946 19946 19947 19965 9011608033 9011906157 9017908146 9161140812 9161140812
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

21RU..RX60

W16EXR−U,W16EXR-U(DENSO)

 6
90919-01102

21RU..RX60

BPR5EY,BPR5EY(NGK)

 6
19500 - COIL ASSY, IGNITION
90919-02117

21RU..RX60

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90999-99051

21RU..RX60

 1
19901A - CORD, COIL RESISTIVE
90919-13114

21RU..RX60

 1
90919-13187

21RU..RX60

 1
90919-13114

21RU..RX60

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

21RU..RX60

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

21RU..RX60

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

21RU..RX60

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

21RU..RX60

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

21RU..RX60

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

21RU..RX60

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38011

21RU..RX60

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38011

21RU..RX60

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-38010

21RU..RX60

 1
19944-35010

21RU..RX60

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00060

21RU..RX60

FR

 1
90464-00144

21RU..RX60

RR

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00060

21RU..RX60

FR

 1
90464-00144

21RU..RX60

RR

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

21RU..RX60

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03074

21RU..RX60

 1
Common parts
90116-08033
90119-06157
90179-08146
91611-40812
