RX60-DTPES (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 21RU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)21RU,13TU

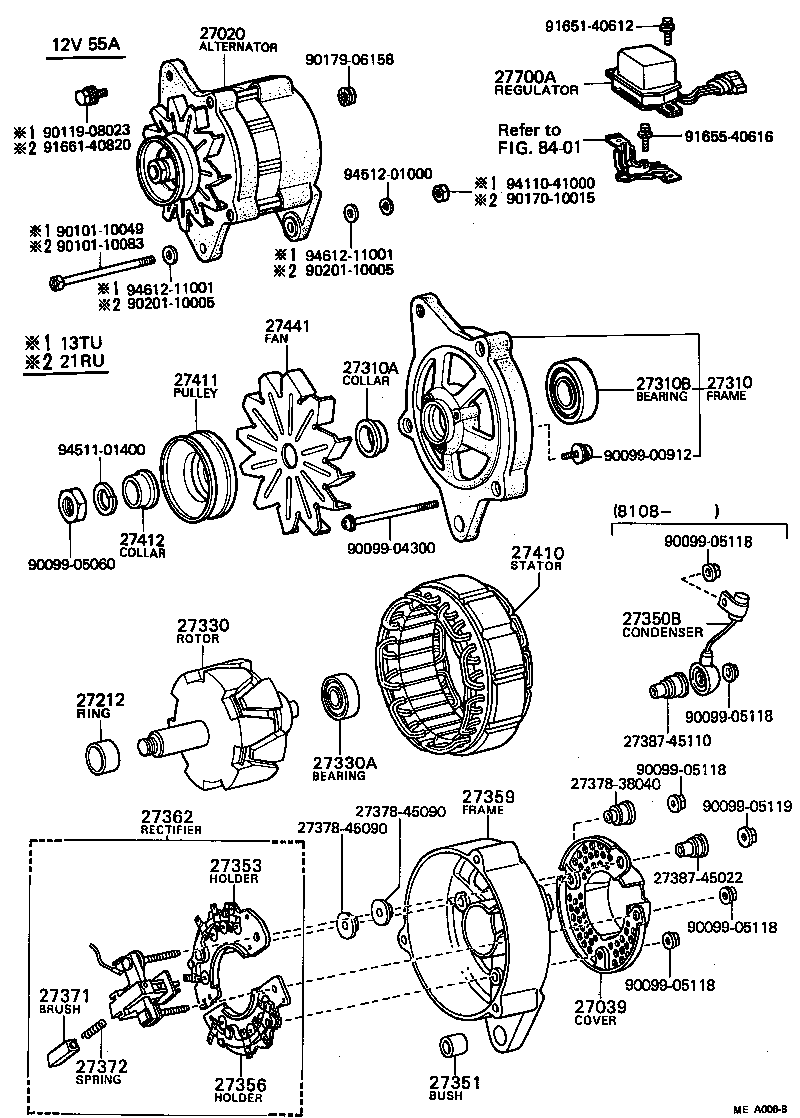

Click highlighted areas on diagram

diagram 27020 27039 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27353 27356 27359 27362 27371 27372 2737838040 2737845090 2737845090 2738745022 2738745110 27410 27411 27412 27441 27700A 8401 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9010110083 9011908023 9017010015 9017906158 9020110005 9020110005 9165140612 9165540616 9166140820 9411041000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-34021

21RU,13TU..RX60,TX60

12V 55A,12V 55A

 1
27039 - COVER, ALTERNATOR REAR END
27039-45110

21RU,13TU..RX60,TX60

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-34050

21RU,13TU..RX60,TX60

12V 55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45070

21RU,13TU..RX60,TX60

12V 55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

21RU,13TU,18RGEU,1SU,MTEU..MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-34021

21RU,13TU..RX60,TX60

12V 55A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-34021

21RU,13TU..RX60,TX60

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-24100

21RU,13TU..RX60,TX60

12V 55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-34021

21RU,13TU..RX60,TX60

12V 55A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-45120

21RU,13TU..RX60,TX60

12V 55A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

21RU,13TU..RX60,TX60

12V 55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

21RU,13TU..RX60,TX60

12V 55A

 1
27441 - FAN, ALTERNATOR
27441-34030

21RU,13TU..RX60,TX60

12V 55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-27050

21RU,13TU..RX60,TX60

12V 55A

 1
Common parts
27378-38040
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10083
90119-08023
90170-10015
90179-06158
90201-10005
91651-40612
91655-40616
91661-40820
94110-41000
94511-01400
94512-01000
94612-11001
Linked diagrams
8401
